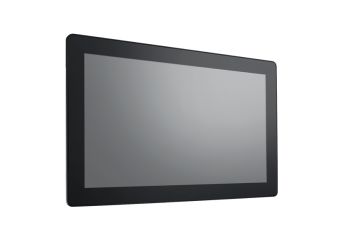

UTC-115 features an all-in-one computing system which equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas.
UTC-115HP-WWW1F |
UTC-115HP-NCN1E |
UTC-115HP-NCN1E |
||
System |
CPU |
Intel® Core™ i5-8365UE |
||
RAM |
4 GB |
4 GB |
8GB DDR4 |
|
Storage |
128G SSD |
|||
Network (LAN) |
2 x Gigabit Ethernet (RJ-45) |
|||
I/O |
1 x COM (RS-232); 1 x COM (RS-232/422/485) 2 x USB 2.0; 4 x USB 3.0 1 x HDMI 1 x Line-out, 1 x Mic-in 2 x 2W Speaker |
|||
Expansion |
1 x M.2 key2230, 1 x M.2 key2242 |
|||
OS Support |
OS Support |
Windows 10 IoT Enterprise 64bit |
||
Power Supply |
DC Input Rating |
12 V/7 A (84 W ITE Adapter) |
12 V/7 A (84 W ITE Adapter) |
12 V/7 A (84 W ITE Adapter) |
LCD |
Resolution |
FHD (1920 x 1080) |
HD (1366 x 768) |
FHD (1920 x 1080) |
Brightness (cd/m²) |
400 cd/m² |
250 cd/m² |
400 cd/m² |
|
Touch Screen |
Type |
Projected Capacitive |
||
Controller |
USB interface |
|||
Environment |
Operating temperature |
0 - 35°C |
||
Relative Humidity |
10 - 95% @ 40 °C (non-condensing) |
|||
Shock |
Shock 10G peak acceleration(11 msec. duration) |
|||
Vibration |
0,5 G |
|||
Front Panel Protection |
IP 65 Compliant |
