UTC-315D

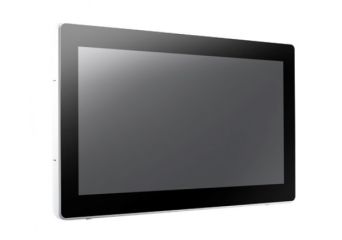

15.6" Ubiquitous Touch Computer with Intel® Celeron J1900
- Low power and fanless system design
- Embedded Intel Celeron® J1900 processor
- Built-in 4 GB RAM
- 15.6" monitor with 16:9 widescreen display
- IP65-rated front panel for water and dust resistance
- Supports both landscape and portrait screen orientations
- VESA 75 mm standard mounting holes for varied mounting demands
- Detachable frame design for panel mount applications
- Support DeviceOn/iService software for remote device management
- Power supply included
- No disk and operating system included
Price from €1,216.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUTC-315DP-ATB0E15.6" PCap,J1900,4G RAM,BlackOut of stock Warranty: €1,216.00€1,495.68Login to check your price UTC-315DP-ATB0E15.6" PCap,J1900,4G RAM,BlackAvailability: Out of stockNet price:€1,216.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUTC-315DR-ATB0E15.6" Res,J1900,4G RAM,BlackIn stockWarranty: €1,216.00€1,495.68Login to check your price UTC-315DR-ATB0E15.6" Res,J1900,4G RAM,BlackAvailability:In stockNet price:€1,216.00
Description
UTC-315 is the multi-purpose all-in-one computing system which equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. With the removable frame, the system also could fulfill industries or control system applications with panel mounting design. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.
- Low power and fanless system design
- Built in Intel Celeron® J1900
- 15.6" monitor with 16:9 widescreen display
- IP65-rated front panel for water and dust resistance
- Supports both landscape and portrait screen orientations
- VESA 75 mm standard mounting holes for varied mounting demands
- Detachable frame design for panel mount applications
Technical Specification
| CPU | Intel Celeron J1900 2,0 GHz 4 core |
| Memory | Up to 8 GB DDR3L |
| Screen | 15,6" TFT LCD, resolution 1366 X 768 Optional Analog Resistive Touchscreen or Projected Capacitive Touch Panel IP65 |
| HDD | 1 x 2,5" SATA mSATA (shared with miniPCIe) |
| LAN | 2 x Gigabit Ethernet |
| Ports |
1 x RS-232 Audio: Line-out, Mic-in |
| Stereo Speaker | 2 x 1 W |
| Bus expansion | 1 x miniPCIe (with mSATA support) |
| Mounting | VESA 100 mm |
| Supported OS | Windows 7/8/10 Android 4.4 Linux Ubuntu 16.04 |
| Power Supply | 12 VDC, 7 A Typical 32 W, Max. 70 W |
| Environmental Specifications | Temperature 0 ~ 40°C Humidity 10 ~ 95% @ 40°C non-condensing |
