UTC-515IT

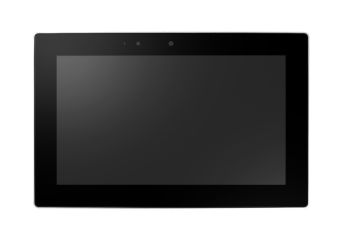

15.6" Ubiquitous Touch Computer (IP66/69K) with Intel® Core™ i5-1145G7E
- Low-power, fanless system design
- Wide operating temperature range (-10 ~ 50 °C)
- Built-in Intel Core i5-1145G7E
- Built-in 128G TLC SSD, 8 GB RAM
- 15.6" monitor with 16:9 widescreen display
- IT66/69K for full system
- M12 for all I/O ports
- Supports both landscape and portrait screen orientations
- Anit-corrosion enclosure stainless chassis
- Optional Full HD (1920 x 1080) LCD panel
- No operating system and power supply included
Price from €4,271.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUTC-515IT-ATB0E15.6" PCT.T/S with i5-1145G7E,8G, 512G, IP66/69KOut of stock Warranty: €4,271.00€5,253.33Login to check your price UTC-515IT-ATB0E15.6" PCT.T/S with i5-1145G7E,8G, 512G, IP66/69KAvailability: Out of stockNet price:€4,271.00
Technical Specification
| Processor | Intel Core i5-1145G7E 1.50 GHz (Quad-core) |
| RAM | Built-in 8 GB RAM, up to 64 GB |
| Display | 15.6" TFT LCD Projected Capacitive Touchscreen IP66/69K full system |
| Storage | 1 x 2.5 SATA |
| LAN | 2 x Gigabit Ethernet |
| Ports | 2 x RS-232 COM (RS-422/485)* 2 x USB 2.0/ 1 x USB 3.0 2 x Gigabit Ethernet (RJ-45) (M12 waterproof connector) |
| Expansions | 1 x M.2 E-Key 2230(PCIe x 1, USB2.0, I2C) 1 x M.2 B-Key 3042 (USB2.0) w/ Nano-SIM 1 x M.2 M-Key 2280 (PCIe x4 Gen.4 for PCIe SSD), optional SATA |
| Mounting | VESA 100 x 100 mm |
| OS Support | Win 10 IoT Enterprise Linux Ubuntu 20.04 |
| Power supply |
DC input 24V / 5A |
| Environment | Temperature -10 ~ 50°C Humidity 10 ~ 95% @ 40°C non-condensing |
