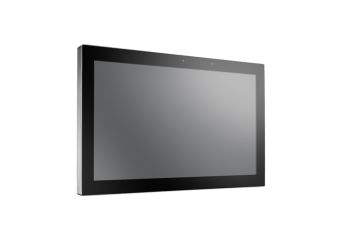

UTC-520FT

21.5" Ubiquitous Touch Computer (IP66&69K) with Intel® Core™ i5-6300U

Manufacturer: Advantech
Manufacturer: Advantech
  • Low power and fanless system design
  • Wide operating temperature range (-10 ~ 50 °C)
  • Built-in Intel® Core™ i5-6300U
  • 21.5" monitor with 16:9 widescreen display
  • IP65-rated for full system
  • M12 for all I/O ports
  • Anti-corrosion enclosure stainless chassis
  • Quickly swappable storage slot (optional)
  • Options: waterproof WiFi / built-in camera / LED indicator / Light sensor
Product out of stock

Free shipping from €500

Promocja cenowa na model HDR-15-5

Description

UTC-520 tough series features an all-in-one computing system equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas.

Technical Specification



UTC-520GT-ATB0E

UTC-520FT-ATB0E

System

CPU

Intel® Pentium® N4200

Intel® Skylake Core™ i5-6300U

RAM

1 x 204 pin SO-DIMM DDR3L 1867 MHz up to 8GB

2 x 204 pin SO DIMM DDR3L 1600MHz up to 16 GB

HDD

1 x 2.5 internal SATA HDD bay

Network (LAN)

2 x Gigabit Ethernet ports (Supports Wake on LAN)

I/O

2 x RS-232 COM (RS-422/485)*

2 x USB 2.0 / 1 x USB 3.0

2 x Gigabit Ethernet (RJ-45)

(M12 waterproof connector)

OS Support

OS Support

Win 10 IoT Enterprise

Android 8.1

Linux Ubuntu 18.04

Power Supply

Input Rating

1DC input 24V / 5A

LCD

Resolution

1920 x 1080

Brightness (cd/m²)

250 cd/m² (Optional 400 cd/m² lub 1200 cd/m²)

Touch Screen

Type

Projected Capacitive. Glass Panel (7H Hardness)

Controller

USB interface

Environment

Operating Temperature

-10 - 50°C

Relative Humidity

10 - 95% @ 40 °C (non-condensing)

Shock

5G peak acceleration (11 msec. duration)

Vibration

0,5 G

System Protection

IP65 Full System
