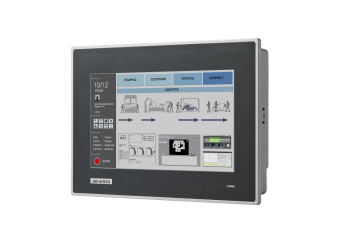

WOP-3070T

With brand-new ID design, the WebOP-3070T provides stringent standards required in the automation market. Advantech offers the WebOP-3070T with Cortex™-A8 processor which consumes minimum power without sacrificing performance. The WebOP-3070T supports a variety of LCD sizes from 4.3” to 15” for different applications involving the use of PLCs, motion/thermal controllers, inverters and sensors. It’s also provided with a wide operating temperature range to fulfill the requirements of harsh environments.

• RISC 32 bits TI ARM® Cortex™-A8 processor
• Various LCD sizes (7", 8", 10.1", 12", 15")
• Full line LED BL TFT LCD with 50K life time
• Embedded Microsoft® WinCE 6.0 OS
• Supports WebOP Designer HMI Runtime development tool
• Backup Memory FRAM in 128KB(64 words) without battery concern
• Power & Terminal I/O ports isolation protection
• -20°C ~ 60°C wide operating temperature range
• Support CANopen library registered by CiA 301 V4.02
• RS-422/RS-485/CAN terminal I/O ports support Termination Resistor 120Ω
• Front panel IP66 compliant
• Die-cast aluminum alloy front bezel
