Elmatic EagleEYE 20 Compact

Rack mount or desktop computer. Dedicated to simple CCTV systems involving up to 20 cameras.

Compact fanless enclosure
Number of channels: up to 20
Up to 36TB of storage (2 drives mounted inside)

Product out of stock

Free shipping from €300

Promocja cenowa na model HDR-15-5

Product intended for professional use only

Description
Technical Specification
Download
Recommended Products

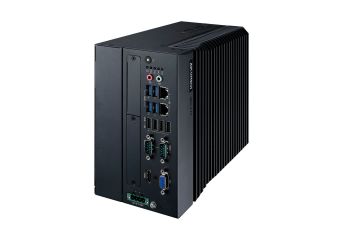

Elmatic EagleEYE 20 Compact

Description

EagleEYE 20 Compact is a high-performance server designed to handle up to 20 channels, with a maximum disk capacity of up to 36 TB. Based on the MIC-770 V3 computer, it features a fanless Box PC chassis with dimensions of 119 x 192 x 230 mm. The device can be mounted on a desk, on a wall, and optionally on a DIN rail.

The server runs on a Pentium G7400 processor, supported by 16 GB of RAM and integrated graphics. It has two video ports: 1x VGA and 1x HDMI, as well as two RJ45 network ports. The operating system is Windows 10 IoT 2021 LTSC.

EagleEYE 20 Compact is equipped with a 256 GB M.2 NVMe system disk and two internal 3.5” storage disks. It supports RAID 0/1 configurations. Power is supplied by a 150W power supply.

Technical Specification

General Information
Number of channels (max.recommended)	20
Disk capacity (max)	Up to 36TB
Chassis
Model	MIC-770V3W, 98R17520301
Format	Fnaless, Box PC
Dimensions	119 x 192 x 230 mm
Mounting	Desktop, wall-mount, DIN (optional)
Motherboard
Model	-
Processor	Pentium G7400
RAM	16 GB
Graphics	Integrated with processor
Video Ports	1x VGA, 1x HDMI
Ethernet	2 x RJ45
Operating System	Windows 10 IoT 2021 LTSC
Storage
System disk	256 GB (M.2 NVMe)
Storage	2x 3,5” (internal)
RAID	0/1 software
Power Supply
Power	150W
Power supply redundancy	No
