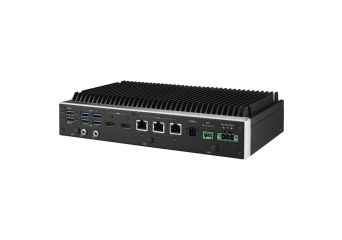

ELMATIC ETA 2251
Fanless BOX PC, Intel Core i5-1335UE, 16GB RAM, 512GB SSD, Windows 11 IoT
- 2x 2.5 GbE LAN, 1x GbE LAN
- 6x USB3.1
- 6x RS-232/422/485
- 8-bit Programmable DIO
- 2x CANBus
- 2x HDMI
- No power supply by default (see accessories)
High price? Log in and buy cheaper
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
ELMATIC ETA 2251
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddELMATIC ETA 2251BoxPC, i5-1335UE, 16GB, 512GB, Win11IoTOut of stock Warranty: €1,949.00€2,397.27Login to check your price ELMATIC ETA 2251BoxPC, i5-1335UE, 16GB, 512GB, Win11IoTAvailability: Out of stockNet price:€1,949.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddARK-2XXX series DIN Rail mount kitsOut of stock Warranty: €39.00€47.97Login to check your price ARK-2XXX series DIN Rail mount kitsAvailability: Out of stockNet price:€39.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAMK-V019EARK-2XXX series VESA mount kitsIn stockWarranty: €34.00€41.82Login to check your price AMK-V019EARK-2XXX series VESA mount kitsAvailability:In stockNet price:€34.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddFSP120-AHAN3Desktop PSU 120W, 12 VDC, 10.0AIn stockWarranty: €47.00€57.81Login to check your price FSP120-AHAN3Desktop PSU 120W, 12 VDC, 10.0AAvailability:In stockNet price:€47.00
Description
The ELMATIC ETA 2251 is a fanless Box PC equipped with an Intel Core i5-1335UE processor, 16 GB of RAM, and a 512 GB SSD. The device offers a wide range of I/O ports, including two 2.5 GbE LAN ports, one GbE LAN port, six USB 3.1 ports, six RS-232/422/485 ports, two HDMI ports, and two CANBus ports. Additionally, the computer features 8-bit programmable DIO. The operating temperature range is from -20°C to 60°C. Windows 11 IoT is included in the package.
Technical Specification
| Model | |||
| Model | ELMATIC ETA 2251 | ||
| CPU | |||
| CPU | Intel Core i5-1335UE | ||
| Memory | |||
| Memory | Built-in 16 GB SODDR5 | ||
| Storage | |||
| Slot 2,5" HDD | - | ||
| M.2 | Built-in 512GB M.2 2280 SSD | ||
| Slot mSATA | - | ||
| Expansions | |||
| Slot M.2 | - | ||
| Slot miniPCIe | 1x Full-size | ||
| I/O | |||
| DisplayPort | - | ||
| HDMI | 2 | ||
| Audio | Mic in, Line out | ||
| Gigabit Ethernet | 2 x 2.5 GbE LAN 1 x GbE LAN |
||
| USB 3.1 | 6 | ||
| USB 2.0 | - | ||
| Serial Ports | 6 x RS-232/422/485 | ||
| GPIO | 8-bit Programmable DIO | ||
| CANbus | 2 | ||
| Operating System | |||
| Operating System | Windows 11 IoT LTSC included | ||
