LRS-35
Enclosed power supply: LRS-35-5, LRS-35-12, LRS-35-15, LRS-35-24, LRS-35-36, LRS-35-48
- Universal AC input / Full range
- Withstand 300VAC surge input for 5 second
- No load power consumption<0.2W
- Miniature size and 1U low profile
- High operating temperature up to 70ºC
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Compliance to IEC/EN 60335-1 (PD3) and lEC/EN61558-1, -2-16 for household appliances
- Operating altitude up to 5000 meters (Note.8)
- Withstand 5G vibration test
- High efficiency, long life and high reliability
- LED indicator for power on
- Over voltage category III
- 100% full load burn-in test
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-35-5switching power supply 35W 5V 7AIn stockWarranty: €10.60€13.04Login to check your price LRS-35-5switching power supply 35W 5V 7AAvailability:In stockNet price:€10.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-35-12switching power supply 35W 12V 3AIn stockWarranty: €9.80€12.05Login to check your price LRS-35-12switching power supply 35W 12V 3AAvailability:In stockNet price:€9.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-35-15switching power supply 35W 15V 2.4AIn stockWarranty: €9.80€12.05Login to check your price LRS-35-15switching power supply 35W 15V 2.4AAvailability:In stockNet price:€9.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-35-24switching power supply 35W 24V 1.5AIn stockWarranty: €9.60€11.81Login to check your price LRS-35-24switching power supply 35W 24V 1.5AAvailability:In stockNet price:€9.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-35-36switching power supply 35W 36V 1AOut of stock Warranty: €9.80€12.05Login to check your price LRS-35-36switching power supply 35W 36V 1AAvailability: Out of stockNet price:€9.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-35-48switching power supply 35W 48V 0.8AOut of stock Warranty: €9.80€12.05Login to check your price LRS-35-48switching power supply 35W 48V 0.8AAvailability: Out of stockNet price:€9.80
Description

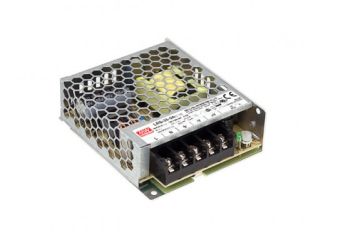

LRS-35 series is a 35W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 5V, 12 V, 15V, 24V, 36V and 48V.
In addition to the high efficiency up to 89%, the design of metallic mesh case enhances the heat dissipation of LRS-35 that the whole series operates from -30ºC through 70ºC under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.2W), it allows the end system to easily meet the worldwide energy requirement. LRS-35 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as TUV EN62368-1, EN60335-1, EN61558-1/-2-16, UL62368-1 and GB4943. LRS-35 series serves as a high price-to-performance power supply solution for various industrial applications.
Available models:
- 5V: LRS-35-5
- 12V: LRS-35-12
- 15V: LRS-35-15
- 24V: LRS-35-24
- 36V: LRS-35-36
- 48V: LRS-35-48
Technical Specification
LRS-35: 35-38.4W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| LRS-35-5 | 5V, 0~7.0A | +/-2% | 80mV | 82% | 99x82x30mm |
| LRS-35-12 | 12V, 0~3.0A | +/-1% | 120mV | 86% | 99x82x30mm |
| LRS-35-15 | 15V, 0~2.4A | +/-1% | 120mV | 86% | 99x82x30mm |
| LRS-35-24 | 24V, 0~1.5A | +/-1% | 150mV | 88% | 99x82x30mm |
| LRS-35-36 | 36V, 0~1A | +/-1% | 120mV | 88% | 99x82x30mm |
| LRS-35-48 | 48V, 0~0.8A | +/-1% | 200mV | 88% | 99x82x30mm |
