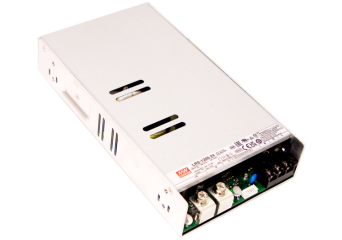

LRS-1200
Low Profile Economical Enclosed Type Power Supply with 1200W power
- AC input 180~305Vac input
- Global certificates in multi-fields (ITE 62368-1 Industrial 61558-1/-2-16)
- Compact size with low profile(17W/inch)
- 150% peak power @5s
- High effciency up to 94%
- Built-in constant current limiting circuit
- Protections: Short circuit / Overload /
Over voltage / Over temperature - Forced air cooling,cooling fan speed control
- Built-in DC OK/Remote Control/Remote Sense
- -30~+70°C wide range operation temperature
- Over voltage category(OVC Ill)
- Operating altitude up to 5000 meters
- Conformal coating
- 3 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
LRS-1200
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-1200-12switching power supply 1104W 12V 125AOut of stock Warranty: €123.80€152.27Login to check your price LRS-1200-12switching power supply 1104W 12V 125AAvailability: Out of stockNet price:€123.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-1200-24switching power supply 1200W 24V 67AOut of stock Warranty: €123.80€152.27Login to check your price LRS-1200-24switching power supply 1200W 24V 67AAvailability: Out of stockNet price:€123.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-1200-48switching power supply 1200W 48V 33.5AOut of stock Warranty: €123.80€152.27Login to check your price LRS-1200-48switching power supply 1200W 48V 33.5AAvailability: Out of stockNet price:€123.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-1200-36switching power supply 1199W 36V 44.5AOut of stock Warranty: €123.80€152.27Login to check your price LRS-1200-36switching power supply 1199W 36V 44.5AAvailability: Out of stockNet price:€123.80
Description
LRS-1200 series is a 1200W single-output enclosed type economical power supply with 41mm of low profiledesign. Adopting the input of 180~ 305Vac , the entire series provides an output voltage line of 12V, 24V, 36Vand 48V. In addition to the high efficiency up to 94%, with the built-in long life fan LRS-1200 can work under 30~+70°C with full load. LRS-1200 has the complete protection functions and 3G anti-vibration capability; It iscomplied with complete international safety regulations. LRS-1200 series serves as a high price-to-performance power supply solution for various industrial applications.
Technical Specification
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| LRS-1200-12 | 12V, 0~92A | +/-1% | 2000mV | 91% | 225x124x41mm |
| LRS-1200-24 | 24V, 0~50A | +/-1% | 240mV | 93% | 225x124x41mm |
| LRS-1200-36 | 36V, 0~33.3A | +/-1% | 360mV | 94% | 225x124x41mm |
| LRS-1200-48 | 48V, 0~25A | +/-1% | 360mV | 94% | 225x124x41mm |
