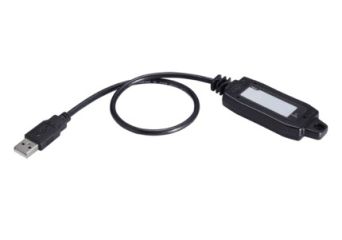

ABC-02-USB
USB-based configuration backup and restoration tool for managed switches and WLAN products
Manufacturer: MOXA
Manufacturer: MOXA
- One-click backup and auto-load technology to reduce system downtime
- Powerful troubleshooting tool to record mass event logs
- Supports Moxa’s managed Ethernet switches and wireless APs/bridges/clients
- Auto-backup of switch configuration files when any setting is changed
- Plug-and-Play system configuration backup and restoration
Price from €157.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddABC-02-USBUSB based Auto Backup Configurator, Configuration backup/restoration, firmware upgrade and log file storage tool for managed Ethernet switches and Routers, 0 to 60°C operating temperatureIn stockWarranty: €157.00€193.11Login to check your price ABC-02-USBUSB based Auto Backup Configurator, Configuration backup/restoration, firmware upgrade and log file storage tool for managed Ethernet switches and Routers, 0 to 60°C operating temperatureAvailability:In stockNet price:€157.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddABC-02-USB-TUSB based Auto Backup Configurator, Configuration backup/restoration, firmware upgrade and log file storage tool for managed Ethernet switches and Routers, -40 to 75°C operating temperatureOut of stock Warranty: €183.00€225.09Login to check your price ABC-02-USB-TUSB based Auto Backup Configurator, Configuration backup/restoration, firmware upgrade and log file storage tool for managed Ethernet switches and Routers, -40 to 75°C operating temperatureAvailability: Out of stockNet price:€183.00
Description
The ABC-02 Series USB automatic backup configurators are designed for Moxa's products. The ABC-02 Series can save and load configuration files, back up event logs, and load firmware via the USB interface. The ABC-02 Series makes it easier to manage the backup of system parameters and perform configurations.
Technical Specification
- Interface
| Connector | USB 2.0 Type A |
- Basic Operation
| Storage Capacity | 1GB SLC type NAND Flash |
- Power Parameters
| Input Voltage | 5 VDC (through USB interface) |
- Physical Characteristics
| Housing | PVC molding |
| IP Rating | IP40 |
| Dimensions | 32.5 x 97 x 12 mm (1.28 x 3.82 x 0.47 in) |
| Weight | 50 g (0.11 lb) |
| Installation | M4 screws (<4 mm) |
- Environmental Limits
| Operating Temperature | ABC-02-USB: 0 to 60°C (32 to 140°F) ABC-02-USB-T: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032 Class A |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m |
