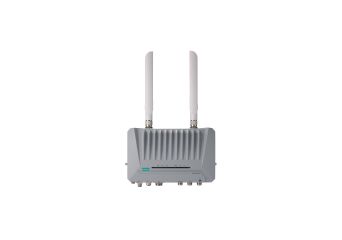

AWK-4262A

Advanced outdoor industrial IEEE 802.11ax wireless AP/bridge/client

Features and Benefits

IEEE 802.11ax Wi-Fi 6 AP/bridge/client
Concurrent dual-band Wi-Fi with aggregated data rates up to 1.775 Gbps
Wi-Fi 6 OFDMA technology enables concurrent communication with multiple clients for high density environment
Latest WPA3 encryption for enhanced wireless network security
Millisecond-level Client-based Turbo Roaming
Built-in 2.4 GHz and 5 GHz band pass filter for more reliable wireless connections
Universal (UN) models with configurable country or region code for more flexible deployment
IP68-rated weatherproof housing designed for outdoor applications and -40 to 75°C wide operating temperature range

Product out of stock

Free shipping from €300

Promocja cenowa na model HDR-15-5

Product intended for professional use only

Description
Technical Specification
Download
Recommended Products

AWK-4262A

Description

Introduction

The AWK-4262A Series 3-in-1 industrial wireless AP/bridge/client is designed to meet the growing need for faster data transmission speeds through IEEE 802.11ax echnology for aggregated data rates of up to 1.775Gbps. The AWK-4262A is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The two redundant DC power inputs increase the reliability of the power supply, and the AWK-4262A can be powered via PoE to facilitate flexible deployment.

The AWK-4262A can operate concurrently on both the 2.4 and 5 GHz bands and is backwards-compatible with existing 802.11a/b/g/n/ac deployments to future-proof your wireless investments.

Advanced 802.11ax Industrial Wireless Solution

802.11a/b/g/n/ac/ax compliant AP/bridge/client for flexible deployment
DFS channel support allows a wider range of 5 GHz channel selection to avoid interference from existing wireless infrastructure

Advanced Wireless Technology

Seamless roaming with client-based Turbo Roaming1 for < 150 ms roaming recovery time between APs (Client Mode)

Industrial Ruggedness

IP68-rated weatherproof housing designed for outdoor applications
-40 to 75°C wide operating temperature for smooth wireless communication in harsh environments

Technical Specification

WLAN Interface

WLAN Standards	2.4 GHz: 802.11ax with 1024 QAM support, 20/40 MHz 5 GHz: 802.11ax with 1024 QAM support, 20/40/80 MHz
Frequency Band for US (20 MHz operating channels)	AWK‑4262A US Models Only: 2.412 to 2.462 GHz (11 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) 5.500 to 5.700 GHz (11 channels) 5.745 to 5.825 GHz (5 channels)
Frequency Band for UN (20 MHz operating channels)	AWK‑4262A UN Models Only: 2.412 to 2.472 GHz (13 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) 5.500 to 5.700 GHz (11 channels) 5.745 to 5.825 GHz (5 channels) Available channels change depending on the selected country or region code.
Wireless Security	WEP encryption (64‑bit and 128‑bit) WPA/WPA2/WPA3‑Enterprise (IEEE 802.1X/RADIUS, TKIP, AES) WPA/WPA2/WPA3‑Personal
Transmission Rate	2.4 GHz: Up to 573.5 Mbps 5 GHz: Up to 1 201 Mbps
Transmitter Power for 802.11a (Dual Chain)	26 ± 1.5 dBm @ 6 Mbps 24.5 ± 1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (5 GHz, Dual Chain)	25.5 ± 1.5 dBm @ MCS0 20 MHz 21 ± 1.5 dBm @ MCS7 20 MHz 24.5 ± 1.5 dBm @ MCS0 40 MHz 22 ± 1.5 dBm @ MCS7 40 MHz
Transmitter Power for 802.11ac (Dual Chain)	25.5 ± 1.5 dBm @ MCS0 20 MHz 21 ± 1.5 dBm @ MCS8 20 MHz 24.5 ± 1.5 dBm @ MCS0 40 MHz 21 ± 1.5 dBm @ MCS9 40 MHz 25 ± 1.5 dBm @ MCS0 80 MHz 21 ± 1.5 dBm @ MCS9 80 MHz
Transmitter Power for 802.11ax (Dual Chain)	25 ± 1.5 dBm @ MCS0 20 MHz 19 ± 1.5 dBm @ MCS11 20 MHz 24.5 ± 1.5 dBm @ MCS0 40 MHz 19 ± 1.5 dBm @ MCS11 40 MHz 25 ± 1.5 dBm @ MCS0 80 MHz 19 ± 1.5 dBm @ MCS11 80 MHz
Transmitter Power for 802.11b (Dual Chain)	29 ± 1.5 dBm @ 1 Mbps 29 ± 1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g (Dual Chain)	27 ± 1.5 dBm @ 6 Mbps 26 ± 1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz, Dual Chain)	26 ± 1.5 dBm @ MCS0 20 MHz 24 ± 1.5 dBm @ MCS7 20 MHz 26 ± 1.5 dBm @ MCS0 40 MHz 24 ± 1.5 dBm @ MCS7 40 MHz
Transmitter Power for 802.11ac (2.4 GHz, Dual Chain)	26 ± 1.5 dBm @ MCS0 20 MHz 23 ± 1.5 dBm @ MCS8 20 MHz 26 ± 1.5 dBm @ MCS0 40 MHz 22 ± 1.5 dBm @ MCS9 40 MHz
Transmitter Power for 802.11ax (2.4 GHz, Dual Chain)	26 ± 1.5 dBm @ MCS0 20 MHz 20 ± 1.5 dBm @ MCS11 20 MHz 26 ± 1.5 dBm @ MCS0 40 MHz 20 ± 1.5 dBm @ MCS11 40 MHz
Receiver Sensitivity for 802.11a (measured at 5.680 GHz)	Typ. −90 dBm @ 6 Mbps Typ. −72 dBm @ 54 Mbps
Receiver Sensitivity for 802.11ac (5 GHz)	Typ. −88 dBm @ MCS0 20 MHz Typ. −65 dBm @ MCS8 20 MHz Typ. −85 dBm @ MCS0 40 MHz Typ. −61 dBm @ MCS9 40 MHz Typ. −82 dBm @ MCS0 80 MHz Typ. −58 dBm @ MCS9 80 MHz
Receiver Sensitivity for 802.11ax (5 GHz)	Typ. −89 dBm @ MCS0 20 MHz Typ. −59 dBm @ MCS11 20 MHz Typ. −86 dBm @ MCS0 40 MHz Typ. −56 dBm @ MCS11 40 MHz Typ. −83 dBm @ MCS0 80 MHz Typ. −53 dBm @ MCS11 80 MHz
Receiver Sensitivity for 802.11b	Typ. −96 dBm @ 1 Mbps Typ. −88 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g	Typ. −91 dBm @ 6 Mbps Typ. −74 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n (2.4 GHz)	Typ. −89 dBm @ MCS0 20 MHz Typ. −71 dBm @ MCS7 20 MHz Typ. −86 dBm @ MCS0 40 MHz Typ. −68 dBm @ MCS7 40 MHz
Receiver Sensitivity for 802.11ac (2.4 GHz)	Typ. −89 dBm @ MCS0 20 MHz Typ. −67 dBm @ MCS8 20 MHz Typ. −86 dBm @ MCS0 40 MHz Typ. −63 dBm @ MCS9 40 MHz
Receiver Sensitivity for 802.11ax (2.4 GHz)	Typ. −91 dBm @ MCS0 20 MHz Typ. −59 dBm @ MCS11 20 MHz Typ. −87 dBm @ MCS0 40 MHz Typ. −56 dBm @ MCS11 40 MHz
WLAN Operation Mode	Access point Client Client‑Router Master Slave Sniffer
Antenna	External, 3/6 dBi Omni‑directional
Antenna Connectors	2 × N‑type female

Ethernet Interface

Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3bz for 2.5GBaseX IEEE 802.3af for PoE IEEE 802.3at for PoE IEEE 802.3az for Energy‑Efficient Ethernet IEEE 802.1X for authentication
PoE Ports (10/100/1000/2500BaseT(X), M12 connector)	1
10/100/1000BaseT(X) Ports (M12 connector)	1

Ethernet Software Features

Management	DHCP Server DHCP Client DNS HTTP IPv4/IPv6 LLDP SMTP SNMPv1/v2c/v3 Syslog TCP/IP Telnet UDP VLAN MXconfig
Routing	Port forwarding Static Route NAT
Security	HTTPS/SSL RADIUS SSH Certificate Management
Time Management	SNTP Client

Firewall

Filter

ICMP
MAC address
IP protocol
Port‑based
Wi‑Fi ACL
Client Isolation

Serial Interface

Console Port

RS‑232
5‑pin M12

USB Interface

Storage Port

USB Type‑A (for ABC‑02 use only)

LED Interface

LED Indicators

PWR, LAN1, LAN2, 2.4 GHz, 5 GHz, SYS

Input/Output Interface

Digital Inputs	2 Max. input current: 8 mA +13 to +30 V for state 1 +3 to −30 V for state 0
Alarm Contact Channels	Relay output with current carrying capacity of 1 A @ 24 VDC
Buttons	Reset button

Physical Characteristics

Housing	Metal
Dimensions	65.9 × 157.6 × 244 mm (2.59 × 6.20 × 9.61 in)
IP Rating	IP68
Weight	1 980 g (4.37 lb)
Installation	Wall mounting DIN‑rail mounting (with optional kit) Pole mounting (with optional kit)

Power Parameters

Input Current	12‑48 VDC, 2‑0.5 A
Input Voltage	12 to 48 VDC Redundant dual inputs 48 VDC Power‑over‑Ethernet
Power Connector	M12 A‑coded 5‑pin male connector
Power Consumption	24 W (max.)

Environmental Limits

Operating Temperature	Wide Temp. Models: −40 to 75 °C (−40 to 167 °F)
Storage Temperature (package included)	−40 to 85 °C (−40 to 185 °F)
Ambient Relative Humidity	5 to 95 % (non‑condensing)

Standards and Certifications

EMC	EN 61000‑6‑2/‑6‑4 EN 55032/35
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000‑4‑2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000‑4‑3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000‑4‑4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000‑4‑5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000‑4‑6 CS: 10 V/m IEC 61000‑4‑8 PFMF: 30 A/m
Safety	IEC 62368‑1 UL 62368‑1
Vibration	IEC 60068‑2‑6
Radio	EN 300 328, EN 301 489‑1/17, EN 301 893, FCC, MIC, NCC, RCM, SRRC, KC
