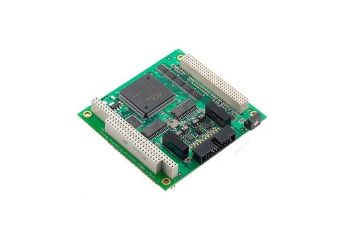

CB-602I

2-port CAN interface PC/104-Plus modules with 2 kV isolation

Manufacturer: MOXA

Supports CAN 2.0A and CAN 2.0B
Two independent CAN communication ports
CAN transfer rate up to 1 Mbps
2 kV electrical isolation
LED for transmit/receive status on each port
Optional 120-ohm terminal resistor for CAN bus network
DLL library and examples included
Windows drivers provided

Product out of stock

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Models
Description
Technical Specification
Download
Recommended Products

CB-602I

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CB-602I 2x CAN, PC/104-Plus, opto	Out of stock	Warranty:		€0.00 -	-

CB-602I

2x CAN, PC/104-Plus, opto

Availability: Out of stock

Net price:

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CB-602I-T 2x CAN, PC/104-Plus, opto, -40~85C	Out of stock	Warranty:		€0.00 -	-

CB-602I-T

2x CAN, PC/104-Plus, opto, -40~85C

Availability: Out of stock

Net price:

Description

Moxa’s CB-602I CAN (Controller Area Network) interface boards support the PC/104-Plus interface. Optional DB9 and DB25 connection cables are available for connecting to CAN interface devices. The CB-602I CAN interface boards use the NXP SJA1000 and PCA82C251 transceiver, which provide bus arbitration and error detection. The -40 to 85°C wide operating temperature (CB-602I-T only) and 2 kV isolation make the boards suitable for use in harsh industrial environments.

Technical Specification

Serial Interface

Isolation	2 kV
Max. No. of Boards per PC	8

CAN Interface

Baudrate	10/20/50/125/250/500/800/1000 kbps, user-defined
Connector	20-pin box header
No. of Ports	2

Environmental Limits

Operating Temperature	Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class B
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs
