Manufacturer: MOXA
- PCI Express 1.0 compliant
- 921.6 kbps maximum baudrate for fast data transmission
- 128-byte FIFO and on-chip H/W, S/W flow control
- Low-profile form factor fits small-sized PCs
- Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
- Easy maintenance with built-in LEDs and management software
Price from €97.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5

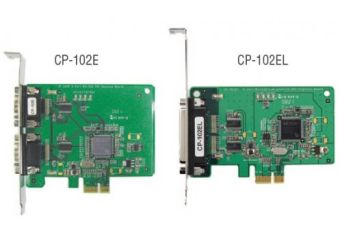

CP-102E / CP-102EL
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCP-102EL/DB9M2 Port PCI Express, Low Profile, cable CBL-M25M9x2-50In stockWarranty: €105.00€129.15Login to check your price CP-102EL/DB9M2 Port PCI Express, Low Profile, cable CBL-M25M9x2-50Availability:In stockNet price:€105.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCP-102E2 Port PCIe Board, RS-232In stockWarranty: €97.00€119.31Login to check your price CP-102E2 Port PCIe Board, RS-232Availability:In stockNet price:€97.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCBL-M25M9x2-50Cable/CBL-M25M9x2-50Out of stock Warranty: €10.00€12.30Login to check your price CBL-M25M9x2-50Cable/CBL-M25M9x2-50Availability: Out of stockNet price:€10.00
Description
The CP-102E and low-profile CP-102EL are 2-port PCI Express boards designed for POS and ATM applications. Moxa’s PCI Express boards are a top choice of industrial automation engineers and system integrators, particularly since the boards support many different operating systems, including Windows, Linux, and UNIX. The CP-102E/EL’s 2 RS-232 serial ports support a fast 921.6 kbps baudrate and provide full modem control signals to ensure compatibility with a wide range of serial peripherals. In addition, the boards’ x1 classification allows them to be installed in any PCI Express slot.
Smaller Form Factor
The CP-102EL is a low-profile board that is compatible with any PCI Express slot. The CP-102EL board only requires a 3.3 VDC power supply, which means that the board fits any host computer, ranging from shoebox to standard-sized PCs.
Drivers Provided for Windows, Linux, and UNIX
Moxa continues to support a wide variety of operating systems, and there is no exception for the CP-102E/EL boards. Reliable Windows and Linux drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration applications.
Technical Specification
- Serial Interface
| Comm. Controller | MU860 (16C550C compatible) |
| Bus | PCI Express 1.0 |
| Connector | CP-102E: 2 x DB9 male CP-102EL: DB25 female |
| FIFO | 128 bytes |
| Max. No. of Boards per PC | 8 |
| No. of Ports | 2 |
| Serial Standards | RS-232 |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, XON/XOFF |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
- Serial Software Features
| Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x |
| UNIX Drivers | QNX 6, Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6 |
- Power Parameters
| Input Current | CP-102E: 520 mA @ 3.3 VDC CP-102EL-DB9M: 552 mA @ 3.3 VDC |
- Physical Characteristics
| Dimensions | CP-102E: 85.04 x 100 mm (3.35 x 3.94 in) CP-102EL-DB9M: 67.21 x 100 mm (2.65 x 3.94 in) |
- LED Interface
| LED Indicators | Built-in Tx, Rx LEDs for each port |
- Environmental Limits
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature (package included) | -20 to 85°C (-4 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/24 |
| EMI | CP-102E: CISPR 32, FCC Part 15B Class A CP-102EL-DB9M: CISPR 32, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF |
- Declaration
| Green Product | RoHS, CRoHS, WEEE |
- MTBF
| Time | 4,947,552 hrs |
| Standards | Telcordia (Bellcore) Standard TR/SR |
