Manufacturer: MOXA
- Over 800 kbps data throughput for top performance
- 921.6 kbps maximum baudrate for fast data transmission
- 128-byte FIFO and on-chip H/W, S/W flow control
- Compatible with 3.3/5 V PCI and PCI-X
- Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
- Wide-temperature model available for -40 to 85°C environments
Price from €113.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCP-104UL/DB9M4 Port UPCI Board, w/ DB9M Cable, RS-232, LowProfileIn stockWarranty: €113.00€138.99Login to check your price CP-104UL/DB9M4 Port UPCI Board, w/ DB9M Cable, RS-232, LowProfileAvailability:In stockNet price:€113.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCP-104UL-T4 Port UPCI Board, RS-232, Low Profile, Wide TemperatureIn stockWarranty: €156.00€191.88Login to check your price CP-104UL-T4 Port UPCI Board, RS-232, Low Profile, Wide TemperatureAvailability:In stockNet price:€156.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCP-104UL/DB25M4 Port UPCI Board, w/ DB25M Cable, RS-232, LowProfileOut of stock Warranty: €113.00€138.99Login to check your price CP-104UL/DB25M4 Port UPCI Board, w/ DB25M Cable, RS-232, LowProfileAvailability: Out of stockNet price:€113.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCBL-M44M25x4-50Cable/CBL-M44M25x4-50Out of stock Warranty: €20.00€24.60Login to check your price CBL-M44M25x4-50Cable/CBL-M44M25x4-50Availability: Out of stockNet price:€20.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCBL-M44M9x4-50Cable/CBL-M44M9x4-50In stockWarranty: €18.00€22.14Login to check your price CBL-M44M9x4-50Cable/CBL-M44M9x4-50Availability:In stockNet price:€18.00
Description

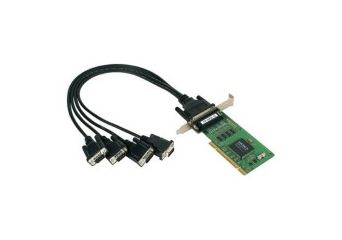

The CP-104UL 4-port universal PCI boards are designed for POS and ATM applications. They are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows, Linux, and even UNIX. In addition, each of the boards’ RS-232 serial ports supports a fast 921.6 kbps baudrate. The CP-104UL provide full modem control signals to ensure compatibility with a wide range of serial peripherals, and they work with both 3.3 V and 5 V PCI buses, allowing the boards to be installed in virtually any available PC server.
Technical Specification
- Serial Interface
| Comm. Controller | MU860 (16C550C compatible) |
| Bus | 32-bit Universal PCI |
| Connector | DB44 female |
| FIFO | 128 bytes |
| Max. No. of Boards per PC | 8 |
| No. of Ports | 4 |
| Serial Standards | RS-232 |
| Baudrate | 50 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, XON/XOFF |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
- Serial Software Features
| Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x |
| UNIX Drivers | QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD |
- Power Parameters
| Input Current | 120 mA @ 5 VDC |
- Physical Characteristics
| Dimensions | 64.4 x 120 mm (2.53 x 4.72 in) |
- LED Interface
| LED Indicators | Built-in Tx, Rx LEDs for each port |
- Environmental Limits
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF |
| International Approval | KC |
- Declaration
| Green Product | RoHS, CRoHS, WEEE |
- MTBF
| Time | 558,961 hrs |
| Standards | Telcordia (Bellcore) Standard TR/SR |
