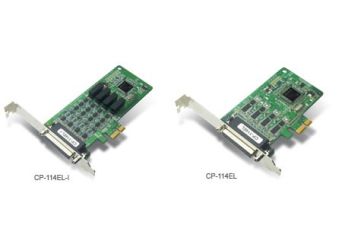

CP-114EL/EL-I

4-port RS-232/422/485 PCI Express boards with optional 2 kV isolation

Manufacturer: MOXA

PCI Express 1.0 compliant
921.6 kbps maximum baudrate for fast data transmission
128-byte FIFO and on-chip H/W, S/W flow control
Low-profile form factor fits small-sized PCs
Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
Easy maintenance with built-in LEDs and management software

Price from €214.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 5 models

Promocja cenowa na model HDR-15-5

Models
Description
Technical Specification
Download
Recommended Products

CP-114EL/EL-I

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CP-114EL/DB9M 4 Port PCIe Board, w/ DB9M Cable, RS-232/422/485, LowProfile	In stock	Warranty:		€225.00 €276.75 Login to check your price	Login to check your price	pcs.

CP-114EL/DB9M

4 Port PCIe Board, w/ DB9M Cable, RS-232/422/485, LowProfile

Availability:

In stock

Net price:

€225.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CP-114EL/DB25M 4 Port PCIe Board, w/ DB25M Cable, RS-232/422/485, LowProfile	Out of stock	Warranty:		€225.00 €276.75 Login to check your price	Login to check your price	pcs.

CP-114EL/DB25M

4 Port PCIe Board, w/ DB25M Cable, RS-232/422/485, LowProfile

Availability: Out of stock

Net price:

€225.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CP-114EL-I/DB9M 4 Port PCIe Board, w/ DB9M Cable, RS-232/422/485, w/ Isolation, Low Profile	In stock	Warranty:		€450.00 €553.50 Login to check your price	Login to check your price	pcs.

CP-114EL-I/DB9M

4 Port PCIe Board, w/ DB9M Cable, RS-232/422/485, w/ Isolation, Low Profile

Availability:

In stock

Net price:

€450.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CP-114EL-I/DB25M 4 Port PCIe Board, w/ DB25M Cable, RS-232/422/485, w/ Isolation, Low Profile	Out of stock	Warranty:		€450.00 €553.50 Login to check your price	Login to check your price	pcs.

CP-114EL-I/DB25M

4 Port PCIe Board, w/ DB25M Cable, RS-232/422/485, w/ Isolation, Low Profile

Availability: Out of stock

Net price:

€450.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CP-114EL 4 Port PCIe Board, RS-232/422/485, LowProfile	Out of stock	Warranty:		€214.00 €263.22 Login to check your price	Login to check your price	pcs.

CP-114EL

4 Port PCIe Board, RS-232/422/485, LowProfile

Availability: Out of stock

Net price:

€214.00

Description

The CP-114EL and CP-114EL-I are smart, 4-port PCI Express boards designed for POS and ATM applications. The boards are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows, Linux, and UNIX. In addition, each of the boards’ 4 RS-232/422/485 serial ports supports a fast 921.6 kbps baudrate. The CP-114EL and CP-114EL-I provide full modem control signals to ensure compatibility with a wide range of serial peripherals, and their PCI Express x1 classification allows the boards to be installed in any PCI Express slot.

Smaller Form Factor

The CP-114EL and CP-114EL-I are low-profile boards that are compatible with any PCI Express slot. The boards require only a 3.3 VDC power supply, which means that the boards fit any host computer, ranging from shoebox to standard-sized PCs.

Drivers Provided for Windows, Linux, and UNIX

Moxa continues to support a wide variety of operating systems, and the CP-114EL/EL-I boards are no exception. Reliable Windows and Linux drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.

Technical Specification

Serial Interface

Comm. Controller	16C550C compatible
Bus	PCI Express 1.0
Connector	DB44 female
FIFO	128 bytes
Max. No. of Boards per PC	8
No. of Ports	4
Serial Standards	RS-232, RS-422, RS-485
Baudrate	50 bps to 921.6 kbps (supports non-standard baudrates)
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	None, RTS/CTS, XON/XOFF
Isolation	CP-114EL-I Series: 2 kV

Serial Signals

RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND

Serial Software Features

Windows Drivers	DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers	Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers	QNX 6, Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6

Power Parameters

Input Current

CP-114EL Series: 835 mA @ 3.3 VDC
CP-114EL-I Series: 1,170 mA @ 3.3 VDC

Physical Characteristics

Dimensions

CP-114EL Series: 67.21 x 103 mm (2.65 x 4.06 in)
CP-114EL-I Series: 67.21 x 135 mm (2.65 x 5.31 in)

LED Interface

LED Indicators

Built-in Tx, Rx LEDs for each port

Environmental Limits

Operating Temperature	0 to 55°C (32 to 131°F)
Storage Temperature (package included)	-20 to 85°C (-4 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class B
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
