CP-114N

4-port RS-232/422/485 Mini PCI Express boards

Manufacturer: MOXA

Mini PCIe interface support
921.6 kbps maximum baudrate for fast data transmission
128-byte FIFO and on-chip H/W, S/W flow control
Drivers provided for a broad selection of operating systems, including Windows and Linux

Price from €302.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Models
Description
Technical Specification
Download
Recommended Products

CP-114N

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CP-114N-T 4-port RS-232/422/485 Mini PCI Express serial board, -40°C to 85 operating temperature	Out of stock	Warranty:		€302.00 €371.46 Login to check your price	Login to check your price	pcs.

CP-114N-T

4-port RS-232/422/485 Mini PCI Express serial board, -40°C to 85 operating temperature

Availability: Out of stock

Net price:

€302.00

Description

Introduction

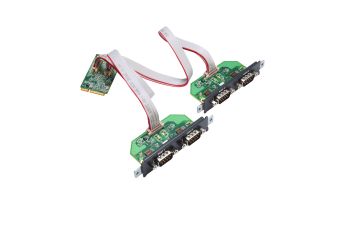

The CP-114N is a multiport serial board designed for industrial automation system and industrial PC manufacturers. It is compatible with any Mini PCI Express slot. The board requires only a 3.3 VDC power supply, which means it can work with host computers ranging from DIN-rail PCs to standard-sized PCs.

The CP-114N is a top choice of industrial automation engineers and system integrators and supports Windows and Linux operating systems. In addition, the four RS-232/422/485 serial ports support a fast 921.6 kbps baudrate. The CP-114N provides full-modem control signals to ensure compatibility with a wide range of serial peripherals. The board also provides 1 kV line-to-line surge protection, ensuring compatibility in a wide range od industrial environments.

A New Family of Mini PCI Express Multiport Serial Boards for Faster Time to Market

Moxa's new Mini PCI Express multiport serial board family fulfills the need for customized expansion and enables faster time to market for OEMs and system integrators. It includes isolated and non-isolated RS-232/422/485 communication cards for various applications.

The serial boards feature high performance 16C950 compatible UARTs and are available in 4-port and 2-port versions compatible with all popular operating systems. They support date rates of up to 921.6 kbps and have 128-byte transmit and receive FIFOs. The serial boards can operate in the -40 to 85C temperature range. Door backets are included in the package for all models, enabling the installation of the serial boards in a Moxa IPC expansion slot.

Technical Specification

Serial Interface

Comm. Controller	16C550C compatible
Bus	Mini PCI Express
Connector	DB9 male
FIFO	128 bytes
No. of Ports	4
Baudrate	50 bps to 921.6 kbps (supports non-standard baudrates)
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	None, RTS/CTS, XON/XOFF
Serial Standards	RS-232/422/485 (software selectable)

Serial Signals

RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

Windows Drivers	Windows 7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022
Linux Drivers	Linux kernel 4.x, Linux kernel 5.x

Power Parameters

Input Current

557 mA @ 3.3 VDC

Physical Characteristics

Dimensions

30 x 50.95 mm (1.18 x 2 in)

Environmental Limits

Operating Temperature	-40 to 85°C (-40 to 185°F)
Storage Temperature (package included)	-20 to 85°C (-4 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

EMC	EN 55032/35
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
