Industrial network security management software designed for OT networks
Price from €94.00 Net price
Product out of stock
Manufacturer: MOXA
- All-in-one firewall/NAT/VPN/router/switch with 10 GbE ports
- Secure remote access tunnel with VPN
- Industrial-grade Intrusion Prevention/Detection System (IPS/IDS)
- Visualize OT security with the MXsecurity management software
- Stateful firewall protects critical assets
- Inspect industrial protocols with PacketGuard technology
- Easy network setup with Network Address Translation (NAT)
- RSTP/Turbo Ring redundant protocol enhances network redundancy
- Security features based on IEC 62443/NERC CIP
- Supports secure boot for checking system integrity
- Check firewall settings with the intelligent SettingCheck feature
- -40 to 75°C operating temperature range (-T model)
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDR-G9010-VPN-2MGSFPIndustrial Secure Router Switch with 8 10/100/1000BaseT(X) ports, 2 1/2.5GbE SFP slots, Firewall/NAT/VPN, -10 to 60°CIn stockWarranty: EDR-G9010-VPN-2MGSFPIndustrial Secure Router Switch with 8 10/100/1000BaseT(X) ports, 2 1/2.5GbE SFP slots, Firewall/NAT/VPN, -10 to 60°CAvailability:In stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDR-G9010-VPN-2MGSFP-TIndustrial Secure Router Switch with 8 10/100/1000BaseT(X) ports, 2 1/2.5GbE SFP slots, Firewall/NAT/VPN, -40 to 75°COut of stock Warranty: EDR-G9010-VPN-2MGSFP-TIndustrial Secure Router Switch with 8 10/100/1000BaseT(X) ports, 2 1/2.5GbE SFP slots, Firewall/NAT/VPN, -40 to 75°CAvailability: Out of stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDR-G9010-VPN-2MGSFP-HV8 GbE + 2 GbE industrial secure router with Firewall/NAT/VPN, 120/220 VDC/VAC, -10 to 60°COut of stock Warranty: EDR-G9010-VPN-2MGSFP-HV8 GbE + 2 GbE industrial secure router with Firewall/NAT/VPN, 120/220 VDC/VAC, -10 to 60°CAvailability: Out of stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDR-G9010-VPN-2MGSFP-HV-T8 GbE + 2 GbE industrial secure router with Firewall/NAT/VPN, 120/220 VDC/VAC , -40 to 75°COut of stock Warranty: EDR-G9010-VPN-2MGSFP-HV-T8 GbE + 2 GbE industrial secure router with Firewall/NAT/VPN, 120/220 VDC/VAC , -40 to 75°CAvailability: Out of stock-
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 30W 24V 1.5AIn stockWarranty: €13.40€16.48Login to check your price DIN rail power supply 30W 24V 1.5AAvailability:In stockNet price:€13.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLIC-IPS-DEVICE-NEW-1Y-1N-MR1-year device-based IPS licenseOut of stock Warranty: LIC-IPS-DEVICE-NEW-1Y-1N-MR1-year device-based IPS licenseAvailability: Out of stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLIC-IPS-DEVICE-RENEW-1Y-1N-MR1-year device-based IPS renewal licenseOut of stock Warranty: LIC-IPS-DEVICE-RENEW-1Y-1N-MR1-year device-based IPS renewal licenseAvailability: Out of stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 100Base multi-mode, LC connector, 4Km, -40 to 85°CIn stockWarranty: €122.00€150.06Login to check your price Small Form Factor pluggable transceiver with 100Base multi-mode, LC connector, 4Km, -40 to 85°CAvailability:In stockNet price:€122.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 100Base single-mode, LC connector, 40Km, -40 to 85°CIn delivery Warranty: €274.00€337.02Login to check your price Small Form Factor pluggable transceiver with 100Base single-mode, LC connector, 40Km, -40 to 85°CAvailability: In deliveryNet price:€274.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 1000BaseLX, LC connector, 10 km, 0 to 60°CIn stockWarranty: €257.00€316.11Login to check your price Small Form Factor pluggable transceiver with 1000BaseLX, LC connector, 10 km, 0 to 60°CAvailability:In stockNet price:€257.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 1000BaseSX, LC connector, 0.5 km, 0 to 60°CIn stockWarranty: €145.00€178.35Login to check your price Small Form Factor pluggable transceiver with 1000BaseSX, LC connector, 0.5 km, 0 to 60°CAvailability:In stockNet price:€145.00
Useful products
Description

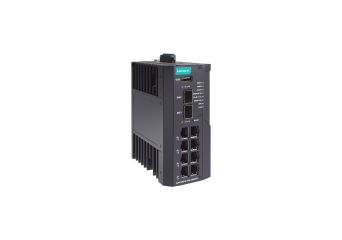

The EDR-G9010 Series is a set of highly integrated industrial multi-port secure routers with firewall/NAT/VPN and managed Layer 2 switch functions. These devices are designed for Ethernet-based security applications in critical remote control or monitoring networks. These secure routers provide an electronic security perimeter to protect critical cyber assets including substations in power applications, pump-and-treat systems in water stations, distributed control systems in oil and gas applications, and PLC/SCADA systems in factory automation.
Defend Against Malicious Threats With Advanced Cybersecurity Features
The EDR-G9010 Series’ embedded firewall uses policy rules to control network traffic between trusted zones while Network Address Translation (NAT) shields the internal network from unauthorized access by outside hosts. The Virtual Private Networking (VPN) functionality further provides users with secure communication tunnels when accessing the private network from the public Internet. To help protect your OT assets from cyberattacks, the EDR-G9010 Series supports Deep Packet Inspection (DPI) to examine the data portion of network packets for various OT-specific protocols.
Simplify Configurations With the User-friendly Interface and Quick Settings
The EDR-G9010 Series’ “Interface Type Quick Settings” provide an easy way for users to set up WAN, LAN, and Bridge ports for routing functionality in just four steps. In addition, the “Quick Automation Profile” feature gives engineers a simple way to configure the firewall filtering function for general automation protocols, including EtherNet/IP, Modbus TCP, EtherCAT, FOUNDATION Fieldbus, and PROFINET.
Industrial-grade Design to Ensure Uninterrupted Network Connectivity
The EDR-G9010 Series’ rugged hardware makes these secure routers ideal for harsh industrial environments, featuring wide-temperature models that are built to operate reliably in hazardous conditions and extreme temperatures of -40 up to 75°C. Moreover, the EDR-G9010 Series supports comprehensive Layer 2 and Layer 3 redundancy mechanisms to ensure that your network stays connected at all times.
Technical Specification
- Input/Output Interface
| Alarm Contact Channels | Resistive load: 1 A @ 24 VDC |
| Buttons | Reset button |
| Digital Input Channels | +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA |
- Ethernet Interface
| 10/100/1000BaseT(X) Ports (RJ45 connector) | 8 |
| 1000BaseSFP Slots | 2 |
| Standards | IEEE 802.1Q for VLAN Tagging IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) Static Port Trunk IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control IEEE 802.3z for 1000BaseSX/LX/LHX/ZX |
- Ethernet Software Features
| Broadcast Forwarding | IP directed broadcast, broadcast forwarding |
| Management | Back Pressure Flow Control, DDNS, DHCP Server/Client, Web Console (HTTP/HTTPS), LLDP, QoS/CoS/ToS, SNMPv1/v2c/v3, Telnet, TFTP, HTTPS, SSH |
| Redundancy Protocols | RSTP, STP, Turbo Ring v2 |
| Routing | Throughput: 350K packets per second (max. 1500 Mbps) |
| Routing Table | Max. 4K routing rules |
| Concurrent Connections | Max. 400K |
| Connections Per Second | Max. 20K |
| Routing Redundancy | VRRP |
| Security | Secure Boot, IPsec, L2TP (server), RADIUS, Trust access control |
| Time Management | NTP Server/Client, SNTP |
| Unicast Routing | OSPF, RIPV1/V2, Static Route |
| Multicast Routing | Static Route |
| Filter | IGMP v1/v2/v3 |
- Switch Properties
| VLAN ID Range | VID 1 to 4094 |
| IGMP Groups | 256 |
| Max. No. of VLANs | 16 |
- LED Interface
| LED Indicators | PWR1, PWR2, STATE, MSTR/H.TC, CPLR/T.TC, VRRP/HA, VPN, USB |
- DoS and DDoS Protection
| Technology | ARP-Flood, FIN Scan, ICMP-Death, NEWWithout-SYN Scan, NMAP-ID Scan, NMAP-Xmas Scan, Null Scan, SYN/FIN Scan, SYN/RST Scan, SYN-Flood, Xmas Scan |
- Firewall
| Filter | DDoS, Ethernet protocols, ICMP, IP address, MAC address, Ports |
| Quick Automation Profiles | DNP, EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, FTP, HTTP, IEC 60870-104, IPsec, L2TP, LonWorks, Modbus TCP, PPTP, PROFINET, RADIUS, SSH, Telnet |
| Stateful Inspection | Router firewall Transparent (bridge) firewall |
| Deep Packet Inspection | Modbus TCP Modbus UDP DNP3 IEC 60870-5-104 IEC 61850 MMS Additional protocols will be supported through future firmware updates. |
| Throughput | Max. 350K packets per second (max. 1500 Mbps) |
- IPsec VPN
| Authentication | MD5 and SHA (SHA-256) RSA (key size: 1024-bit, 2048-bit) X.509 v3 certificate |
| Concurrent VPN Tunnels | Max. 250 IPsec VPN tunnels |
| Encryption | DES, 3DES, AES-128, AES-192, AES-256 |
| Protocols | IPsec, L2TP (server), PPTP (client) |
| Throughput | Max. 300 Mbps (Conditions: AES-256, SHA-256) |
- NAT
| Features | 1-to-1, N-to-1, Port forwarding |
- Real-Time Firewall / VPN Event Log
| Event Type | Firewall event, VPN event |
| Media | Local storage, SNMP Trap, Syslog server |
- Serial Interface
| Console Port | RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1) |
| Connector | USB Type-C |
- Power Parameters
| Connection | Removable terminal block |
| Input Voltage | EDR-G9010-VPN-2MGSFP(-T) models: 12/24/48 VDC (DNV-certified for 24 VDC) EDR-G9010-VPN-2MGSFP-HV(-T) models: 120/240 VDC/VAC |
| Input Current | EDR-G9010-VPN-2MGSFP(-T) models: 1.51 A @ 12 VDC 0.70 A @ 24 VDC 0.35 A @ 48 VDC EDR-G9010-VPN-2MGSFP-HV(-T) models: 0.28 A @ 120 VAC 0.18 A @ 240 VAC 0.15 A @ 120 VDC 0.08 A @ 240 VDC |
| Reverse Polarity Protection | Supported |
- Physical Characteristics
| Housing | Metal |
| Dimensions | EDR-G9010-VPN-2MGSFP(-T) models: 58 x 135 x 105 mm (2.28 x 5.31 x 4.13 in) EDR-G9010-VPN-2MGSFP-HV(-T) models: 64 x 135 x 105 mm (2.52 x 5.31 x 4.13 in) |
| Weight | EDR-G9010-VPN-2MGSFP(-T) models: 1030 g (2.27 lb) EDR-G9010-VPN-2MGSFP-HV(-T) models: 1150 g (2.54 lb) |
| Installation | DIN-rail mounting (DNV-certified), Wall mounting (with optional kit) |
- Environmental Limits
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F), DNV-certified for -25 to 70°C (-13 to 158°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| Safety | UL 62368-1 |
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Railway | EN 50121-4 |
| Traffic Control | NEMA TS2 |
| Maritime | IEC 60945, DNV |
| Power Substation | IEEE 1613, IEC 61850-3 Edition 2.0 |
| Hazardous Locations | ATEX, Class I Division 2 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
- MTBF
| Time | 1,080,807 hrs |
| Standards | Telcordia (Bellcore), GB |
- Warranty
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
