NOTE: The EDR-G903 model is discontinued Last orders can be made until March 31, 2024 or while stocks last. Check the replacement: EDR-G9004 |
Manufacturer: MOXA
- Firewall/NAT/VPN/Router all-in-one
- Secure remote access tunnel with VPN
- Stateful firewall protects critical assets
- Inspect industrial protocols with PacketGuard technology
- Easy network setup with Network Address Translation (NAT)
- Dual WAN redundant interfaces through public networks
- Support for VLANs in different interfaces
- -40 to 75°C operating temperature range (-T model)
- Security features based on IEC 62443/NERC CIP
Price from €2,044.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDR-G903Industrial Gigabit Secure Router, 2WAN/DMZ, Firewall/NAT, 25VPN Tunnel, 0 to 60°C operating ?temperatureOut of stock Warranty: €2,044.00€2,514.12Login to check your price EDR-G903Industrial Gigabit Secure Router, 2WAN/DMZ, Firewall/NAT, 25VPN Tunnel, 0 to 60°C operating ?temperatureAvailability: Out of stockNet price:€2,044.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDR-G903-TIndustrial Gigabit Secure Router, 2WAN/DMZ, Firewall/NAT, 25VPN Tunnel, -40 to 75°C operating? temperatureIn stockWarranty: €2,209.00€2,717.07Login to check your price EDR-G903-TIndustrial Gigabit Secure Router, 2WAN/DMZ, Firewall/NAT, 25VPN Tunnel, -40 to 75°C operating? temperatureAvailability:In stockNet price:€2,209.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 30W 24V 1.5AIn stockWarranty: €12.50€15.38Login to check your price DIN rail power supply 30W 24V 1.5AAvailability:In stockNet price:€12.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 100Base multi-mode, LC connector, 4Km, -40 to 85°COut of stock Warranty: €127.00€156.21Login to check your price Small Form Factor pluggable transceiver with 100Base multi-mode, LC connector, 4Km, -40 to 85°CAvailability: Out of stockNet price:€127.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 100Base single-mode, LC connector, 40Km, -40 to 85°CIn stockWarranty: €285.00€350.55Login to check your price Small Form Factor pluggable transceiver with 100Base single-mode, LC connector, 40Km, -40 to 85°CAvailability:In stockNet price:€285.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 1000BaseLSX, LC connector, 1310nm, 0 to 60°CIn stockWarranty: €287.00€353.01Login to check your price Small Form Factor pluggable transceiver with 1000BaseLSX, LC connector, 1310nm, 0 to 60°CAvailability:In stockNet price:€287.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 1000BaseLX, LC connector, 10 km, 0 to 60°CIn stockWarranty: €266.00€327.18Login to check your price Small Form Factor pluggable transceiver with 1000BaseLX, LC connector, 10 km, 0 to 60°CAvailability:In stockNet price:€266.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 1000BaseSX, LC connector, 850nm, 0 to 60°CIn stockWarranty: €151.00€185.73Login to check your price Small Form Factor pluggable transceiver with 1000BaseSX, LC connector, 850nm, 0 to 60°CAvailability:In stockNet price:€151.00
Description

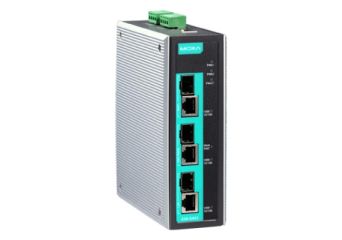

The EDR-G903 is a high-performance, industrial VPN server with a firewall/NAT all-in-one secure router. It is designed for Ethernet-based security applications on critical remote control or monitoring networks, and it provides an Electronic Security Perimeter for the protection of critical cyber assets such as pumping stations, DCS, PLC systems on oil rigs, and water treatment systems. The EDR-G903 Series includes the following cybersecurity features:
- Virtual Private Network (VPN): VPNs are designed to provide users with secure communication links when accessing a private network from the public Internet. They use IPsec (IP Security) server or client mode for encryption and authentication of all IP packets at the network layer to ensure confidentiality and sender authentication.
- Firewall: Controls network traffic between different trust zones. Network Address Translation (NAT), which shields the internal LAN from unauthorized activity from outside hosts.
The EDR-G903’s Quick Automation Profile function supports most common fieldbus protocols, including EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, Modbus TCP, and PROFINET. Users can easily create a secure Ethernet Fieldbus network from a user-friendly web UI with a single click. In addition, Moxa’s PacketGuard technology (Deep Packet Inspection) helps to filter Modbus TCP commands at OSI layer 7. The wide-temperature range models that are available operate reliably in hazardous, -40 to 75°C environments.
Technical Specification
- Input/Output Interface
| Alarm Contact Channels | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| Buttons | Reset button |
| Digital Input Channels | +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA |
| Relay Channels | 1 |
- Ethernet Interface
| Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) | 3 |
| Standards | IEEE 802.1Q for VLAN Tagging IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseSX/LX/LHX/ZX |
| WAN Ports, RJ45/Fiber Combo Port | 1 |
| DMZ Ports, RJ45/Fiber Combo Port | 1 |
| LAN Ports, RJ45/Fiber Combo Port | 1 |
- Ethernet Software Features
| Management | Back Pressure Flow Control, DDNS, DHCP Server/Client, HTTP, LLDP, QoS/CoS/ToS, SMTP, SNMPv1/v2c/v3, Telnet, TFTP |
| Routing | Throughput: 40,000 packets per second (max. 500 Mbps) |
| Routing Redundancy | VRRP |
| Security | HTTPS/SSL, SSH, IPsec, OpenVPN (client and server), UDP and TCP Tunnel mode (routing) and TAP mode (bridge), L2TP (server), RADIUS |
| Time Management | NTP Server/Client, SNTP |
| Unicast Routing | OSPF, RIPV1/V2, Static Route |
- Switch Properties
| Max. No. of VLANs | 15 |
- DoS and DDoS Protection
| Technology | ARP-Flood, FIN Scan, ICMP-Death, NEWWithout-SYN Scan, NMAP-ID Scan, NMAP-Xmas Scan, Null Scan, SYN/FIN Scan, SYN/RST Scan, SYN-Flood, Xmas Scan |
- Firewall
| Deep Packet Inspection | Modbus TCP Modbus UDP |
| Filter | DDoS, Ethernet protocols, ICMP, IP address, MAC address, Ports |
| Quick Automation Profiles | DNP, EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, FTP, HTTP, IEC 60870-104, IPsec, L2TP, LonWorks, Modbus TCP, PPTP, PROFINET, RADIUS, SSH, Telnet |
| Stateful Inspection | Router firewall Transparent (bridge) firewall |
| Throughput | Max. 40000 packets per second (max. 500 Mbps) |
- IPsec VPN
| Authentication | MD5 and SHA (SHA-256) RSA (key size: 1024-bit, 2048-bit) X.509 v3 certificate |
| Concurrent VPN Tunnels | Max. 100 IPsec VPN tunnels |
| Encryption | 3DES, AES-128, AES-192, AES-256, DES |
| Protocols | IPsec, L2TP (server), PPTP (client) |
| Throughput | Max. 150 Mbps (Conditions: AES-256, SHA-256) |
- NAT
| Features | 1-to-1, N-to-1, Port forwarding |
- OpenVPN
| Authentication | User password by MD5 and SHA1 |
| Concurrent VPN Tunnels | Client Mode: max. 2 external servers Server Mode: max. 5 external clients |
| Encryption | AES-128/192/256 CBC, Blowfish CBC, DES CBC, DES-EDE3 CBC |
| Protocols | OpenVPN (client and server), UDP, and TCP, Tunnel mode (routing) and TAP mode (bridge), Tunnel mode (routing) |
- Real-Time Firewall / VPN Event Log
| Event Type | Firewall event, System event, VPN event |
| Media | Local storage, SNMP Trap, Syslog server |
- Serial Interface
| Console Port | Web/Telnet/SSH/CLI, and RS-232 serial console |
- Environmental Limits
| Operating Temperature | EDR-G903: 0 to 60°C (32 to 140°F) EDR-G903-T: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| Freefall | IEC 60068-2-32 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Safety | UL 508 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Power Substation | IEC 61850-3 |
- MTBF
| Time | 903,311 hrs |
| Standards | Telcordia (Bellcore), GB |
