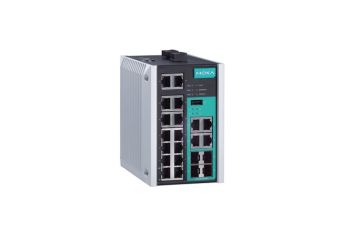

main product photo

EDS-518E

14+4G-port Gigabit managed Ethernet switches

Manufacturer: MOXA
Manufacturer: MOXA
  • 4 Gigabit plus 14 fast Ethernet ports for copper and fiber
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches),  RSTP/STP, and MSTP for network redundancy
  • RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH, and sticky MAC-addresses to enhance network security
  • Security features based on IEC 62443
  • EtherNet/IP, PROFINET, and Modbus TCP protocols supported for device management and monitoring
  • Fiber Check™—comprehensive fiber status monitoring and warning on MST/MSC/SSC/SFP fiber ports
  • Supports MXstudio for easy, visualized industrial network management
  • V-ON™ ensures millisecond-level multicast data and video network recovery
Price from €1,489.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 8 models

Promocja cenowa na model HDR-15-5

18-portowe gigabitowe zarządzalne switche przemysłowe. Wyposażone w 4 porty gigabitowe combo (port RJ 45 lub wkładka SFP),

EDS-518E

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    EDS-518E-4GTXSFP
    Managed Gigabit Ethernet switch with 14 10/100BaseT(X) ports, and 4 combo 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -10 to 60°C operating temperature
    In stock
    		Warranty:
    €1,489.00
    €1,831.47
    Login to check your price
    		Login to check your price
    EDS-518E-4GTXSFP
    Managed Gigabit Ethernet switch with 14 10/100BaseT(X) ports, and 4 combo 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -10 to 60°C operating temperature
    Availability:
    In stock
    Net price:
    €1,489.00
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    EDS-518E-4GTXSFP-T
    Managed Gigabit Ethernet switch with 14 10/100BaseT(X) ports, and 4 combo 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -40 to 75°C operating temperature
    		 In delivery Warranty:
    €1,600.00
    €1,968.00
    Login to check your price
    		Login to check your price
    EDS-518E-4GTXSFP-T
    Managed Gigabit Ethernet switch with 14 10/100BaseT(X) ports, and 4 combo 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -40 to 75°C operating temperature
    Availability: In delivery
    Net price:
    €1,600.00
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    EDS-518E-MM-SC-4GTXSFP
    Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with SC connectors, and 4 combo 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -10 to 60°C operating temperature
    		 Out of stock Warranty:
    €1,802.00
    €2,216.46
    Login to check your price
    		Login to check your price
    EDS-518E-MM-SC-4GTXSFP
    Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with SC connectors, and 4 combo 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -10 to 60°C operating temperature
    Availability: Out of stock
    Net price:
    €1,802.00
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    EDS-518E-MM-SC-4GTXSFP-T
    Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with SC connectors, and 4 combo 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -40 to 75°C operating temperature
    		 Out of stock Warranty:
    €1,908.00
    €2,346.84
    Login to check your price
    		Login to check your price
    EDS-518E-MM-SC-4GTXSFP-T
    Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with SC connectors, and 4 combo 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -40 to 75°C operating temperature
    Availability: Out of stock
    Net price:
    €1,908.00
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    EDS-518E-MM-ST-4GTXSFP
    Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with ST connectors, and 4 combo 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -10 to 60°C operating temperature
    		 Out of stock Warranty:
    €1,802.00
    €2,216.46
    Login to check your price
    		Login to check your price
    EDS-518E-MM-ST-4GTXSFP
    Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with ST connectors, and 4 combo 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -10 to 60°C operating temperature
    Availability: Out of stock
    Net price:
    €1,802.00
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    EDS-518E-MM-ST-4GTXSFP-T
    Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with ST connectors, and 4 combo 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -40 to 75°C operating temperature
    		 Out of stock Warranty:
    €1,908.00
    €2,346.84
    Login to check your price
    		Login to check your price
    EDS-518E-MM-ST-4GTXSFP-T
    Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with ST connectors, and 4 combo 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -40 to 75°C operating temperature
    Availability: Out of stock
    Net price:
    €1,908.00
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    EDS-518E-SS-SC-4GTXSFP
    Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 2 100BaseFX single-mode ports with SC connectors, and 4 combo 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -10 to 60°C operating temperature
    		 Out of stock Warranty:
    €2,035.00
    €2,503.05
    Login to check your price
    		Login to check your price
    EDS-518E-SS-SC-4GTXSFP
    Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 2 100BaseFX single-mode ports with SC connectors, and 4 combo 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -10 to 60°C operating temperature
    Availability: Out of stock
    Net price:
    €2,035.00
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    EDS-518E-SS-SC-4GTXSFP-T
    Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 2 100BaseFX single-mode ports with SC connectors, and 4 combo 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -40 to 75°C operating temperature
    		 Out of stock Warranty:
    €2,131.00
    €2,621.13
    Login to check your price
    		Login to check your price
    EDS-518E-SS-SC-4GTXSFP-T
    Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 2 100BaseFX single-mode ports with SC connectors, and 4 combo 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -40 to 75°C operating temperature
    Availability: Out of stock
    Net price:
    €2,131.00
    Login to check your price

Accessories

Description

The EDS-518E standalone, compact 18-port managed Ethernet switches have 4 combo Gigabit ports with built-in RJ45 or SFP slots for Gigabit fiber-optic communication. The 14 fast Ethernet ports have a variety of copper and fiber port combinations that give the EDS-518E Series greater flexibility for designing your network and application. The Ethernet redundancy technologies Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase the system reliability and availability of your network backbone. The EDS-518E also supports advanced management and security features.

In addition, the EDS-518E Series is designed specifically for harsh industrial environments with limited installation space and high protection level requirements, such as maritime, rail wayside, oil and gas, factory automation, and process automation.

Additional Features and Benefits

  • DHCP Option 82 for IP address assignment with different policies
  • Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring
  • IGMP snooping and GMRP for filtering multicast traffic
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
  • Port Trunking for optimum bandwidth utilization
  • Port mirroring for online debugging
  • Automatic warning by exception through email and relay output
  • SNMPv1/v2c/v3 for different levels of network management
  • RMON for proactive and efficient network monitoring
  • Fiber Check™ provides a comprehensive fiber Digital Diagnostic Monitoring (DDM) function and event warning on MST/MSC/SSC/SFP fiber ports
  • Bandwidth management to prevent unpredictable network status
  • Lock port function for blocking unauthorized access based on MAC address
  • Supports the ABC-02-USB (Automatic Backup Configurator) for system configuration backup/restore and firmware upgrade

Technical Specification

  • Input/Output Interface
Alarm Contact Channels 1, Relay output with current carrying capacity of 1 A @ 24 VDC
Buttons Reset button
Digital Input Channels 1
Digital Inputs +13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
  • Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) EDS-518E-4GTXSFP: 14
EDS-518E-MM-SC-4GTXSFP/MM-ST-4GTXSFP/SS-SC-4GTXSFP: 12

All models support:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) 4
10/100/1000BaseT(X) Ports (RJ45 connector) Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector) EDS-518E-MM-SC-4GTXSFP Series: 2
100BaseFX Ports (multi-mode ST connector) EDS-518E-MM-ST-4GTXSFP Series: 2
100BaseFX Ports (single-mode SC connector) EDS-518E-SS-SC-4GTXSFP Series: 2
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.3ad for Port Trunk with LACPEthernet Software Features



Filter 802.1Q VLAN, Port-based VLAN, GVRP, IGMP v1/v2/v3, GMRP
Industrial Protocols EtherNet/IP, Modbus TCP, PROFINET IO Device (Slave)
Management LLDP, Back Pressure Flow Control, BOOTP, Port Mirror, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
MIB Ethernet-like MIB, MIB-II, Bridge MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundancy Protocols Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Security Broadcast storm protection, HTTPS/SSL, TACACS+, SNMPv3, MAB authentication, Sticky MAC, NTP authentication, MAC ACL, Port Lock, RADIUS, SSH, SMTP with TLS
Time Management NTP Server/Client, SNTP
  • Switch Properties
IGMP Groups 2048
MAC Table Size 16 K
Max. No. of VLANs 64
Packet Buffer Size 1 Mbits
Priority Queues 4
VLAN ID Range VID 1 to 4094
  • USB Interface
Storage Port USB Type A
  • LED Interface
LED Indicators PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 100M (fiber port), Gigabit combo port, MSTR/HEAD, CPLR/TAIL
  • Serial Interface
Console Port USB-serial console (Type B connector)
  • DIP Switch Configuration
DIP Switches Turbo Ring, Master, Coupler, Reserve
  • Power Parameters
Connection 2 removable 4-contact terminal block(s)
Input Current EDS-518E-4GTXSFP Series: 0.37 A @ 24 VDC
EDS-518E-MM-SC-4GTXSFP/MM-ST-4GTXSFP/SS-SC-4GTXSFP: 0.41 A @ 24 VDC
Input Voltage 12/24/48/-48 VDC, Redundant dual inputs
Operating Voltage 9.6 to 60 VDC
Overload Current Protection Supported
Reverse Polarity Protection Supported
  • Physical Characteristics
Housing Metal
IP Rating IP30
Dimensions 94 x 135 x 137 mm (3.7 x 5.31 x 5.39 in)
Weight 1518 g (3.35 lb)
Installation DIN-rail mounting, Wall mounting (with optional kit)
  • Environmental Limits
Operating Temperature Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
Safety UL 508, EN 60950-1 (LVD)
EMC EN 61000-6-2/-6-4
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Hazardous Locations ATEX, Class I Division 2
Maritime DNV-GL, LR, ABS, NK
Power Substation IEC 61850-3, IEEE 1613
Railway EN 50121-4
Traffic Control NEMA TS2
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Vibration IEC 60068-2-6
  • MTBF
Time 723,953 hrs
Standards Telcordia (Bellcore), GB
