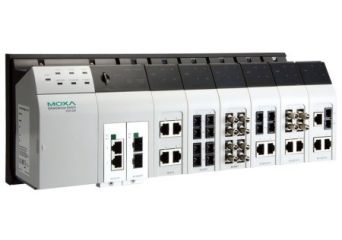

EDS-828

The EDS-828 Series features a versatile modular design that allows different combinations of fiber and copper modules, creating a wide array of connection options ideal for any automation network. The modular design lets you install up to 4 Gigabit ports and 24 Fast Ethernet ports. The EDS-828 Series is specially designed for redundant Gigabit network backbones and uses a modular configuration to provide a high degree of flexibility for network expansion. Top network performance, security, and reliability are assured through the EDS-828’s advanced management and security features.

The EDS-828 Series also features industrial-grade construction, a console port for automatic configuration backup, and an angled LED troubleshooting panel that can be conveniently viewed from both horizontal and vertical orientations. In addition to Layer 2 features, the EDS-828 Series is a high-performance Layer 3 Ethernet switch designed for network routing. The improved hardware technology built into the EDS-828 Series replaces the software logic used by traditional routers, offering better performance, and making the switch ideal for large-scale local area networks.

Additional Features and Benefits

• Layer 3 switching functionality to move data and information across networks
• Command line interface (CLI) for quickly configuring major managed functions
• Supports advanced VLAN capability with Q-in-Q tagging
• Software-based IEEE 1588 PTPv2 (Precision Time Protocol) for time synchronization of networks
• DHCP Option 82 for IP address assignment with different policies
• Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring
• Compatible with PROFINET protocol for transparent data transmission
• IGMP snooping and GMRP for filtering multicast traffic
• IEEE 802.1Q VLAN and GVRP protocol to ease network planning
• Digital inputs for integrating sensors and alarms with IP networks
• QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
• Port Trunking for optimum bandwidth utilization
• Access Control Lists (ACL) increase the flexibility and security of network management
• SNMPv1/v2c/v3 for different levels of network management
• RMON for proactive and efficient network monitoring
• Bandwidth management to prevent unpredictable network status
• Lock port function for blocking unauthorized access based on MAC address
• Port mirroring for online debugging
• Automatic warning by exception through email and relay output
• Configurable by Web browser, Telnet/serial console, CLI, Windows utility, and ABC-01 automatic backup configurator
• Redundant, dual DC power inputs
