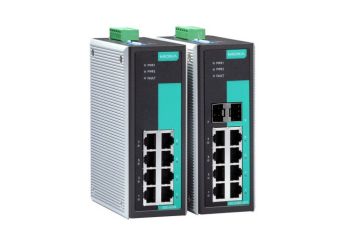

EDS-G308
8G-port full Gigabit unmanaged Ethernet switches
- Fiber-optic options for extending distance and improving electrical noise immunity
- Redundant dual 12/24/48 VDC power inputs
- Supports 9.6 KB jumbo frames
- Relay output warning for power failure and port break alarm
- Broadcast storm protection
- -40 to 75°C operating temperature range (-T models)
Price from €339.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-G308Unmanaged full Gigabit Ethernet switch with 8 10/100/1000BaseT(X) ports, 0 to 60°C operating temperatureIn delivery Warranty: €339.00€416.97Login to check your price EDS-G308Unmanaged full Gigabit Ethernet switch with 8 10/100/1000BaseT(X) ports, 0 to 60°C operating temperatureAvailability: In deliveryNet price:€339.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-G308-TUnmanaged full Gigabit Ethernet switch with 8 10/100/1000BaseT(X) ports, -40 to 75°C operating temperatureOut of stock Warranty: €412.00€506.76Login to check your price EDS-G308-TUnmanaged full Gigabit Ethernet switch with 8 10/100/1000BaseT(X) ports, -40 to 75°C operating temperatureAvailability: Out of stockNet price:€412.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-G308-2SFPUnmanaged full Gigabit Ethernet switch with 6 10/100/1000BaseT(X) ports, and 2 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slots for adding SFP-1G/1FE series Gigabit/fast Ethernet modules, 0 to 60°C operating temperatureIn stockWarranty: €419.00€515.37Login to check your price EDS-G308-2SFPUnmanaged full Gigabit Ethernet switch with 6 10/100/1000BaseT(X) ports, and 2 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slots for adding SFP-1G/1FE series Gigabit/fast Ethernet modules, 0 to 60°C operating temperatureAvailability:In stockNet price:€419.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-G308-2SFP-TUnmanaged full Gigabit Ethernet switch with 6 10/100/1000BaseT(X) ports, and 2 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slots for adding SFP-1G/1FE series Gigabit/fast Ethernet modules, -40 to 75°C operating temperatureIn stockWarranty: €490.00€602.70Login to check your price EDS-G308-2SFP-TUnmanaged full Gigabit Ethernet switch with 6 10/100/1000BaseT(X) ports, and 2 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slots for adding SFP-1G/1FE series Gigabit/fast Ethernet modules, -40 to 75°C operating temperatureAvailability:In stockNet price:€490.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 30W 24V 1.5AIn stockWarranty: €12.50€15.38Login to check your price DIN rail power supply 30W 24V 1.5AAvailability:In stockNet price:€12.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add19" Rackmont setIn stockWarranty: €166.00€204.18Login to check your price 19" Rackmont setAvailability:In stockNet price:€166.00
Description
The EDS-G308 switches are equipped with 8 Gigabit Ethernet ports and 2 fiber-optic ports, making them ideal for applications that demand high bandwidth. The EDS-G308 switches provide an economical solution for your industrial Gigabit Ethernet connections, and the built-in relay warning function alerts network managers when power failures or port breaks occur. The 4-pin DIP switches can be used for controlling broadcast protection, jumbo frames, and IEEE 802.3az energy saving. In addition, 100/1000 SFP speed switching is ideal for easy on-site configuration for any industrial automation application.
A standard-temperature model, which has an operating temperature range of -10 to 60°C, and a wide-temperature range model, which has an operating temperature range of -40 to 75°C, are available. Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The switches can be installed easily on a DIN rail or in distribution boxes.
Technical Specification
- Input/Output Interface
| Alarm Contact Channels | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
- Ethernet Interface
| 10/100/1000BaseT(X) Ports (RJ45 connector) |
EDS-G308/G308-T: 8 All models support: |
| Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) | EDS-G308-2SFP: 2 EDS-G308-2SFP-T: 2 |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseX IEEE 802.3az for Energy-Efficient Ethernet |
- DIP Switch Configuration
| Ethernet Interface | Broadcast storm protection, Jumbo Frame, IEEE 802.3az energy saving, 100/1000 SFP speed switching, Port break alarm |
- Switch Properties
| Jumbo Frame Size | 9.6 KB |
| MAC Table Size | 8 K |
| Packet Buffer Size | 4 Mbits |
| Processing Type | Store and Forward |
- Power Parameters
| Connection | 1 removable 6-contact terminal block(s) |
| Input Voltage | 12/24/48 VDC, Redundant dual inputs |
| Operating Voltage | 9.6 to 60 VDC |
| Reverse Polarity Protection | Supported |
| Input Current | EDS-G308: 0.29 A @ 24 VDC EDS-G308-2SFP: 0.31 A @ 24 VDC |
- Physical Characteristics
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions | 53 x 135 x 105 mm (2.08 x 5.31 x 4.13 in) |
| Weight | 880 g (1.94 lb) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
- Environmental Limits
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| Freefall | IEC 60068-2-32 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Hazardous Locations | ATEX, Class I Division 2 |
| Maritime | ABS, DNV-GL, LR, NK |
| Railway | EN 50121-4 |
| Safety | EN 60950-1, UL 508, EN 60950-1 (LVD) |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
- MTBF
| Time | 2,424,649 hrs |
| Standards | Telcordia (Bellcore), GB |
Download
