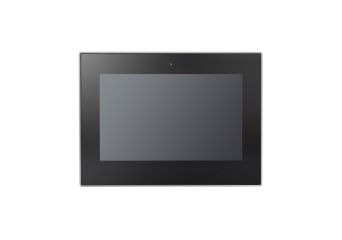

main product photo

EXPC-F2120W

12.1-inch flat-panel fanless industrial computers with Zone-2 certifications for hazardous locations

Manufacturer: MOXA
Manufacturer: MOXA
  • 12.1 inch 16:10 display
  • High-performance Tiger Lake Intel® Core™ i7/ Core™ i3 or Intel® Celeron® processor
  • Built-in light sensor for auto brightness control
  • 1200-nit sunlight-readable anti-glare display
  • Optical bonding of the display for deploying in harsh environments
  • Fanless thermal design for efficient heat dissipation in high-temperature environments
  • UL C1D2/C2D2, ATEX, and IECEx ZONE 2/Zone 22 compliant
  • Front IP66 and rear IP42 certified
  • -40 to 70°C operating temperature range
  • Options for 5G and Wi-Fi 6 connections
  • Designed for deploying in hazardous locations and for mission-critical applications
Price from €5,926.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 6 models

Promocja cenowa na model HDR-15-5

Product intended for professional use only
EXPC-F2120W

EXPC-F2120W

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    EXPC-F2120W-TL1-AC
    12.1-inch flat-panel fanless industrial computer with Intel® Celeron® 6305E processor, 1200-nit PCAP touchscreen, 4 Ethernet ports, 3 serial ports, 1 VGA port, 1 DisplayPort, 100 to 240 VAC power input, IP66 (front), IP42 (rear), -40 to 70°C operating temperature
    		 Out of stock Warranty:
    €5,926.00
    €7,288.98
    Login to check your price
    		Login to check your price
    EXPC-F2120W-TL1-AC
    12.1-inch flat-panel fanless industrial computer with Intel® Celeron® 6305E processor, 1200-nit PCAP touchscreen, 4 Ethernet ports, 3 serial ports, 1 VGA port, 1 DisplayPort, 100 to 240 VAC power input, IP66 (front), IP42 (rear), -40 to 70°C operating temperature
    Availability: Out of stock
    Net price:
    €5,926.00
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    EXPC-F2120W-TL1-DC
    12.1-inch flat-panel fanless industrial computer with Intel® Celeron® 6305E processor, 1200-nit PCAP touchscreen, 4 Ethernet ports, 3 serial ports, 1 VGA port, 1 DisplayPort, 9 to 36 VDC power input, IP66 (front), IP42 (rear), -40 to 70°C operating temperature
    		 Out of stock Warranty:
    €5,926.00
    €7,288.98
    Login to check your price
    		Login to check your price
    EXPC-F2120W-TL1-DC
    12.1-inch flat-panel fanless industrial computer with Intel® Celeron® 6305E processor, 1200-nit PCAP touchscreen, 4 Ethernet ports, 3 serial ports, 1 VGA port, 1 DisplayPort, 9 to 36 VDC power input, IP66 (front), IP42 (rear), -40 to 70°C operating temperature
    Availability: Out of stock
    Net price:
    €5,926.00
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    EXPC-F2120W-TL3-AC
    12.1-inch flat-panel fanless industrial computer with Intel® Core™ i3-1115G4E processor, 1200-nit PCAP touchscreen, 4 Ethernet ports, 3 serial ports, 1 VGA port, 1 DisplayPort, 100 to 240 VAC power input, IP66 (front), IP42 (rear), -40 to 70°C operating temperature
    		 Out of stock Warranty:
    €6,400.00
    €7,872.00
    Login to check your price
    		Login to check your price
    EXPC-F2120W-TL3-AC
    12.1-inch flat-panel fanless industrial computer with Intel® Core™ i3-1115G4E processor, 1200-nit PCAP touchscreen, 4 Ethernet ports, 3 serial ports, 1 VGA port, 1 DisplayPort, 100 to 240 VAC power input, IP66 (front), IP42 (rear), -40 to 70°C operating temperature
    Availability: Out of stock
    Net price:
    €6,400.00
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    EXPC-F2120W-TL3-DC
    12.1-inch flat-panel fanless industrial computer with Intel® Core™ i3-1115G4E processor, 1200-nit PCAP touchscreen, 4 Ethernet ports, 3 serial ports, 1 VGA port, 1 DisplayPort, 9 to 36 VDC power input, IP66 (front), IP42 (rear), -40 to 70°C operating temperature
    		 Out of stock Warranty:
    €6,400.00
    €7,872.00
    Login to check your price
    		Login to check your price
    EXPC-F2120W-TL3-DC
    12.1-inch flat-panel fanless industrial computer with Intel® Core™ i3-1115G4E processor, 1200-nit PCAP touchscreen, 4 Ethernet ports, 3 serial ports, 1 VGA port, 1 DisplayPort, 9 to 36 VDC power input, IP66 (front), IP42 (rear), -40 to 70°C operating temperature
    Availability: Out of stock
    Net price:
    €6,400.00
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    EXPC-F2120W-TL7-AC
    12.1-inch flat-panel fanless industrial computer with Intel® Core™ i7-1185G7E processor, 1200-nit PCAP touchscreen, 4 Ethernet ports, 3 serial ports, 1 VGA port, 1 DisplayPort, 100 to 240 VAC power input, IP66 (front), IP42 (rear), -40 to 70°C operating temperature
    		 Out of stock Warranty:
    €7,585.00
    €9,329.55
    Login to check your price
    		Login to check your price
    EXPC-F2120W-TL7-AC
    12.1-inch flat-panel fanless industrial computer with Intel® Core™ i7-1185G7E processor, 1200-nit PCAP touchscreen, 4 Ethernet ports, 3 serial ports, 1 VGA port, 1 DisplayPort, 100 to 240 VAC power input, IP66 (front), IP42 (rear), -40 to 70°C operating temperature
    Availability: Out of stock
    Net price:
    €7,585.00
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    EXPC-F2120W-TL7-DC
    12.1-inch flat-panel fanless industrial computer with Intel® Core™ i7-1185G7E processor, 1200-nit PCAP touchscreen, 4 Ethernet ports, 3 serial ports, 1 VGA port, 1 DisplayPort, 9 to 36 VDC power input, IP66 (front), IP42 (rear), -40 to 70°C operating temperature
    		 Out of stock Warranty:
    €7,585.00
    €9,329.55
    Login to check your price
    		Login to check your price
    EXPC-F2120W-TL7-DC
    12.1-inch flat-panel fanless industrial computer with Intel® Core™ i7-1185G7E processor, 1200-nit PCAP touchscreen, 4 Ethernet ports, 3 serial ports, 1 VGA port, 1 DisplayPort, 9 to 36 VDC power input, IP66 (front), IP42 (rear), -40 to 70°C operating temperature
    Availability: Out of stock
    Net price:
    €7,585.00
    Login to check your price

Description

Introduction

The EXPC-F2120W Series consists of 12.1-inch panel computers with a 11th Gen Intel Core™ i processor that deliver a reliable, durable, and versatile platform for use in industrial, hazardous, and mission-critical environments. The EXPC-F2120W panel computers come with a rich set of communication interfaces to satisfy all your industrial-application scenarios. The panel computers are also provided with a DisplayPort and VGA video outputs for extending the display.

The EXPC-F2120W panel computers come in a fanless design for operations in the -40 to 70°C temperature range and a streamlined enclosure for efficient heat dissipation, making them the most reliable industrial platforms available for harsh, hot, outdoor environments such as oil and gas fields, drilling platforms, and power stations, as well as smart heater solutions. The panel computers are also specifically designed with sunlight-readable features such as a 1200-nit LCD panel, projected-capacitive, glove-friendly, multi-touch screen, optical bonding, and anti-glare design, to provide an excellent user experience for outdoor applications.

Appearance

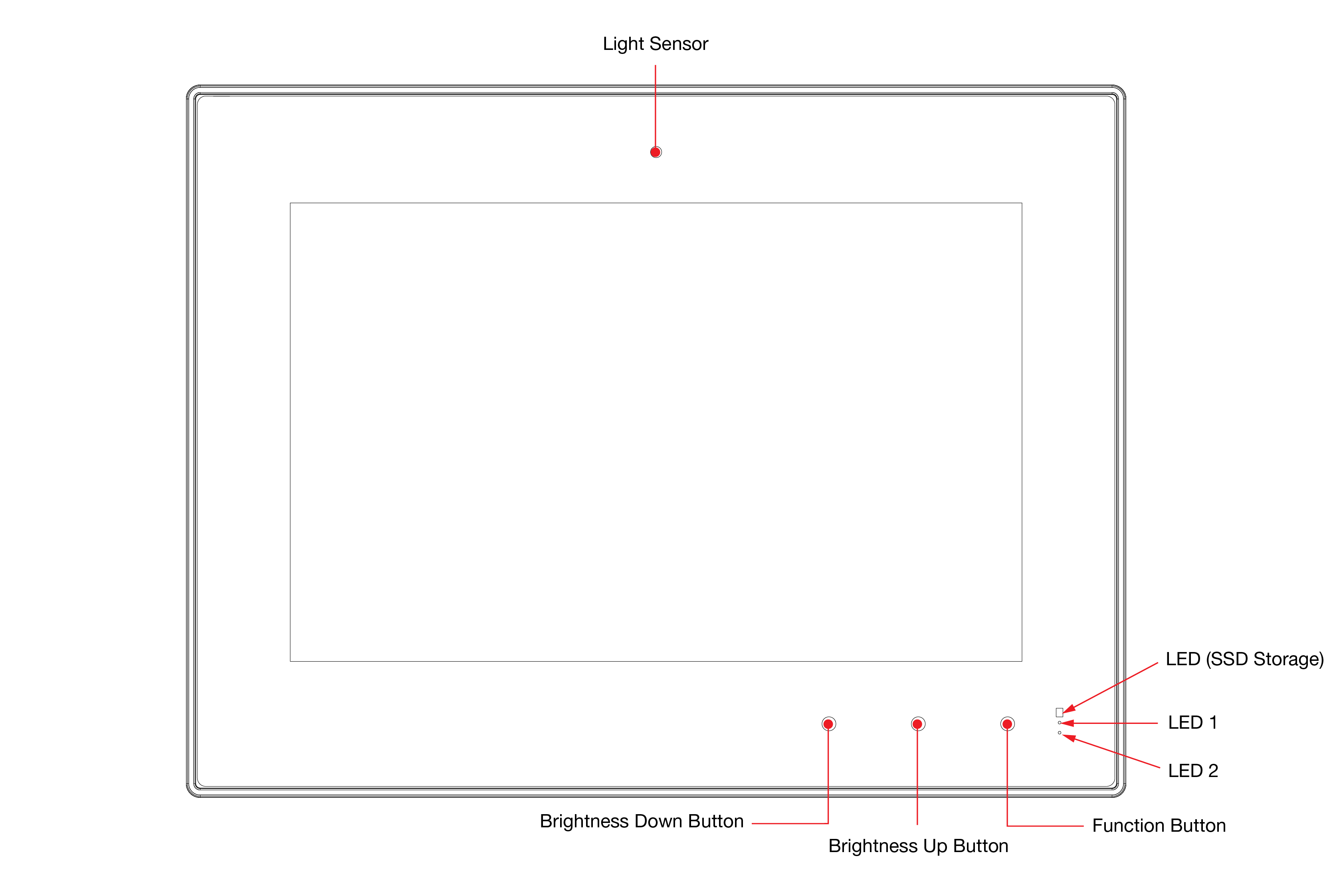

Front View



Bottom View - Models With AC Power Input

Bottom View - Models With DC Power Input

Side View

Technical Specification

  • Computer
CPUTL1 Models: Intel® Celeron® 6305E
TL3 Models: Intel® Core™ i3-1115G4E
TL7 Models: Intel® Core™ i7-1185G7E
Graphics ControllerIntel® Core™ i7 Models: Intel® Iris® Xe Graphics
Intel® Celeron®, Core™ i3 Models: Intel® UHD Graphics
System Memory Pre-installed16 GB (64 GB max)
System Memory SlotSODIMM DDR4 slots x 2, up to 64 GB
Pre-installed OSOS is not pre-installed
OS installation via CTOS
Supported OSWindows 10 Enterprise LTSC 21H2
Windows 11 Professional 23H2 64-bit
Debian 11 (driver)
Storage SlotM.2 B key x 1 for SSD (internal, optional)
CFexpress slots x 1 (external, default)
  • Computer Interface
Ethernet PortsAuto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
Serial PortsRS-232/422/485 ports x 3, software selectable (DB9 male)
USB 3.0USB 3.0 hosts x 2, type-A connectors
USB 2.0USB 2.0 hosts x 2, type-A connectors
Audio Input/OutputLine in x 1, mic-out x 1, 3.5 mm phone jack
Video OutputDisplayPort x 1
VGA x 1, 15-pin D-sub connector (female)
Expansion SlotsM.2 B key slot x 1 for 5G module
M.2 E key slot x 1 for Wi-Fi module
TPMTPM v2.0
Remote ManagementIntel® Active Management Technology (AMT) support
  • LED Indicators
SystemPower x 1
Storage x 1, SSD
LAN2 per port, configurable by BIOS settings or via a Moxa software utility
Serial2 per port, configurable by BIOS settings or via a Moxa software utility
  • Display
Active Display Area304.128 (H) x 228.096 (V) mm
Aspect Ratio16:10
Contrast Ratio750:1
Light Intensity (Brightness)1200 nits
Max. No. of Colors16.7M (8-bit/color)
Panel Size12.1 in
Panel TypeAWV
Pixel Pitch (RGB)0.294 (H) x 0.294 (V) mm
Pixels1280 x 800
Response Time18 ms (TR, gray to gray)
12 ms (TD, gray to gray)
Viewing AnglesHorizontal: 85°/85°
Vertical: 85°/85°
  • Touch Function
Touch TypeProjective Capacitive touchscreen (PCAP)
GGG sensor with optical bonding
Touch Support Points4 points
(max multi-touch points)
1 point
(glove-friendly design)
  • Serial Interface
Baudrate50 bps to 115.2 kbps
Data Bits5, 6, 7, 8
Flow ControlRTS/CTS, XON/XOFF
ADDC (automatic data direction control) for RS-485
RTS Toggle (RS-232 only)
ParityNone, Even, Odd, Space, Mark
Stop Bits1, 1.5, 2
  • Serial Signals
RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND
  • Power Parameters
Input VoltageDC Models: 9 to 36 VDC
AC Models: 100 to 240 VAC
Power Consumption60 W (max)
100 W (with thermal heater)
  • Physical Characteristics
HousingAluminum
IP RatingIP66 (front)
IP42 (rear; with all IOs plugged in)
Dimensions336.69 x 255.17 x 94.05 mm (13.25 x 10.05 x 3.70 in)
Weight6,200 g (13.67 lb)
  • Environmental Limits
Operating Temperature-40 to 70°C (-40 to 158°F)
Storage Temperature (package included)-45 to 75°C (-49 to 167°F)
Altitude3000 m
  • Standards and Certifications
EMCEN 55032/35
EN 61000-6-2/-6-4
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; 1.8, 2.6, 3.5, 5 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV(AC), 1 kV(DC); Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV (AC), 0.5 kV (DC L-L), 1 kV (DC L-G); Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Hazardous LocationsEN / IEC 60079-0
EN / IEC 60079-7
EN / IEC 60079-15
Certification process underway
Mechanical Protection RatingIEC 60529, IP code
SafetyUL 62368-1
EN 62368-1
IEC 62368-1
ShockIEC 60068-2-27 compliant (with CFexpress card, 20G)
VibrationIEC 60068-2-27 compliant (with CFexpress card, 20G)
UV ProtectionIEC60068-2-5
CIE85: 300 to 3000 nm (included UV, visible, IR); 1000 hrs (procedure C; continuously for 24 hrs)
  • Declaration
Green ProductRoHS, CRoHS, WEEE
  • Warranty
Warranty PeriodLCD: 1 year
System: 3 years
DetailsSee www.moxa.com/warranty
