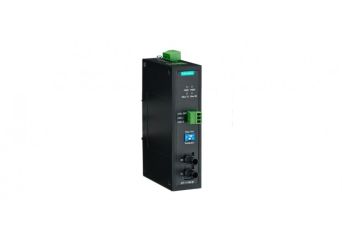

ICF-1170I

Industrial CAN-to-fiber converters

Manufacturer: MOXA

Transmits data up to 2 km over optical fiber
Converts CAN signals to fiber and fiber to CAN signals
Baudrate up to 1 Mbps
Dual power inputs for redundancy
DIP switch for 120 ohm terminal resistance
DIP switch for fiber test mode
LEDs for Fiber Tx, Fiber Rx, Power 1, Power 2
Wide-temperature model available for -40 to 85°C environments
Fully compatible with the ISO 11898 standard

Price from €375.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Models
Accessories
Description
Technical Specification
Download
Recommended Products

ICF-1170I

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
ICF-1170I-M-ST Industrial CAN bus to Fiber Optic Converter, ST Multi-mode, 0 to 60? Temperature	In stock	Warranty:		€375.00 €461.25 Login to check your price	Login to check your price	pcs.

ICF-1170I-M-ST

Industrial CAN bus to Fiber Optic Converter, ST Multi-mode, 0 to 60? Temperature

Availability:

In stock

Net price:

€375.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
ICF-1170I-M-ST-T Industrial CAN bus to Fiber Optic Converter, ST Multi-mode, -40 to 85 ? Temperature	In stock	Warranty:		€433.00 €532.59 Login to check your price	Login to check your price	pcs.

ICF-1170I-M-ST-T

Industrial CAN bus to Fiber Optic Converter, ST Multi-mode, -40 to 85 ? Temperature

Availability:

In stock

Net price:

€433.00

Accessories

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
MDR-20-12 DIN rail power supply 20W 12V 1.67A	In stock	Warranty:		€12.70 €15.62 Login to check your price	Login to check your price	pcs. 72 pieces in box

MDR-20-12

DIN rail power supply 20W 12V 1.67A

Availability:

In stock

Net price:

€12.70

Description

The ICF-1170I Series CAN-to-fiber converters are used to convert CAN signals from copper to optical fiber. The converters come with 2 kV optical isolation for the CAN bus system and dual power inputs with alarm contact relay to ensure that your CAN bus system will remain online.

Fiber Test Mode

Fiber Test Mode can be used to test the fiber cable between two ICF-1170I units, and it provides a simple way to determine if the fiber cable is transmitting data correctly. When in Fiber Test Mode, the fiber transceiver (Tx) will continuously send out a data signal and the Fiber Tx LED will light up. On the other side of the connection, when the ICF-1170I fiber transceiver (Rx) receives the data signal from the Tx side, the Fiber Rx LED will light up.

Technical Specification

Serial Interface

Optical Fiber	100BaseFX ports (multi-mode ST connector)
Optical Fiber

CAN Interface

Isolation	2 kV (built-in)
No. of Ports	1
Signals	CAN_L, CAN_H, CAN Signal GND
Terminator	N/A, 120 ohms (by DIP)

Power Parameters

Input Current	221 mA @ 12 to 48 VDC
Power Consumption	221 mA @ 12 to 48 VDC
Input Voltage	12 to 48 VDC
No. of Power Inputs	2
Overload Current Protection	Supported
Power Connector	Terminal block (for DC models)

Physical Characteristics

Housing	Metal
IP Rating	IP30
Dimensions	30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in)
Weight	178 g (0.39 lb)
Installation	DIN-rail mounting

Environmental Limits

Operating Temperature	ICF-1170I-M-ST: 0 to 60°C (32 to 140°F) ICF-1170I-M-ST-T: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
Safety	EN 62368-1
Environmental Testing	IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3
Vibration	IEC 60068-2-6
