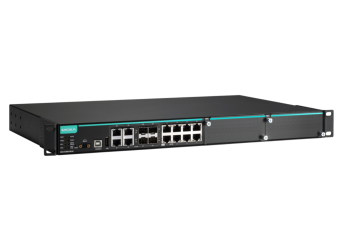

IKS-6728A

24+4G-port Gigabit modular Ethernet switches

Manufacturer: MOXA
Manufacturer: MOXA
  • 4 Gigabit combo ports for high-bandwidth communication
  • -40 to 75°C operating temperature range at 720 W full loading
  • Supports MXstudio for easy, visualized industrial network management
  • V-ON™ ensures millisecond-level multicast data and video network recovery

Price from €1,535.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 6 models

Promocja cenowa na model HDR-15-5

Models

Filter: ()
Filters
Filters()
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    IKS-6728A-4GTXSFP-HV-T
    Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, and 2 slots for fast Ethernet modules, front cabling, 1 isolated power supply ( 85-264 VAC), -40 to 75°C
    In stock
    Warranty:
    €1,535.00
    €1,888.05
    Login to check your price
    IKS-6728A-4GTXSFP-HV-T
    Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, and 2 slots for fast Ethernet modules, front cabling, 1 isolated power supply ( 85-264 VAC), -40 to 75°C
    Availability:
    In stock
    Net price:
    €1,535.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    IKS-6728A-4GTXSFP-HV-HV-T
    Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, and 2 slots for fast Ethernet modules, front cabling, 2 isolated power supplies (85-264 VAC), -40 to 75°C
    In delivery Warranty:
    €1,846.00
    €2,270.58
    Login to check your price
    IKS-6728A-4GTXSFP-HV-HV-T
    Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, and 2 slots for fast Ethernet modules, front cabling, 2 isolated power supplies (85-264 VAC), -40 to 75°C
    Availability: In delivery
    Net price:
    €1,846.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    IKS-6728A-4GTXSFP-48-T
    Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, and 2 slots for fast Ethernet modules, front cabling, 1 isolated power supply (48 VDC), -40 to 75°C
    Out of stock Warranty:
    €1,900.00
    €2,337.00
    Login to check your price
    IKS-6728A-4GTXSFP-48-T
    Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, and 2 slots for fast Ethernet modules, front cabling, 1 isolated power supply (48 VDC), -40 to 75°C
    Availability: Out of stock
    Net price:
    €1,900.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    IKS-6728A-4GTXSFP-48-48-T
    Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, and 2 slots for fast Ethernet modules, front cabling, 2 isolated power supplies (48 VDC), -40 to 75°C
    In stock
    Warranty:
    €2,198.00
    €2,703.54
    Login to check your price
    IKS-6728A-4GTXSFP-48-48-T
    Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, and 2 slots for fast Ethernet modules, front cabling, 2 isolated power supplies (48 VDC), -40 to 75°C
    Availability:
    In stock
    Net price:
    €2,198.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    IKS-6728A-4GTXSFP-24-T
    Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, and 2 slots for fast Ethernet modules, front cabling, 1 isolated power supply (24 VDC), -40 to 75°C
    In delivery Warranty:
    €1,900.00
    €2,337.00
    Login to check your price
    IKS-6728A-4GTXSFP-24-T
    Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, and 2 slots for fast Ethernet modules, front cabling, 1 isolated power supply (24 VDC), -40 to 75°C
    Availability: In delivery
    Net price:
    €1,900.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    IKS-6728A-4GTXSFP-24-24-T
    Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, and 2 slots for fast Ethernet modules, front cabling, 2 isolated power supplies (24 VDC), -40 to 75°C
    Out of stock Warranty:
    €2,198.00
    €2,703.54
    Login to check your price
    IKS-6728A-4GTXSFP-24-24-T
    Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, and 2 slots for fast Ethernet modules, front cabling, 2 isolated power supplies (24 VDC), -40 to 75°C
    Availability: Out of stock
    Net price:
    €2,198.00

Accessories

Description

The IKS-6728A Series is designed to meet the demands of mission-critical applications for business and industry. The IKS-6728A come with up to 24 10/100BaseT(X) and 4 combo Gigabit Ethernet ports. These Ethernet switches also support a variety of management functions, including STP/RSTP, Turbo Ring, Turbo Chain, IGMP, VLAN, QoS, RMON, bandwidth management, and port mirroring.



Additional Features and Benefits

  • Command line interface (CLI) for quickly configuring major managed functions
  • DHCP Option 82 for IP address assignment with different policies
  • Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
  • IGMP snooping and GMRP for filtering multicast traffic
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
  • IEEE 802.3ad, LACP for optimum bandwidth utilization
  • TACACS+, IEEE 802.1X, SNMPv3, HTTPS, and SSH to enhance network security
  • SNMPv1/v2c/v3 for different levels of network management
  • RMON for proactive and efficient network monitoring
  • Bandwidth management prevents unpredictable network status with “Lock port” to restrict access to authorized MAC addresses
  • Port mirroring for online debugging
  • Automatic warning by exception through email and relay output
  • Automatic recovery of connected device’s IP addresses
  • Line-swap fast recovery
  • Configurable by web browser, Telnet/serial console, CLI, Windows utility, and ABC-02-USB automatic backup configurator

Technical Specification

  • Input/Output Interface
Alarm Contact Channels 1 relay output with current carrying capacity of 1 A @ 24 VDC
  • Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) 8
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP) 4
Module 2 modular slots for any 8-port or 6-port Interface Modules with 10/100BaseT(X), 100BaseFX (SC/ST connector), 100Base PoE/PoE+, or 100Base SFP
Standards IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1X for authentication
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
  • Ethernet Software Features
Management Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
Filter 802.1Q, GMRP, GVRP, IGMP v1/v2/v3
Redundancy Protocols Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, V-ON
Security Access control list, Broadcast storm protection, HTTPS/SSL, MAB authentication, NTP authentication, Port Lock, RADIUS, SSH, TACACS+
Time Management NTP Server/Client, SNTP
Industrial Protocols EtherNet/IP, Modbus TCP, PROFINET
MIB Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
  • Switch Properties
IGMP Groups 2048
Jumbo Frame Size 9.6 KB
MAC Table Size 16 K
Max. No. of VLANs 64
Packet Buffer Size 12 Mbits
Priority Queues 4
VLAN ID Range VID 1 to 4094
  • USB Interface
Storage Port USB Type A
  • Serial Interface
Console Port USB-serial console (Type B connector)
  • Power Parameters
Input Voltage IKS-6728A-4GTXSFP-24-T: 24 VDC
IKS-6728A-4GTXSFP-24-24-T: 24 VDC (redundant dual inputs)
IKS-6728A-4GTXSFP-48-T: 48 VDC
IKS-6728A-4GTXSFP-48-48-T: 48 VDC (redundant dual inputs)
IKS-6728A-4GTXSFP-HV-T: 110/220 VAC
IKS-6728A-4GTXSFP-HV-HV-T: 110/220 VAC (redundant dual inputs)
Operating Voltage IKS-6728A-4GTXSFP-HV-T: 85 to 264 VAC
IKS-6728A-4GTXSFP-HV-HV-T: 85 to 264 VAC
IKS-6728A-4GTXSFP-24-T: 18 to 36 VDC
IKS-6728A-4GTXSFP-24-24-T: 18 to 36 VDC
IKS-6728A-4GTXSFP-48-T: 36 to 72 VDC
IKS-6728A-4GTXSFP-48-48-T: 36 to 72 VDC
Overload Current Protection Supported
Reverse Polarity Protection Supported
Input Current IKS-6728A-4GTXSFP-24-T/4GTXSFP-24-24-T: 0.36 A @ 24 VDC
IKS-6728A-4GTXSFP-48-T/4GTXSFP-48-48-T: 0.19 A @ 48 VDC
IKS-6728A-4GTXSFP-HV-T/4GTXSFP-HV-HV-T: 0.28/0.14 A @ 110/220 VAC
  • Physical Characteristics
IP Rating IP30
Dimensions 440 x 44 x 280 mm (17.32 x 1.37 x 11.02 in)
Weight 4100 g (9.05 lb)
Installation Rack mounting
  • Environmental Limits
Operating Temperature -40 to 75°C (-40 to 167°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
Freefall IEC 60068-2-32
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Railway EN 50121-4
Maritime IKS-6728A Series non-PoE models: ABS, CCS, DNV-GL, LR, NK
Safety EN 60950-1, UL 60950-1
Shock IEC 60068-2-27
Vibration IEC 60068-2-6
  • MTBF
Time 120,731 hrs
Standards Telcordia (Bellcore), GB
