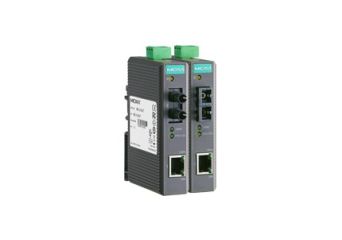

IMC-21

Entry-level industrial 10/100BaseT(X)-to-100BaseFX media converters

Manufacturer: MOXA

Multi-mode or single-mode, with SC or ST fiber connector
Link Fault Pass-Through (LFPT)
DIP switches to select FDX/HDX/10/100/Auto/Force

Price from €160.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 3 models

Promocja cenowa na model HDR-15-5

Product intended for professional use only

Models
Accessories
Description
Technical Specification
Download
Recommended Products

IMC-21

Models

Filter: ()

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
IMC-21-M-SC Entry-level Industrial Media Converter, multi mode, SC, -10 to 60°C	In stock	Warranty:		€160.00 €196.80 Login to check your price	Login to check your price	pcs.

IMC-21-M-SC

Entry-level Industrial Media Converter, multi mode, SC, -10 to 60°C

Availability:

In stock

Net price:

€160.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
IMC-21-M-ST Entry-level Industrial Media Converter, multi mode, ST, -10 to 60°C	In stock	Warranty:		€182.00 €223.86 Login to check your price	Login to check your price	pcs.

IMC-21-M-ST

Entry-level Industrial Media Converter, multi mode, ST, -10 to 60°C

Availability:

In stock

Net price:

€182.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
IMC-21-S-SC Entry-level Industrial Media Converter, single mode, SC, -10 to 60°C	In stock	Warranty:		€227.00 €279.21 Login to check your price	Login to check your price	pcs.

IMC-21-S-SC

Entry-level Industrial Media Converter, single mode, SC, -10 to 60°C

Availability:

In stock

Net price:

€227.00

Accessories

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
HDR-30-24 DIN rail power supply 30W 24V 1.5A	In stock	Warranty:		€13.40 €16.48 Login to check your price	Login to check your price	pcs. 96 pieces in box

HDR-30-24

DIN rail power supply 30W 24V 1.5A

Availability:

In stock

Net price:

€13.40

Description

The IMC-21 industrial media converters are entry-level 10/100BaseT(X)-to-100BaseFX media converters designed to provide reliable and stable operation in harsh industrial environments. The converters are a cost-effective solution that run on either a 12 or 48 VDC power input and can operate reliably in temperatures ranging from -10 to 60°C. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The IMC-21 converters are easy to mount on a DIN rail or in distribution boxes.

Technical Specification

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)	1
100BaseFX Ports (multi-mode SC connector)	IMC-21-M-SC: 1
100BaseFX Ports (multi-mode ST connector)	IMC-21-M-ST: 1
100BaseFX Ports (single-mode SC connector)	IMC-21-S-SC: 1
Magnetic Isolation Protection	1.5 kV (built-in)
Optical Fiber

Power Parameters

Input Current	271 mA @ 12 to 48 VDC
Input Voltage	12 to 48 VDC
Overload Current Protection	Supported
Power Consumption	271 mA @ 12 to 48 VDC

Physical Characteristics

Housing	Plastic
IP Rating	IP30
Dimensions	25 x 109 x 97 mm (0.98 x 4.29 x 3.82 in)
Weight	125 g (0.27 lb)
Installation	DIN-rail mounting

Environmental Limits

Operating Temperature	-10 to 60°C (14 to 140°F)
Storage Temperature (package included)	-40 to 70°C (-40 to 158°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
Environmental Testing	IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3
Safety	EN 60950-1, UL 60950-1
Vibration	IEC 60068-2-6
