- 24-inch display, 16:9 aspect ratio
- 300-nit or sunlight-readable 1000-nit LED backlight
- Color calibrated for ECDIS compliance (available by CTOS)
- Full range dimming, 0 to 100%
- SavvyTouch display controls
- Built-in RS-232/422/485 interfaces
- Dual power supplies (AC & DC)
- IP54-rated front panel (IP66 available by request)
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMD-224X24-inch display, 16:9 aspect ratio, full HD (1920x1080), LED backlighting, RS-232 & RS-422/485 serial ports, dual-power supply (AC/DC)Out of stock Warranty: MD-224X24-inch display, 16:9 aspect ratio, full HD (1920x1080), LED backlighting, RS-232 & RS-422/485 serial ports, dual-power supply (AC/DC)Availability: Out of stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMD-224Z24-inch display, 16:9 aspect ratio, full HD (1920x1080), projected-capacitive touch panel, LED backlighting, RS-232 & RS-422/485 serial ports, dual-power supply (AC/DC)Out of stock Warranty: MD-224Z24-inch display, 16:9 aspect ratio, full HD (1920x1080), projected-capacitive touch panel, LED backlighting, RS-232 & RS-422/485 serial ports, dual-power supply (AC/DC)Availability: Out of stock-
Description

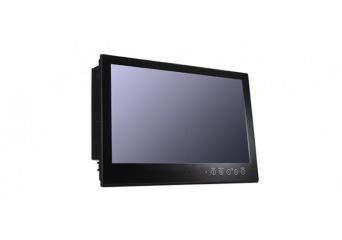

The MD-224 Series of marine displays come with full range dimming, wide viewing angles, and optional optical bonding. These displays are built with a small-profile modular design that allows easier integration into industrial marine systems, thereby reducing deployment costs and overall time-to-market.
The innovative and user-friendly SavvyTouch display controls offer several unique features not found in most marine display consoles: a proximity sensor for convenient adjustments in dark conditions, an info button for immediate updates of power status, and a quick-switch to adjust between day, dusk, and night-time ECDIS modes (for color-calibrated ECDIS models only).
The MD-224 Series displays are compliant with IEC 60945, DNV, ABS, and IACS E10, making them suitable for maritime applications. Their IP54-rated (IP66-rated models available on request) enclosure provides additional protection against dust and moisture above and beyond the limits established by these international standards bodies.
ECDIS-approved models are also available, offering an excellent HMI solution for ECDIS charting and navigation stations.
Technical Specification
- Display
| Aspect Ratio | 16:9 |
| Contrast Ratio | 5,000:1 |
| Max. No. of Colors | 16.7M (8-bit/color) |
| Panel Size | 24-inch viewable image |
| Panel Type | MVA |
| Pixels | 1920 x 1080 |
| Response Time | 25 ms (gray to gray) |
| Viewing Angles | 178°/178° |
| Light Intensity (Brightness) | MD-224X/224Z: 300 cd/m2 MD-224Z-HB: 1000 cd/m2 |
- Computer Interface
| Serial Ports | RS-232 ports x 1 (DB9 male) RS-232/422/485 ports x 1, software-selectable (terminal block) |
| Video Input | DVI-D x 1, 29-pin DVI-D connectors (female) VGA x 1, 15-pin D-sub connector (female) |
- Touch Function
| Touch Type | MD-224Z/224Z-HB: Capacitive Touch (PCAP) MD-224X: None |
| Touch Support Points | MD-224Z/224Z-HB: 4 points |
- Serial Interface
| Baudrate | 50 bps to 115.2 kbps |
| Data Bits | 5, 6, 7, 8 |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 1.5, 2 |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
- Power Parameters
| Input Voltage | 100 to 240 VAC, 24 VDC (18 to 30 V) |
| Power Consumption | 40 W (max.) |
- Physical Characteristics
| Housing | Metal |
| IP Rating | MD-224X: IP54, front MD-224X: IP22, rear MD-224Z: IP54, front MD-224Z: IP22, rear MD-224Z-HB: IP66, front MD-224Z-HB: IP22, rear |
| Dimensions | 595 x 393 x 75 mm (23.43 x 15.47 x 2.95 in) |
| Weight | 9,570 g (21.10 lb) |
| Installation | Desktop, Panel mounting, VESA mounting |
- Environmental Limits
| Operating Temperature | -15 to 55°C (5 to 131°F) |
| Storage Temperature (package included) | -20 to 60°C (-4 to 140°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 1kV |
| Maritime | ABS, CCS, DNV-GL, IEC 60945 |
| Safety | UL 60950-1 |
