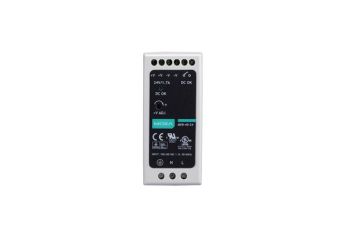

MDR-40-24

Industrial power supply for operation in a wide temperature range, 24VDC output voltage, 40W power

Manufacturer: MOXA

High inrush current protection
24 VDC power output
-20 to 70°C operating temperature range
85 to 264 VAC or 120 to 370 VDC input

Price from €75.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Product intended for professional use only

Models
Description
Technical Specification
Download
Recommended Products

MDR-40-24

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
MDR-40-24 (Moxa) 40W/1.7A DIN-Rail 24V VDC power supply with universal 85 to 264 VAC input: -20~70?	In stock	Warranty:		€75.00 €92.25 Login to check your price	Login to check your price	pcs.

MDR-40-24 (Moxa)

40W/1.7A DIN-Rail 24V VDC power supply with universal 85 to 264 VAC input: -20~70?

Availability:

In stock

Net price:

€75.00

Description

The MDR Power Supply Series supports inrush current protection of 30 A at 115 VAC and 60 A at 230 VAC. The series has an operating temperature range of -20 to 70°C and a three year warranty, which ensures suitability for operating in harsh environments. In addition, the MDR Series has passed a 100% full load burn-in test, is UL/CUL listed, TÜV/CB certified, and CE marked. This models is available with output 40 W with 24 VDC output.

Technical Specification

Specyfication

Power	40W
Input voltage	85-264 VAC (47-63 Hz) or 120-370 VDC
Output	40 W, 24 VDC, 0-1.7 A
Over-voltage Protection	31.2-36 V
Overload Protection	105-150%
Type	Constant Current Limiting
Reset	Auto Recovery
Inrush Current	30 A and 115 V, or 60 A and 230 V
Safety Standards	TÜV EN60950-1, UL508 Approved
EMC Standards	CISPR22 (EN55022) Class B, EN61000-4-2/3/4/5/6/8/11, ENV50204, EN61000-3-2, EN50082-2
Dimensions	40 x 90 x 100 mm
Weight	260 g
Operating Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	20 to 90% RH
