MGate 5135/5435 Series

1 and 4-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways

Manufacturer: MOXA
Manufacturer: MOXA
  • Protocol conversion between Modbus and EtherNet/IP
  • Supports EtherNet/IP adapter
  • Supports Modbus RTU/ASCII/TCP client
  • Flexible deployment with Ethernet cascading and dual subnet
  • Embedded traffic monitoring/diagnostic information for easy troubleshooting
  • Easy device configuration via a web-based console
  • microSD card for configuration backup/duplication
  • Supports dual redundant DC power inputs and 1 relay output
  • -40 to 75°C wide operating temperature models available
  • Serial port with 2 kV isolation protection
  • Developed according to IEC 62443-4-2 with Secure Boot
Price from €601.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €500

See 4 models

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price

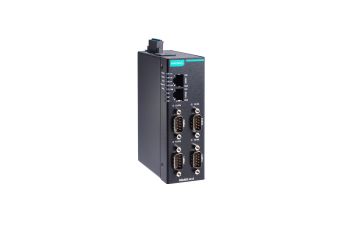

    MGate 5135
    1-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, -10 to 60°C operating temperature
    In stock
    Warranty: 60 months
    €601.00
    €739.23
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    MGate 5135-T
    1-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, -40 to 75°C operating temperature
    Out of stock Warranty: 60 months
    €753.00
    €926.19
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    MGate 5435
    4-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, -10 to 60°C operating temperature
    Out of stock Warranty: 60 months
    €1,102.00
    €1,355.46
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    MGate 5435-T
    4-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, -40 to 75°C operating temperature
    Out of stock Warranty: 60 months
    €1,324.00
    €1,628.52
    Login to check your price

Description

Introduction

The MGate 5135 /5435 gateways are 1- and 4-port industrial Ethernet gateways, respectively for Modbus RTU/ASCII/TCP and EtherNet/IP network communications. To integrate existing Modbus devices onto an EtherNet/IP network, use the MGate 5135/5435 gateway as a Modbus client to collect data and exchange data with the EtherNet/IP host. All models are protected by a rugged and compact metal housing, are DIN-rail mountable, and offer built-in serial isolation. The rugged design is suitable for industrial applications such as factory automation, power, oil and gas, water and wastewater, and other process automation industries.



Easy Configuration

The MGate 5135/5435 gateways are provided with a web console to make configuration easy without having to install an extra utility. In addition, HTTPS encryption of communication ensures higher network security. In most data-acquisition applications, configuration of devices with Modbus commands can be time-consuming and increase costs. The MGate 5135/5435 gateways provide offline configuration via a CSV file to help complete the Modbus settings quickly. The MGate gateways also provide software-configurable pull high/low and termination resistor settings for RS-485 2-wire to reduce efforts and the need to open the chassis.



Easy Troubleshooting

The MGate 5135/5435 gateways provide a variety of maintenance functions to reduce troubleshooting time and cost, including LED indicators, protocol diagnostics, traffic monitor, and tag view. These tools help you capture and check data to easily identify the root cause of issues, especially during the installation stage. The MGate gateways also come with status monitoring and fault protection functions. The status monitoring function notifies a PLC/DCS/SCADA system when a Modbus device gets disconnected or does not respond, in which case the process PLC/DCS gets the status of each end device and then issues alarms to notify operators. The fault protection function executes actions pre-defined by the user when a host gets disconnected to prevent the end devices from going offline for long periods of time..

Technical Specification

  • Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) 2 Auto MDI/MDI-X connection
Magnetic Isolation Protection 1.5 kV (built-in)
  • Ethernet Software Features
Industrial Protocols Modbus TCP Client, EtherNet/IP Adapter
Configuration Options Web Console (HTTPS), Device Search Utility (DSU)
Management ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, UDP
MIB RFC1213, RFC1317
Time Management NTP Client
  • Security Functions
Authentication Local database
Encryption HTTPS, AES-128, AES-256, SHA-256
Security Protocols SNMPv3 SNMPv2c Trap HTTPS (TLS 1.3)
  • Serial Interface
No. of Ports MGate 5135/5135-T: 1MGate 5435/5435-T: 4
Connector DB9 male
Serial Standards RS-232/422/485
Baudrate 300 bps to 921.6 kbps
Data Bits 7, 8
Parity None, Even, Odd, Space, Mark
Stop Bits 1, 2
Flow Control RTS Toggle (RS-232 only), RTS/CTS
RS-485 Data Direction Control ADDC (automatic data direction control)
Pull High/Low Resistor for RS-485 1 kilo-ohm, 150 kilo-ohms software configurable
Terminator for RS-485 120 ohms software configurable
Isolation 2 kV (built-in)
  • Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
  • Serial Software Features
Industrial Protocols Modbus RTU/ASCII Client
  • Modbus RTU/ASCII
Mode Client
Functions Supported 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Server Connections 31
Max. No. of Commands 128 per serial port
  • Modbus TCP
Mode Client
Functions Supported 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Server Connections 32
Max. No. of Commands 128
Total Output Data Size MGate 5135: 2048 bytes MGate 5135-T: 2048 bytes MGate 5435: 4000 bytes MGate 5435-T: 4000 bytes
Total Input Data Size MGate 5135: 2048 bytes MGate 5135-T: 2048 bytes MGate 5435: 4000 bytes MGate 5435-T: 4000 bytes
  • EtherNet/IP
Mode Adapter
CIP Objects Supported Identity, Message Router, Assembly, Connection Manager, TCP/IP interface, Ethernet link, Port
Max. No. of Scanner Connections MGate 5135/5135-T: 4 (read/write)MGate 5435/5435-T: 8 (read/write)
Input Data Size MGate 5135: 496 bytes/connection (total: 1984 bytes) bytes MGate 5135-T: 496 bytes/connection (total: 1984 bytes) bytes MGate 5435: 496 bytes/connection (total: 3968 bytes) bytes MGate 5435-T: 496 bytes/connection (total: 3968 bytes) bytes
Output Data Size MGate 5135: 496 bytes/connection (total: 1984 bytes) bytes MGate 5135-T: 496 bytes/connection (total: 1984 bytes) bytes MGate 5435: 496 bytes/connection (total: 3968 bytes) bytes MGate 5435-T: 496 bytes/connection (total: 3968 bytes) bytes
  • Memory
microSD Slot Up to 32 GB (SD 2.0 compatible)
  • Power Parameters
Input Voltage 12 to 48 VDC
Input Current 455 mA (max)
Power Connector Spring-type Euroblock terminal
  • Relays
Contact Current Rating Resistive load: 2 A @ 30 VDC
  • Physical Characteristics
Housing Metal
IP Rating IP30
Dimensions MGate 5135/5135-T: 25 x 90 x 130 mm (0.98 x 3.54 x 5.1 in)MGate 5435/5435-T: 42 x 90 x 130 mm (1.65 x 3.54 x 5.1 in)
Weight MGate 5135/5135-T: 294 g (0.65 lb)MGate 5435/5435-T: 403 g (0.89 lb
  • Environmental Limits
Operating Temperature Standard Models: -10 to 60°C (14 to 140°F)Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
Safety EN 61010-2-201, UL 61010-2-201
EMC EN 61000-6-2/-6-4
EMI FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF
Freefall IEC 60068-2-31
Shock IEC 60068-2-27
Vibration IEC 60068-2-6, IEC 60068-2-64
  • MTBF
Time MGate 5135/5135-T: 1,240,821 hrsMGate 5435/5435-T: 689,989 hrs hrs
Standards Telcordia SR332
  • Warranty
Warranty Period 5 years
Details See www.moxa.com/warranty
