MGate MB3180 / 3280 / 3480

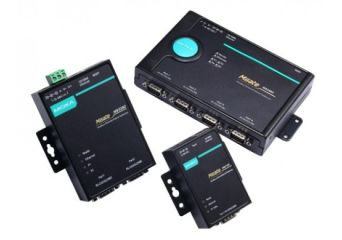

1, 2, and 4-port standard serial-to-Ethernet Modbus gateways

Manufacturer: MOXA
Manufacturer: MOXA
  •  Supports Auto Device Routing for easy configuration
  •  Supports route by TCP port or IP address for flexible deployment
  •  Converts between Modbus TCP and Modbus RTU/ASCII protocols
  •  1 Ethernet port and 1, 2, or 4 RS-232/422/485 ports
  •  16 simultaneous TCP masters with up to 32 simultaneous requests per master
  •  Easy hardware setup and configuration
Price from €239.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €500

See 3 models

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    MGate MB3180/EU
    1 Port RS-232/422/485 Modbus TCP to Serial Communication Gateway
    In stock
    Warranty: 60 months
    €239.00
    €293.97
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    MGate MB3280/EU
    2 Port RS-232/422/485 Modbus TCP to Serial Communication Gateway
    In stock
    Warranty: 60 months
    €450.00
    €553.50
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    MGate MB3480/EU
    4 Port RS-232/422/485 Modbus TCP to Serial Communication Gateway
    In stock
    Warranty: 60 months
    €686.00
    €843.78
    Login to check your price

Accessories

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    DIN Rail Mounting Kit 35mm, for DE-311/211, NPort 5200/5400, NPort W2250/2150
    In stock
    Warranty: 24 months
    €4.00
    €4.92
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    DB9 Female to Terminal Block
    In stock
    Warranty: 24 months
    €10.00
    €12.30
    Login to check your price

Useful products

Description

The MB3180, MB3280, and MB3480 are standard Modbus gateways that convert between Modbus TCP and Modbus RTU/ASCII protocols. Up to 16 simultaneous Modbus TCP masters are supported, with up to 31 RTU/ASCII slaves per serial port. For RTU/ASCII masters, up to 32 TCP slaves are supported.

Standard Modbus Network Integration

The three standard MGate™ models (MB3180, MB3280, and MB3480) are designed for easy integration of Modbus TCP and RTU/ASCII networks. With these models, Modbus serial slave devices can be seamlessly incorporated into an existing Modbus TCP network, and Modbus TCP slaves can be made accessible to serial masters. The MB3180, MB3280, and MB3480 offer features that make network integration easy, customizable, and compatible with almost any Modbus network.

High Density, Cost-Effective Gateways

The MGate™ MB3000 gateways can effectively connect a high density of Modbus nodes to the same network. The MB3280 can manage up to 62 serial slave nodes, and the MB3480 can manage up to 124 serial slave nodes. Each RS-232/422/485 serial port can be configured individually for Modbus RTU or Modbus ASCII operation and for different baudrates, allowing both types of networks to be integrated with Modbus TCP through one Modbus gateway.

Auto-Device Routing for Easy Configuration (Patent Pending)

Moxa’s Auto-Device Routing function helps eliminate many of the problems and inconveniences encountered by engineers who need to configure large numbers of Modbus devices. A single mouse click is all that’s required to set up a slave ID routing table and configure Modbus gateways to automatically detect Modbus requests from a supervisory control and data acquisition (SCADA) system. By removing the need to manually create the slave ID routing table, the Auto-Device Routing function saves engineers significant time and cost.

Technical Specification

  • Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) 1 (Auto MDI/MDI-X connection)
Magnetic Isolation Protection 1.5 kV (built-in)
  • Ethernet Software Features
Industrial Protocols Modbus TCP Client (Master), Modbus TCP Server (Slave)
Configuration Options Web Console (HTTP), Device Search Utility (DSU), MGate Manager, Telnet Console
Management ARP, DHCP Client, DNS, HTTP, HTTPS (MGate MB3180 Excluded), SMTP (MGate MB3180 Excluded), SNMP Trap (MGate MB3180 Excluded), SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, NTP Client (MGate MB3180 Excluded)
MIB RFC1213, RFC1317
Time Management NTP Client (MGate MB3180 Excluded)
  • Serial Interface
No. of Ports MGate MB3180: 1
MGate MB3280: 2
MGate MB3480: 4
Connector DB9 male
Serial Standards RS-232/422/485 (software selectable)
Baudrate 50 bps to 921.6 kbps
Data Bits 7, 8
Parity None, Even, Odd, Space, Mark
Stop Bits 1, 2
Flow Control DTR/DSR, RTS Toggle (RS-232 only), RTS/CTS
RS-485 Data Direction Control ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485 MGate MB3180: None
MGate MB3280/MB3480: 120 ohms
  • Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
  • Serial Software Features
Industrial Protocols Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave
  • Modbus (Transparent)
Max. No. of Client Connections 16
Max. No. of Server Connections 32
  • Power Parameters
Input Voltage 12 to 48 VDC
Input Current MGate MB3180: 200 mA @ 12 VDC
MGate MB3280: 250 mA @ 12 VDC
MGate MB3480: 385 mA @ 12 VDC
Power Connector MGate MB3180: Power jack
MGate MB3280/MB3480: Power jack and terminal block
  • Physical Characteristics
Housing Metal
IP Rating IP30
Dimensions (with ears) MGate MB3180: 22 x 75 x 80 mm (0.87 x 2.95 x 3.15 in)
MGate MB3280: 22 x 100 x 111 mm (0.87 x 3.94 x 4.37 in)
MGate MB3480: 35.5 x 102.7 x 181.3 mm (1.40 x 4.04 x 7.14 in)
Dimensions (without ears) MGate MB3180: 22 x 52 x 80 mm (0.87 x 2.05 x 3.15 in)
MGate MB3280: 22 x 77 x 111 mm (0.87 x 3.03 x 4.37 in)
MGate MB3480: 35.5 x 102.7 x 157.2 mm (1.40 x 4.04 x 6.19 in)
Weight MGate MB3180: 340 g (0.75 lb)
MGate MB3280: 360 g (0.79 lb)
MGate MB3480: 740 g (1.63 lb)
  • Environmental Limits
Operating Temperature 0 to 60°C (32 to 140°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
Safety EN 60950-1, UL 60950-1
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV (MB3180/MB3280)
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 2 kV (MB3480)
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs
  • MTBF
Time MGate MB3180: 908,440 hrs
MGate MB3280: 749,455 hrs
MGate MB3480: 1,242,173 hrs
Standards Telcordia SR332
