MGate MB3660-8-2AC 8 ports Modbus gateway, dual AC power input | In stock | Warranty: | €1,482.00 €1,822.86 | Login to check your price |
Model | Availability | Warranty | Wishlist | Your Price | Your Price | Items Quantity Add |
---|---|---|---|---|---|---|
MGate MB3660-8-2DC 8 ports Modbus gateway, dual DC power input | Out of stock | Warranty: | €1,570.00 €1,931.10 | Login to check your price |
Model | Availability | Warranty | Wishlist | Your Price | Your Price | Items Quantity Add |
---|---|---|---|---|---|---|
MGate MB3660-8-J-2AC Modbus gateway with dual LANs, dual AC power inputs, 8 RS-232/422/485 ports, RJ45 serial interface, 0 to 60°C operating temperature | Out of stock | Warranty: | €1,570.00 €1,931.10 | Login to check your price |
Model | Availability | Warranty | Wishlist | Your Price | Your Price | Items Quantity Add |
---|---|---|---|---|---|---|
MGate MB3660I-8-2AC 8 ports Modbus gateway, dual AC power input, 2kV isolation | Out of stock | Warranty: | €1,806.00 €2,221.38 | Login to check your price |
Model | Availability | Warranty | Wishlist | Your Price | Your Price | Items Quantity Add |
---|---|---|---|---|---|---|
MGate MB3660-16-2AC 16 ports Modbus gateway, dual AC power input | Out of stock | Warranty: | €1,860.00 €2,287.80 | Login to check your price |
Model | Availability | Warranty | Wishlist | Your Price | Your Price | Items Quantity Add |
---|---|---|---|---|---|---|
MGate MB3660-16-2DC 16 ports Modbus gateway, dual DC power input | In stock | Warranty: | €1,953.00 €2,402.19 | Login to check your price |
Model | Availability | Warranty | Wishlist | Your Price | Your Price | Items Quantity Add |
---|---|---|---|---|---|---|
MGate MB3660-16-J-2AC Modbus gateway with dual LANs, dual AC power inputs, 16 RS-232/422/485 ports, RJ45 serial interface, 0 to 60°C operating temperature | Out of stock | Warranty: | €1,986.00 €2,442.78 | Login to check your price |
Model | Availability | Warranty | Wishlist | Your Price | Your Price | Items Quantity Add |
---|---|---|---|---|---|---|
MGate MB3660I-16-2AC Modbus gateway with dual LANs, dual AC power inputs, 16 RS-232/422/485 ports, 0 to 60°C operating temperature, 2kV isolation | In stock | Warranty: | €2,692.00 €3,311.16 | Login to check your price |
Model | Availability | Warranty | Wishlist | Your Price | Your Price | Items Quantity Add |
---|---|---|---|---|---|---|
DB9 Female to Terminal Block | In delivery | Warranty: | €10.00 €12.30 | Login to check your price |

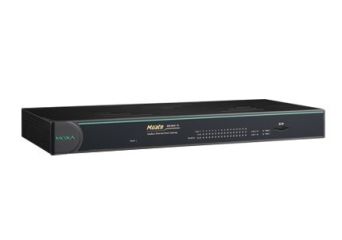

The MGate MB3660 (MB3660-8 and MB3660-16) gateways are redundant Modbus gateways that convert between the Modbus TCP and Modbus RTU/ASCII protocols. They can be accessed by up to 256 TCP master/client devices, or connect to 128 TCP slave/server devices. The MGate MB3660 isolation model provides 2 kV isolation protection suitable for power substation applications. The MGate MB3660 gateways are designed to easily integrate Modbus TCP and RTU/ASCII networks. The MGate MB3660 gateways offer features that make network integration easy, customizable, and compatible with almost any Modbus network.
For large-scale Modbus deployments, MGate MB3660 gateways can effectively connect a large number of Modbus nodes to the same network. The MB3660 Series can physically manage up to 248 serial slave nodes for 8-port models or 496 serial slave nodes for 16-port models (the Modbus standard only defines Modbus IDs from 1 to 247). Each RS-232/422/485 serial port can be configured individually for Modbus RTU or Modbus ASCII operation and for different baudrates, allowing both types of networks to be integrated with Modbus TCP through one Modbus gateway.
The MGate MB3660 gateways support two communication modes: transparent mode and agent mode. For transparent mode, the gateway converts Modbus commands from Modbus TCP to Modbus RTU/ASCII, and vice versa, or from serial (master) to serial (slave). However, since only one Modbus protocol request-response action can be executed at any given time, each Modbus device has to wait its turn, resulting in poorer performance.
In order to provide better performance, the MGate MB3660 gateways are designed with an innovative Command Learning function, which can be activated with a single mouse click. Once activated, the gateway will learn and remember the Modbus commands it receives, and once a command has been learned, the gateway will act as though it were in agent mode, and actively send Modbus requests to the relevant Modbus devices. Since the data is saved in a different memory space that can be accessed by the SCADA system, the SCADA system can retrieve Modbus response data directly from the gateway’s memory, instead of waiting for the data to pass through the Modbus devices, dramatically increasing communication performance.
Moxa’s Auto-Device Routing function helps eliminate many of the problems and inconveniences encountered by engineers who need to configure large numbers of Modbus devices. A single mouse click is all that’s required to set up a slave ID routing table and configure Modbus gateways to automatically detect Modbus requests from a supervisory control and data acquisition (SCADA) system. By removing the need to manually create the slave ID routing table, the Auto-Device Routing function saves engineers significant time and reduces cost.
For a complicated Modbus system, redundancy is extremely important. The MGate MB3660 Modbus gateways support redundancy for both the power input and Ethernet connection. The MGate MB3660 gateways come with dual AC or DC power inputs built in for power redundancy, and have dual Ethernet ports (with different IPs) for network redundancy. To accommodate different types of applications, the dual Ethernet ports can be configured in one of two ways:
10/100BaseT(X) Ports (RJ45 connector) | 2 IP addresses Auto MDI/MDI-X connection |
Industrial Protocols | Modbus TCP Client (Master), Modbus TCP Server (Slave) |
Configuration Options | Web Console (HTTP/HTTPS), Device Search Utility (DSU), Telnet Console |
Management | ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, NTP Client, RADIUS |
MIB | RFC1213, RFC1317 |
Time Management | NTP Client |
Console Port | RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) |
No. of Ports | MGate MB3660-8 Series: 8 MGate MB3660-16 Series: 16 |
Serial Standards | RS-232/422/485 (software selectable) |
Connector | MGate MB3660-8/16: DB9 male MGate MB3660-8/16-J: RJ45 |
Baudrate | 50 bps to 921.6 kbps |
Data Bits | 7, 8 |
Parity | None, Even, Odd, Space, Mark |
Stop Bits | 1, 2 |
Flow Control | RTS/CTS, DTR/DSR, RTS Toggle (RS-232 only) |
RS-485 Data Direction Control | ADDC® (automatic data direction control) |
Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms |
Terminator for RS-485 | 120 ohms |
Isolation | 2 kV (I models) |
RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
RS-485-2w | Data+, Data-, GND |
RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
Industrial Protocols | Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave |
Configuration Options | Serial Console |
Mode | Master, Slave |
Functions Supported | 1, 2, 3, 4, 5, 6, 15, 16, 23 |
Max. No. of Commands | 256 per serial port |
Memory Size | 65535 bytes |
Mode | Client (Master), Server (Slave) |
Max. No. of Client Connections | 256 |
Max. No. of Server Connections | 128 |
Functions Supported | 1, 2, 3, 4, 5, 6, 15, 16, 23 |
Max. No. of Commands | 256 |
Memory Size | 65535 bytes |
Max. No. of Client Connections | 256 |
Max. No. of Server Connections | 128 |
Input Voltage | All models: Redundant dual inputs AC models: 100 to 240 VAC (47 to 63 Hz) DC models: 20 to 60 VDC (1.5 kV isolation) |
No. of Power Inputs | 2 |
Power Connector | Terminal block (for DC models) |
Power Consumption | MGate MB3660-8-2AC: 144 mA @ 110 VAC MGate MB3660-8-J-2AC: 111 mA @ 110 VAC MGate MB3660-16-2AC: 178 mA @ 110 VAC MGate MB3660-16-J-2AC: 133 mA @ 110 VAC MGate MB3660I-8-2AC: 310 mA @ 110 VAC MGate MB3660I-16-2AC: 310 mA @ 110 VAC MGate MB3660-8-2DC: 312 mA @ 24 VDC MGate MB3660-16-2DC: 390 mA @ 24 VDC |
Contact Current Rating | Resistive load: 2 A @ 30 VDC |
Housing | Metal |
IP Rating | IP30 |
Dimensions (with ears) | 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in) |
Dimensions (without ears) | 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in) |
Weight | MGate MB3660-8-2AC: 2731 g (6.02 lb) MGate MB3660-8-2DC: 2684 g (5.92 lb) MGate MB3660-8-J-2AC: 2600 g (5.73 lb) MGate MB3660-16-2AC: 2830 g (6.24 lb) MGate MB3660-16-2DC: 2780 g (6.13 lb) MGate MB3660-16-J-2AC: 2670 g (5.89 lb) MGate MB3660I-8-2AC: 2753 g (6.07 lb) MGate MB3660I-16-2AC: 2820 g (6.22 lb) |
Operating Temperature | 0 to 60°C (32 to 140°F) |
Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
Safety | EN 60950-1, UL 60950-1 |
EMC | EN 55032/24 |
EMI | CISPR 32, FCC Part 15B Class A |
EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
Freefall | IEC 60068-2-31 |
Shock | IEC 60068-2-27 |
Vibration | IEC 60068-2-6, IEC 60068-2-64 |
Time | MGate MB3660-8-2AC: 716,647 hrs MGate MB3660-8-2DC: 706,783 hrs MGate MB3660-8-J-2AC: 616,505 hrs MGate MB3660-16-2AC: 487,416 hrs MGate MB3660-16-2DC: 482,835 hrs MGate MB3660-16-J-2AC: 437,337 hrs MGate MB3660I-8-2AC: 429,807 hrs MGate MB3660I-16-2AC: 256,208 hrs |
Standards | Telcordia SR332 |
