Modules IM-G7000A
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIM-G7000A-4GTXGigabit Ethernet interface module with 4 10/100/1000BaseT(X) ports, RJ45 connectors, -10 to 60°C operating temperatureOut of stock Warranty: €882.00€1,084.86Login to check your price IM-G7000A-4GTXGigabit Ethernet interface module with 4 10/100/1000BaseT(X) ports, RJ45 connectors, -10 to 60°C operating temperatureAvailability: Out of stockNet price:€882.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIM-G7000A-4PoEGigabit PoE+ Ethernet interface module with 4 10/100/1000BaseT(X) PoE+ ports, RJ45 connectors, 0 to 60°C operating temperatureOut of stock Warranty: €1,374.00€1,690.02Login to check your price IM-G7000A-4PoEGigabit PoE+ Ethernet interface module with 4 10/100/1000BaseT(X) PoE+ ports, RJ45 connectors, 0 to 60°C operating temperatureAvailability: Out of stockNet price:€1,374.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIM-G7000A-4GSFPGigabit Ethernet interface module with 4 100/1000BaseSFP slots, -10 to 60°C operating temperatureOut of stock Warranty: €882.00€1,084.86Login to check your price IM-G7000A-4GSFPGigabit Ethernet interface module with 4 100/1000BaseSFP slots, -10 to 60°C operating temperatureAvailability: Out of stockNet price:€882.00
Description

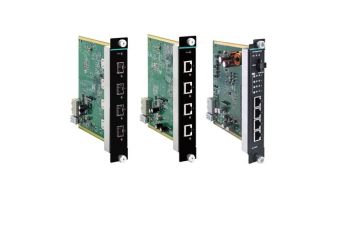

The IM-G7000A Module Series includes 4G-port Ethernet interface modules designed for ICS-G7748A, ICS-G7750A, ICS-G7752A, ICS-G7848A, ICS-G7850A, and ICS-G7852A modular managed switches. In particular, the IM-G7000A-4PoEA module is a PoE-enabled interface module that centralizes the power supply and provides up to 36 watts of power per port, reducing the effort required to provide power to connected devices.
Technical Specification
- Ethernet Interface
| 10/100/1000BaseT(X) Ports (RJ45 connector) | IM-G7000A-4GTX: 4 IM-G7000A-4GTX: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| 100/1000BaseSFP Ports | IM-G7000A-4GSFP: 4 |
| PoE Ports (10/100/1000BaseT(X), RJ45 connector) | IM-G7000A-4PoE: 4, Compliant with IEEE 802.3af/at high power mode up to 36 W IM-G7000A-4PoE: Auto negotiation speed |
- LED Interface
| LED Indicators | State, Hot-swap, 10/100/1000 for TP port, 100/1000 for fiber port, PoE and EPS for PoE module |
- Power Parameters
| Power Consumption | IM-G7000A-4GSFP: 1.32 W (max.) IM-G7000A-4GTX: 3.47 W (max.) IM-G7000A-4PoE: 5.14 W (max.) |
- Physical Characteristics
| Dimensions | 28.8 x 174.7 x 166.8 mm (1.13 x 6.88 x 6.57 in) |
| Weight | 220 g (0.49 lb) |
- MTBF
| Time | IM-G7000A-4GTX: 1,569,520 hrs IM-G7000A-4GSFP: 1,544,084 hrs IM-G7000A-4PoE: 394,348 hrs |
| Standards | Telcordia (Bellcore), GB |
