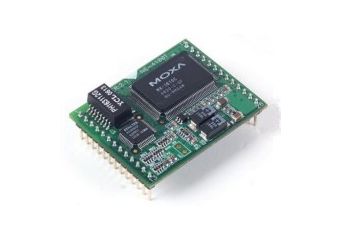

NE-4100T

10/100 Mbps embedded serial device servers, TTL

Manufacturer: MOXA

10/100 Mbps Ethernet interface
Supports baudrates up to 230.4 kbps
Choice of operation modes: Real COM, TCP Server, TCP Client, and UDP
Supports DHCP, BootP, Static IP, and ARP
SNMP and email alerts for event trapping and notifications
Half the size of a credit card—only 57 × 40 mm
Low power consumption at 1.5 W, with single +5 V input

Price from €60.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 3 models

Promocja cenowa na model HDR-15-5

Models
Description
Technical Specification
Download
Recommended Products

NE-4100T

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
NE-4100T Serial TTL 10/100M Ethernet Network Enabler for serial(TTL) device, DIL package	Out of stock	Warranty:		€60.00 €73.80 Login to check your price	Login to check your price	pcs.

NE-4100T Serial TTL

10/100M Ethernet Network Enabler for serial(TTL) device, DIL package

Availability: Out of stock

Net price:

€60.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
NE-4100T-T 10/100M Ethernet Network Enabler for serial(TTL) device, DIL package	In stock	Warranty:		€79.00 €97.17 Login to check your price	Login to check your price	pcs.

NE-4100T-T

10/100M Ethernet Network Enabler for serial(TTL) device, DIL package

Availability:

In stock

Net price:

€79.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
NE-4100-ST (w/o module) Developing Kit for NE-4100 Series, NE-4100T (without NE Module)	Out of stock	Warranty:		€103.00 €126.69 Login to check your price	Login to check your price	pcs.

NE-4100-ST (w/o module)

Developing Kit for NE-4100 Series, NE-4100T (without NE Module)

Availability: Out of stock

Net price:

€103.00

Description

Moxa’s NE-4100 embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices. Moxa’s embedded device servers can be used to convert any device with a standard serial interface to an Ethernet-enabled device in no time. The NE-4100 embedded device servers support 10/100 Mbps Ethernet, and provide ready-to-use operation modes, including TCP Server, TCP Client, and UDP. In addition, a Real COM driver is included for backward compatibility with legacy software.

SNMP and Email Alerts for Event Trap and Notification

NE-4100 embedded device servers can be configured to send an SNMP trap or email under the following conditions:

Cold/warm start
Password authentication failure
Change in DSR/DCD line signal
Change in IP address
Change in password

Technical Specification

PLATFORM

CPU	16-bit MCU

MEMORY

Flash	2 MB
SDRAM	1 MB

INPUT/OUTPUT INTERFACE

Configurable DIO Channels (by software)

ETHERNET INTERFACE

10/100BaseT(X) Ports, Auto MDI/MDI-X	26-pin dual-in-line
Magnetic Isolation Protection	1.5 kV (built-in)
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control

ETHERNET SOFTWARE FEATURES

Configuration Options	Web Console (HTTP), Windows Utility, Telnet Console, Serial Console
Management	ARP, Device Search Utility (DSU), DHCP Client, HTTP, IPv4, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP, Web Console, ICMP
Windows Real COM Drivers	Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers	Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers	SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android API	Android 3.1.x and later

SERIAL INTERFACE

No. of Ports	2 (1 for serial interface, 1 for TTL console port
Serial Standards	TTL
Operation Modes	Real COM mode, TCP Client mode, TCP Server mode, UDP mode
Baudrate	110 bps to 230.4 kbps
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	None, RTS/CTS, DTR/DSR, XON/XOFF

POWER PARAMETERS

Power Consumption	290 mA @ 5 VDC
Input Voltage	5 VDC

PHYSICAL CHARACTERISTICS

Dimensions	45 x 36 mm (1.77 x 1.42 in)
Weight	20 g (0.04 lb)
Form Factor Type	Drop-in modules

ENVIRONMENTAL LIMITS

Operating Temperature	Standard Models: 0 to 55˚C (32 to 131˚F) Wide Temp. Models: -40 to 75˚C (-40 to 167˚F)
Weight	-40 to 60°C (-40 to 140°F)
Form Factor Type	5 to 95% (non-condensing)

STANDARD AND CERTIFICATIONS

EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class B
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
Environmental Testing	IEC 60068-2-1 IEC 60068-2-3 IEC 60068-2-14
