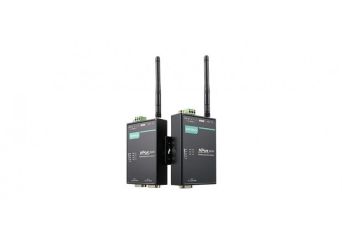

NPort W2150A/W2250A
1 and 2-port serial-to-WiFi (802.11a/b/g/n) device servers with wireless client
Manufacturer: MOXA
Manufacturer: MOXA
- Links serial and Ethernet devices to an IEEE 802.11a/b/g/n network
- Web-based configuration using built-in Ethernet or WLAN
- Enhanced surge protection for serial, LAN, and power
- Remote configuration with HTTPS, SSH
- Secure data access with WEP, WPA, WPA2
- Fast roaming for quick automatic switching between access points
- Offline port buffering and serial data log
- Dual power inputs (1 screw-type power jack, 1 terminal block)
Price from €342.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
NPort W2150A/W2250A
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort W2150A/EU1 Port Wireless Device Server, 3-in-1, 802.11 a/b/g/n WLAN, 12-48 VDC, 0 to 55?, w/adapterIn stockWarranty: €342.00€420.66Login to check your price NPort W2150A/EU1 Port Wireless Device Server, 3-in-1, 802.11 a/b/g/n WLAN, 12-48 VDC, 0 to 55?, w/adapterAvailability:In stockNet price:€342.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort W2150A-T1 Port Wireless Device Server, 3-in-1, 802.11 a/b/g/n WLAN, 12-48 VDC, -40 to 75?Out of stock Warranty: €527.00€648.21Login to check your price NPort W2150A-T1 Port Wireless Device Server, 3-in-1, 802.11 a/b/g/n WLAN, 12-48 VDC, -40 to 75?Availability: Out of stockNet price:€527.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort W2250A/EU2 Port Wireless Device Server, 3-in-1, 802.11 a/b/g/n WLAN, 12-48 VDC, 0 to 55?, w/adapterIn stockWarranty: €418.00€514.14Login to check your price NPort W2250A/EU2 Port Wireless Device Server, 3-in-1, 802.11 a/b/g/n WLAN, 12-48 VDC, 0 to 55?, w/adapterAvailability:In stockNet price:€418.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort W2150A-W4-EU1 Port Wireless Device Server, 3-in-1, 802.11 a/b/g/n WLAN, 12-48 VDC, 0 to 55?, w/adapterIn delivery Warranty: €342.00€420.66Login to check your price NPort W2150A-W4-EU1 Port Wireless Device Server, 3-in-1, 802.11 a/b/g/n WLAN, 12-48 VDC, 0 to 55?, w/adapterAvailability: In deliveryNet price:€342.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort W2150A-W4-T-EU1-port RS-232/422/485 wireless device server with 802.11a/b/g/n WLAN EU band, 12 to 48 VDC, -40 to 75°C operating temperatureOut of stock Warranty: €527.00€648.21Login to check your price NPort W2150A-W4-T-EU1-port RS-232/422/485 wireless device server with 802.11a/b/g/n WLAN EU band, 12 to 48 VDC, -40 to 75°C operating temperatureAvailability: Out of stockNet price:€527.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort W2250A-W4-EU2-port RS-232/422/485 wireless device server with 802.11a/b/g/n WLAN EU band, EU plug, 12 to 48 VDC, 0 to 55°C operating temperatureOut of stock Warranty: €418.00€514.14Login to check your price NPort W2250A-W4-EU2-port RS-232/422/485 wireless device server with 802.11a/b/g/n WLAN EU band, EU plug, 12 to 48 VDC, 0 to 55°C operating temperatureAvailability: Out of stockNet price:€418.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort W2250A-W4-T-EU2-port RS-232/422/485 wireless device server with 802.11a/b/g/n WLAN EU band, 12 to 48 VDC, -40 to 75°C operating temperatureOut of stock Warranty: €584.00€718.32Login to check your price NPort W2250A-W4-T-EU2-port RS-232/422/485 wireless device server with 802.11a/b/g/n WLAN EU band, 12 to 48 VDC, -40 to 75°C operating temperatureAvailability: Out of stockNet price:€584.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add2.4/5GHz, Dual-band omni-directional antenna, 6/9 dBi, N-type (female)Out of stock Warranty: €144.00€177.12Login to check your price 2.4/5GHz, Dual-band omni-directional antenna, 6/9 dBi, N-type (female)Availability: Out of stockNet price:€144.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add2.4/5GHz, Dual-band omni-directional antenna, 5/2 dBi, N-type(male)In delivery Warranty: €21.00€25.83Login to check your price 2.4/5GHz, Dual-band omni-directional antenna, 5/2 dBi, N-type(male)Availability: In deliveryNet price:€21.00
Description
The NPort® W2150A and W2250A are the ideal choice for connecting your serial and Ethernet devices, such as PLCs, meters, and sensors, to a wireless LAN. Your communications software will be able to access the serial devices from anywhere over a wireless LAN. Moreover, the wireless device servers require fewer cables and are ideal for applications that involve difficult wiring situations. In Infrastructure Mode or Ad-Hoc Mode, the NPort® W2150A and NPort® W2250A can connect to Wi-Fi networks at offices and factories to allow users to move, or roam, between several APs (access points), and offer an excellent solution for devices that are frequently moved from place to place.
In January 2023, a new hardware version was introduced - NPort W2150A-W4(-T) and NPort W2250A-W4(-T). A list of changes:
Technical Specification
- Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) | 1 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) |
- Ethernet Software Features
| Configuration Options | Web Console (HTTP/HTTPS), Windows Utility |
| Management | DHCP Option 82, HTTP, IPv4, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, Web Console |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Android API | Android 3.1.x and later |
| MIB | Device Settings MIB, RFC1213, RFC1317 |
| Security | HTTPS/SSL, User Authentication Management: local database, RADIUS, Secure Protocols: HTTPS (TLSv1.2), SSH, SNMPv3, Cryptography: HMAC, SHA-1, SHA-256, SHA-384, RSA-1024, AES-128, AES-256 |
| Time Management | NTP Client, SNTP Client |
- WLAN Interface
| WLAN Standards | 802.11a/b/g/n |
| Receiver Sensitivity for 802.11a (measured at 5.680 GHz) | Typ. -91 @ 6 Mbps Typ. -74 @ 54 Mbps |
| Receiver Sensitivity for 802.11b (measured at 2.437 GHz) | Typ. -92 dBm @ 1 Mbps Typ. -84 dBm @ 11 Mbps |
| Receiver Sensitivity for 802.11g (measured at 2.437 GHz) | Typ. -91 dBm @ 6 Mbps Typ. -73 dBm @ 54 Mbps |
| Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz) | Typ. -89 dBm @ 6.5 Mbps (20 MHz) Typ. -71 dBm @ 72.2 Mbps (20 MHz) |
| Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz) | Typ. -89 dBm @ 6.5 Mbps (20 MHz) Typ. -71 dBm @ 72.2 Mbps (20 MHz) Typ. -85 dBm @ 13.5 Mbps (40 MHz) Typ. -67 dBm @ 150 Mbps (40 MHz) |
| Modulation Type | DSSS OFDM |
| Transmission Distance | Up to 100 meters (in open areas) |
| Transmission Rate | 802.11a/g: 54 Mbps 802.11b: 11 Mbps 802.11n: 6.5 to 150 Mbps |
| Transmitter Power for 802.11b | 16±1.5 dBm @ 1 Mbps 16±1.5 dBm @ 11 Mbps |
| Transmitter Power for 802.11g | 16±1.5 dBm @ 6 Mbps 14±1.5 dBm @ 54 Mbps |
| Transmitter Power for 802.11a | 16±1.5 dBm @ 6 Mbps 14±1.5 dBm @ 54 Mbps |
| Transmitter Power for 802.11n (2.4 GHz) | 16 dBm @ 1.5 Mbps (6.5 MHz) 12 dBm @ 1.5 Mbps (72.2 MHz) |
| Transmitter Power for 802.11n (5 GHz) | 15 dBm @ 1.5 Mbps (6.5 MHz) 12 dBm @ 1.5 Mbps (150 MHz) |
| Frequency Band for CN (20 MHz operating channels) | 2.412 to 2.472 GHz (13 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) * 5.745 to 5.825 GHz (5 channels) |
| Frequency Band for EU (20 MHz operating channels) | 2.412 to 2.472 GHz (13 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) * 5.500 to 5.700 GHz (11 channels) * |
| Frequency Band for JP (20 MHz operating channels) | 2.412 to 2.484 GHz (14 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) * 5.500 to 5.700 GHz (11 channels) * |
| Frequency Band for US (20 MHz operating channels) | 2.412 to 2.462 GHz (11 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) * 5.500 to 5.700 GHz (11 channels) * 5.745 to 5.825 GHz (5 channels) |
| Wireless Security | WEP encryption (64-bit and 128-bit) WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES) WPA/WPA2-Personal |
| WLAN Modes | Ad-hoc Mode, Infrastructure mode |
| * DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service. |
- Serial Interface
| Connector | DB9 male |
| No. of Ports | NPort W2150A/W2150A-T: 1 NPort W2250A/W2250A-T: 2 |
| Serial Standards | RS-232, RS-422, RS-485 |
| Operation Modes | Real COM mode, TCP Server mode, TCP Client mode, UDP mode, RFC2217 mode, Pair Connection mode, Ethernet Modem mode, Disabled |
| Baudrate | 50 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, XON/XOFF |
| RS-485 Data Direction Control | ADDCŽ (automatic data direction control) |
| Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms |
| Terminator for RS-485 | 120 ohms |
| Surge | 1 kV |
- Physical Characteristics
| Housing | Metal |
| Installation | Desktop, DIN-rail mounting (with optional kit), Wall mounting |
| Dimensions (with ears, without antenna) | 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in) |
| Dimensions (without ears or antenna) | 100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in) |
| Weight | NPort W2150A/W2150A-T: 547 g (1.21 lb) NPort W2250A/W2250A-T: 557 g (1.23 lb) |
| Antenna Length | 109.79 mm (4.32 in) |
- Environmental Limits
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Power Parameters
| Input Current | NPort W2150A/W2150A-T: 179 mA @ 12 VDC NPort W2250A/W2250A-T: 200 mA @ 12 VDC |
| Input Voltage | 12 to 48 VDC |
- Standards and Certifications
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 |
| Radio Frequency | CE (ETSI EN 301 893, ETSI EN 300 328, ETSI EN 301 489-17, ETSI EN 301 489-1), ARIB RCR STD-33, ARIB STD-66 |
- Reliability
| Alert Tools | RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT |
- MTBF
| Time | NPort W2150A/W2150A-T: 383,187 hrs NPort W2250A/W2250A-T: 363,327 hrs |
| Standards | Telcordia (Bellcore) Standard TR/SR |
