Manufacturer: MOXA
- IEC 61850-3 and IEEE 1613 compliant
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
- Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
- Isolated universal 24 VDC or 48 VDC redundant power inputs
- Wide 110/220 VDC/VAC power supply range
- Modbus TCP, LLDP, SNMP Inform, QoS, IGMP snooping, VLAN, IEEE 802.1X, HTTPS, SNMPv3, and SSH supported
- -40 to 85°C operating temperature range
Price from €1,290.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
Filter: ()
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPT-508-SS-SC-24IEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, 1 power supply (24 VDC), -40~85?COut of stock Warranty: €1,579.00€1,942.17Login to check your price PT-508-SS-SC-24IEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, 1 power supply (24 VDC), -40~85?CAvailability: Out of stockNet price:€1,579.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPT-508-SS-SC-48IEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, 1 power supply (48 VDC), -40~85?COut of stock Warranty: €1,579.00€1,942.17Login to check your price PT-508-SS-SC-48IEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, 1 power supply (48 VDC), -40~85?CAvailability: Out of stockNet price:€1,579.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPT-508-SS-SC-HVIEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, 1 power supply (88-300VDC or 85-264VAC), -40~85?COut of stock Warranty: €1,546.00€1,901.58Login to check your price PT-508-SS-SC-HVIEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, 1 power supply (88-300VDC or 85-264VAC), -40~85?CAvailability: Out of stockNet price:€1,546.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPT-508-SS-LC-24IEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with LC connectors, 1 power supply (24 VDC), -40~85?COut of stock Warranty: €1,412.00€1,736.76Login to check your price PT-508-SS-LC-24IEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with LC connectors, 1 power supply (24 VDC), -40~85?CAvailability: Out of stockNet price:€1,412.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPT-508-SS-LC-48IEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with LC connectors, 1 power supply (48 VDC), -40~85?COut of stock Warranty: €1,412.00€1,736.76Login to check your price PT-508-SS-LC-48IEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with LC connectors, 1 power supply (48 VDC), -40~85?CAvailability: Out of stockNet price:€1,412.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPT-508-SS-LC-HVIEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with LC connectors, 1 power supply (88-300VDC or 85-264VAC), -40~85?COut of stock Warranty: €1,380.00€1,697.40Login to check your price PT-508-SS-LC-HVIEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with LC connectors, 1 power supply (88-300VDC or 85-264VAC), -40~85?CAvailability: Out of stockNet price:€1,380.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPT-508-MM-SC-24IEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, 1 power supply (24 VDC), -40~85?COut of stock Warranty: €1,323.00€1,627.29Login to check your price PT-508-MM-SC-24IEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, 1 power supply (24 VDC), -40~85?CAvailability: Out of stockNet price:€1,323.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPT-508-MM-SC-48IEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, 1 power supply (48 VDC), -40~85?COut of stock Warranty: €1,323.00€1,627.29Login to check your price PT-508-MM-SC-48IEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, 1 power supply (48 VDC), -40~85?CAvailability: Out of stockNet price:€1,323.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPT-508-MM-SC-HVIEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, 1 power supply (88-300VDC or 85-264VAC), -40~85?COut of stock Warranty: €1,290.00€1,586.70Login to check your price PT-508-MM-SC-HVIEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, 1 power supply (88-300VDC or 85-264VAC), -40~85?CAvailability: Out of stockNet price:€1,290.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPT-508-MM-ST-24IEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, 1 power supply (24 VDC), -40~85?COut of stock Warranty: €1,323.00€1,627.29Login to check your price PT-508-MM-ST-24IEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, 1 power supply (24 VDC), -40~85?CAvailability: Out of stockNet price:€1,323.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPT-508-MM-ST-48IEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, 1 power supply (48 VDC), -40~85?COut of stock Warranty: €1,323.00€1,627.29Login to check your price PT-508-MM-ST-48IEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, 1 power supply (48 VDC), -40~85?CAvailability: Out of stockNet price:€1,323.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPT-508-MM-ST-HVIEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, 1 power supply (88-300VDC or 85-264VAC), -40~85?COut of stock Warranty: €1,290.00€1,586.70Login to check your price PT-508-MM-ST-HVIEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, 1 power supply (88-300VDC or 85-264VAC), -40~85?CAvailability: Out of stockNet price:€1,290.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPT-508-MM-LC-24IEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with LC connectors, 1 power supply (24 VDC), -40~85?COut of stock Warranty: €1,323.00€1,627.29Login to check your price PT-508-MM-LC-24IEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with LC connectors, 1 power supply (24 VDC), -40~85?CAvailability: Out of stockNet price:€1,323.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPT-508-MM-LC-48IEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with LC connectors, 1 power supply (48 VDC), -40~85?COut of stock Warranty: €1,323.00€1,627.29Login to check your price PT-508-MM-LC-48IEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with LC connectors, 1 power supply (48 VDC), -40~85?CAvailability: Out of stockNet price:€1,323.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPT-508-MM-LC-HVIEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with LC connectors, 1 power supply (88-300VDC or 85-264VAC), -40~85?CIn stockWarranty: €1,290.00€1,586.70Login to check your price PT-508-MM-LC-HVIEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with LC connectors, 1 power supply (88-300VDC or 85-264VAC), -40~85?CAvailability:In stockNet price:€1,290.00
Description

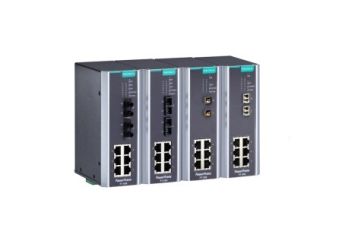

The PowerTrans PT-508 Series is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-508’s optical fiber Fast Ethernet backbone, redundant ring, redundant power inputs (24 VDC or 48 VDC), and isolated power inputs (24 VDC, 48 VDC, or 110/220 VDC/VAC) increase the reliability of your communications and save on cabling/wiring costs. In addition, the DIN-rail and wall-mounting design of the PT-508 switches simplify network planning, and allows greater flexibility by letting you install up to 8 Fast Ethernet ports for power distribution applications.
Additional Features and Benefits
- Command line interface (CLI) for quickly configuring major managed functions
- VLAN Unaware: Supports priority-tagged frames to be received by specific IEDs
- EtherNet/IP and Modbus TCP industrial Ethernet protocols supported
- Configurable by web browser, Telnet/Serial console, CLI, Windows utility, and ABC-01 automatic backup configurator
- DHCP Option 82 for IP address assignment with different policies
- IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
- IEEE 802.3ad, LACP for optimum bandwidth utilization
- Bandwidth management to prevent unpredictable network status
- Multi-port mirroring for online debugging
- Automatic warning by exception through email and relay output
- RMON for proactive and efficient network monitoring
- Automatic recovery of connected device’s IP addresses
- Line-swap fast recovery
Cybersecurity Features
- User passwords with multiple levels of security protect against unauthorized configuration
- SSH/HTTPS is used to encrypt passwords and data
- Lock switch ports with 802.1X port-based network access control so that only authorized clients can access the port
- RADIUS/TACACS+ allows you to manage passwords from a central location
- 802.1Q VLAN allows you to logically partition traffic transmitted between selected switch ports
- Secure switch ports so that only specific devices and/or MAC addresses can access the ports
- Disable one or more ports to block network traffic
- SNMPv3 provides encrypted authentication and access security
Technical Specification
- Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) | 6 |
| 100BaseFX Ports (multi-mode SC connector) | PT-508-MM-SC Series: 2 |
| 100BaseFX Ports (multi-mode ST connector) | PT-508-MM-ST Series: 2 |
| 100BaseFX Ports (single-mode SC connector) | PT-508-SS-SC Series: 2 |
| 100BaseFX Ports (multi-mode LC connector) | PT-508-MM-LC Series: 2 |
| 100BaseFX Ports (single-mode LC connector) | PT-508-SS-LC Series: 2 |
| Standards | IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control |
- Ethernet Software Features
| Filter | 802.1Q, GMRP, GVRP, IGMP v1/v2c, Port-based VLAN, VLAN unaware |
| Industrial Protocols | EtherNet/IP, Modbus TCP |
| Management | Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP |
| MIB | Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB |
| Redundancy Protocols | Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Security | HTTPS/SSL, TACACS+, Port Lock, RADIUS, Rate Limit, SSH |
| Time Management | NTP Server/Client, SNTP, 100BaseFX Single-Mode |
- Switch Properties
| IGMP Groups | 256 |
| MAC Table Size | 8 K |
| Max. No. of VLANs | 64 |
| Packet Buffer Size | 1 Mbits |
| VLAN ID Range | VID 1 to 4094 |
| Priority Queues | 4 |
- Serial Interface
| Console Port | RS-232 (RJ45) |
- Input/Output Interface
| Alarm Contact Channels | Resistive load: 1 A @ 24 VDC |
- Power Parameters
| Connection | 1 removable 5-contact terminal block(s) |
| Input Voltage | PT-508-24/48 Series: Redundant power inputs PT-508-24 Series: 24 VDC (18 to 36 VDC) PT-508-48 Series: 48 VDC (36 to 72 VDC) PT-508--HV Series: 110/220 VAC/VDC (88 to 300 VAC, 85 to 264 VDC) |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Input Current | PPT-508-24 Series: 0.27 A @ 24 VDC PT-508-48 Series: 0.12 A @ 48 VDC PT-508-HV Series: 0.18/0.11 A @ 110/220 VAC, 0.084/0.043 A @ 110/220 VDC |
- Physical Characteristics
| Housing | Aluminum |
| IP Rating | IP40 |
| Dimensions (without ears) | 60 x 160 x 110 mm (2.36 x 6.30 x 4.33 in) |
| Weight | 995 g (2.21 lb) |
| Installation | DIN-rail mounting, DIN-rail mounting (with optional kit) |
- Environmental Limits
| Operating Temperature | -40 to 85°C (-40 to 185°F) Note: Cold start requires minimum of 100 VAC @ -40°C |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMI | EN 55032 Class A, CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs |
| Power Substation | IEC 61850-3, IEEE 1613 |
| Safety | UL 508 |
- MTBF
| Time | 394,238 hrs |
| Standards | Telcordia SR332 |
