Note: This product will be phased out in the near future.

Last orders can be made in August 2024.

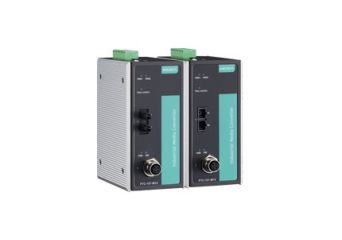

PTC-101-M12

IEC 61850-3 and railway Ethernet-to-fiber media converters

Manufacturer: MOXA

10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
Link Fault Pass-Through (LFPT)
Power failure alarm by relay output (LV model only)
-40 to 85°C operating temperature range
Redundant dual DC power inputs (LV model only)
Integrated high-reliability power supply eliminates the need for external power transformer
Compliant with EN 50121-4
Complies with all EN 50155 mandatory test items

Price from €887.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Models
Accessories
Description
Technical Specification
Download
Recommended Products

PTC-101-M12

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PTC-101-M12-S-SC-LV-T Industrial Media Converter, M12 connector, single mode, SC connector, 20-72 VDC, -40 to 85°C	Out of stock	Warranty:		€887.00 €1,091.01 Login to check your price	Login to check your price	pcs.

PTC-101-M12-S-SC-LV-T

Industrial Media Converter, M12 connector, single mode, SC connector, 20-72 VDC, -40 to 85°C

Availability: Out of stock

Net price:

€887.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PTC-101-M12-S-ST-LV-T Industrial Media Converter, M12 connector, single mode, ST connector, 20-72 VDC, -40 to 85°C	Out of stock	Warranty:		€887.00 €1,091.01 Login to check your price	Login to check your price	pcs.

PTC-101-M12-S-ST-LV-T

Industrial Media Converter, M12 connector, single mode, ST connector, 20-72 VDC, -40 to 85°C

Availability: Out of stock

Net price:

€887.00

Accessories

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
HDR-30-24 DIN rail power supply 30W 24V 1.5A	In stock	Warranty:		€13.40 €16.48 Login to check your price	Login to check your price	pcs. 96 pieces in box

HDR-30-24

DIN rail power supply 30W 24V 1.5A

Availability:

In stock

Net price:

€13.40

Description

The PTC-101 Ethernet-to-fiber media converters convert from 10/100BaseT(X) to 100BaseFX. Models are available with either SC, ST, or LC connectors. The PTC-101 converters eliminate the need for additional wiring, and support IEEE 802.3 and IEEE 802.3u/x protocols with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing to provide a total solution for your industrial Ethernet networks. The PTC-101 is compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.

Technical Specification

Ethernet Interface

10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)	1
100BaseFX Ports (single-mode SC connector)	PTC-101-M12-S-SC Series: 1
100BaseFX Ports (single-mode ST connector)	PTC-101-M12-S-ST Series: 1
Magnetic Isolation Protection	1.5 kV (built-in)
Optical Fiber

Power Parameters

Input Current	150 mA @ 20 to 72 VDC
Input Voltage	20 to 72 VDC
Overload Current Protection	Supported
Power Consumption	150 mA @ 20 to 72 VDC

Physical Characteristics

Housing	Metal
Dimensions	152.15 x 126.46 x 66.65 mm (5.99 x 4.86 x 2.62 in)
Weight	Packaged: 875 g (1.92 lb) Product only: 690 g (1.52 lb)
Installation	DIN-rail mounting
Protection	-CT models: PCB conformal coating

Environmental Limits

Operating Temperature	-40 to 85°C (-40 to 185°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs
Environmental Testing	IEC 60068-2-1 IEC 60068-2-14 IEC 60068-2-2 IEC 60068-2-3
Safety	EN 60950-1, UL 60950-1
Vibration	IEC 60068-2-6
