Seria CSM-G200

Unmanaged 10/100/1000BaseT(X)-to-100/1000BaseSFP slide-in media converter modules for the NRack System™

Manufacturer: MOXA
Manufacturer: MOXA
  • LFP (Link Fault Pass-Through) and FEF (Far End Fault)
  • Two different operation modes: store-and-forward and pass-through
  • Auto-negotiation
  • Plug and play
  • Hot-swappable
  • Supports 10 KB jumbo frames
Price from €273.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €500

See 1 model

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    CSM-G200-1221
    Unmanaged 10/100/1000BaseT(X)-to-100/1000BaseSFP slide-in media converter modules for the NRack System™
    Out of stock Warranty: 60 months
    €273.00
    €335.79
    Login to check your price

Description

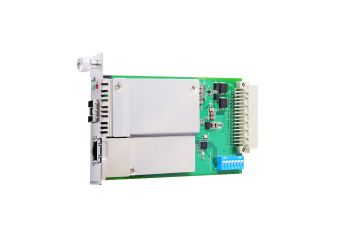

The CSM-G200 slide-in Ethernet-to-fiber media converters are designed for the NRack System™. The module provides media conversion from 10/100/1000BaseT(X) to 100/1000BaseFX (SFP connector), and can be installed in any NRack System™ chassis.

Technical Specification

  • Ethernet Interface
100/1000BaseSFP Ports 1
10/100/1000BaseT(X) Ports (RJ45 connector) 1
Jumbo Frame Size 10 KB
  • Power Parameters
Input Current 185 mA @ 12 VDC
Input Voltage 12 VDC
Overload Current Protection Supported
  • Physical Characteristics
Dimensions 86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in)
Weight Product only: 140 g (0.31 lb)
  • Environmental Limits
Operating Temperature 0 to 55°C (32 to 131°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
EMC EN 55032/35
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF: 30 A/m
Environmental Testing IEC 60068-2-1 IEC 60068-2-14 IEC 60068-2-2 IEC 60068-2-3
Vibration IEC 60068-2-6
  • MTBF
Time 1,579,447 hrs
Standards MIL-HDBK-217F
  • Warranty
Warranty Period 5 years
