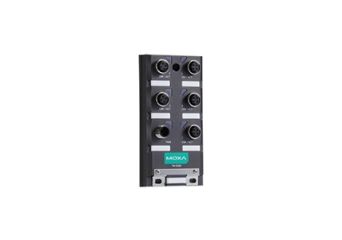

TN-5305

EN 50155 5-port IP67 unmanaged Ethernet switches

Manufacturer: MOXA

10/100BaseT(X), 4-pin M12 (D-coded), F/H duplex mode, and auto MDI/MDI-X connection
IP67-rated housing protection
Power input: 12 to 45 VDC, 18 to 30 VAC
Complies with all EN 50155 mandatory test items
-40 to 75°C operating temperature range (-T models)

In delivery

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Models
Accessories
Description
Technical Specification
Download
Recommended Products

TN-5305

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
TN-5305 Unmanaged Ethernet switch with 5 10/100BaseT(X) ports and with M12 connectors, -25 to 60°C operating temperature	Out of stock	Warranty:

TN-5305

Unmanaged Ethernet switch with 5 10/100BaseT(X) ports and with M12 connectors, -25 to 60°C operating temperature

Availability: Out of stock

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
TN-5305-T Unmanaged Ethernet switch with 5 10/100BaseT(X) ports and with M12 connectors, -40 to 75°C operating temperature	In delivery	Warranty:

TN-5305-T

Unmanaged Ethernet switch with 5 10/100BaseT(X) ports and with M12 connectors, -40 to 75°C operating temperature

Availability: In delivery

Accessories

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CBL-M12(FF5P)/OPEN-100 IP67 1-meter M12-to-5-pin power cable with waterproof 5-pin A-coded M12 connector	Out of stock	Warranty:		€22.00 €27.06 Login to check your price	Login to check your price	pcs.

CBL-M12(FF5P)/OPEN-100 IP67

1-meter M12-to-5-pin power cable with waterproof 5-pin A-coded M12 connector

Availability: Out of stock

Net price:

€22.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CBL-M12D(MM4P)/RJ45-100 IP67 1-meter M12-to-RJ45 Cat-5E UTP Ethernet cable with waterproof 4-pin D-coded M12 connector	Out of stock	Warranty:		€22.00 €27.06 Login to check your price	Login to check your price	pcs.

CBL-M12D(MM4P)/RJ45-100 IP67

1-meter M12-to-RJ45 Cat-5E UTP Ethernet cable with waterproof 4-pin D-coded M12 connector

Availability: Out of stock

Net price:

€22.00

Description

The TN-5305 Series Ethernet switches are IP67-rated for tough industrial applications. By using M12 connectors, you can rest assured that Ethernet cables will connect tightly to the switch, and will be robust enough to protect your applications from external disturbances, such as the vibration and shock encountered in the transportation industry.

The space-saving TN-5305 switches can be mounted virtually anywhere, and wide operating temperature (-40 to 75°C) models are also available for use in the most extreme weather conditions. TN-5305 Series Ethernet switches comply with a portion of EN 50155 specifications, covering operating temperature, power input voltage, surge, ESD, and vibration, making the switches suitable for a variety of industrial applications.

Technical Specification

Ethernet Interface

10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)	5
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control

Power Parameters

Input Current	0.1 A @ 24 VDC, 0.08 A @ 36 VDC
Input Voltage	18 to 30 VAC (47 to 63 Hz), 24 to 36 VDC
Inrush Current (Max.)	0.28 A @ 24 VDC
No. of Power Inputs	1
Operating Voltage	18 to 30 VAC 12 to 45 VDC
Power Connector	M12 A-coded male connector

Physical Characteristics

Housing	Plastic top cover, metal bottom plate
IP Rating	IP67
Dimensions	60 x 125 x 29.6 mm (2.36 x 4.92 x 1.09 in)
Weight	Packaged: 270 g (0.56 lb)
Installation	DIN-rail mounting (with optional kit), Wall mounting

Environmental Limits

Operating Temperature	TN-5305: -25 to 60°C (-13 to 140°F) TN-5305-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Altitude	2000 m

Standards and Certifications

Freefall	IEC 60068-2-32
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Environmental Testing	IEC 60068-2-1, EN 50155 IEC 60068-2-14, EN 50155 IEC 60068-2-2, EN 50155 IEC 60068-2-30, EN 50155
International Approval	RCM
Railway	EN 50121-4, EN 50155
Railway Fire Protection	EN 45545-2
Safety	EN 60950-1, UL 508
Salt Spray Test	IEC 60068-2-11, EN 50155
Shock	IEC 60068-2-27, IEC 61373, EN 50155
Vibration	IEC 60068-2-64, IEC 61373, EN 50155
