8-port entry-level unmanaged Ethernet switches with metal housing
Price from €121.00 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
Manufacturer: MOXA
- Up to 2 Gigabit ports with optional bypass relay function
- Isolated power with 24 to 110 VDC power supply range
- Complies with all EN 50155 mandatory test items
- -40 to 75°C operating temperature range
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTN-5510A-2GTX-WV-TL2 Managed Ethernet switch with 8 10/100BaseT(X) and 2 10/100/1000 Base-T(X) M12 ports, 24 - 110 VDC dual power input, -40 to 75? operation temperatureOut of stock Warranty: TN-5510A-2GTX-WV-TL2 Managed Ethernet switch with 8 10/100BaseT(X) and 2 10/100/1000 Base-T(X) M12 ports, 24 - 110 VDC dual power input, -40 to 75? operation temperatureAvailability: Out of stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTN-5510A-2GLSX-ODC-WV-TL2 Managed Ethernet switch with 8 10/100BaseT(X) and 2 1000 BaseLSX Q-ODC ports, 24 - 110 VDC dual power input, -40 to 75? operation temperatureOut of stock Warranty: TN-5510A-2GLSX-ODC-WV-TL2 Managed Ethernet switch with 8 10/100BaseT(X) and 2 1000 BaseLSX Q-ODC ports, 24 - 110 VDC dual power input, -40 to 75? operation temperatureAvailability: Out of stock-
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCAP-M for M12FFIn stockWarranty: €8.00€9.84Login to check your price CAP-M for M12FFAvailability:In stockNet price:€8.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMetal cap to cover M12-male connectorIn stockWarranty: €8.00€9.84Login to check your price Metal cap to cover M12-male connectorAvailability:In stockNet price:€8.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add1-meter M12-to-RJ45 Cat-5E UTP Ethernet cable with waterproof 4-pin D-coded M12 connectorOut of stock Warranty: €22.00€27.06Login to check your price 1-meter M12-to-RJ45 Cat-5E UTP Ethernet cable with waterproof 4-pin D-coded M12 connectorAvailability: Out of stockNet price:€22.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add1-meter M23 to 6pin power cable with IP67-rate female 6-pin M23 connectorOut of stock Warranty: €114.00€140.22Login to check your price 1-meter M23 to 6pin power cable with IP67-rate female 6-pin M23 connectorAvailability: Out of stockNet price:€114.00
Description

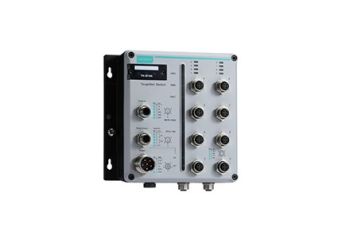

The ToughNet TN-5500A Series M12 managed Ethernet switches are designed for railway applications, such as rolling stock, and wayside installations. The TN-5500A Series switches use M12 and other circular connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. The TN-5500A Series Ethernet switches provide 10 Fast Ethernet M12 ports and 2 ports on the down side to provide the Gigabit Ethernet interface with an optional bypass relay function..
The TN-5500A Series provides a wide power input range of 24/36/48/72/96/110 VDC that allows you to use the same type of power source at different sites around the globe. In addition, the 24 to 110 VDC wide power input range and isolated power increases the reliability of your communications system. In addition, the -40 to 75°C operating temperature and IP54 rated waterproof enclosure allow deployment in harsh environments. TN-5500A Series Ethernet switches are compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.
Additional Features and Benefits
- IPv6 Ready logo awarded (IPv6 Logo Committee certified)
- DHCP Option 82 for IP address assignment with different policies
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
- IGMP snooping and GMRP for filtering multicast traffic
- EtherNet/IP and Modbus TCP industrial Ethernet protocols supported
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
- QoS (IEEE 802.1p/1Q and ToS/DiffServ) allows real-time traffic classification and prioritization
- IEEE 802.3ad, LACP for optimum bandwidth utilization
- SNMPv1/v2c/v3 for different levels of network management
- TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
- RMON for proactive and efficient network monitoring
- Bandwidth management to prevent unpredictable network status
- Lock port allows access by only authorized MAC addresses
- Port mirroring for online debugging
- Automatic warning by exception through email and relay output
- Line-swap fast recovery
- LLDP for automatic topology discovery in network management software
- Configurable by web browser, Telnet/serial console, CLI, and Windows utility
- Loop protection to prevent network loops
- Panel mounting or DIN-rail mounting installation capability
Technical Specification
- Input/Output Interface
| Alarm Contact Channels | 2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC |
- Ethernet Interface
| 10/100/1000BaseT(X) Ports, Q-ODC Fiber Connector | TN-5510A-2GLSX Series: 2 |
| 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector) | 8 |
| Standards | IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseSX/LX/LHX/ZX |
| 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector) | TN-5510A-2GTX Series: 2 |
- Ethernet Software Features
| Broadcast Forwarding | IP directed broadcast, broadcast forwarding |
| Configuration Options | Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility |
| Filter | 802.1Q, GMRP, GVRP, IGMP v1/v2/v3, Port-based VLAN, Static Multicast |
| Industrial Protocols | EtherNet/IP Adapter, Modbus TCP Server (Slave) |
| Management | Back Pressure Flow Control, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, IOxpress, LLDP, Port Mirror, QoS/CoS/ToS, RARP, RMON, SMTP, SNMP Inform, SNMP Trap, Syslog, Telnet, Account Management |
| MIB | Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB |
| Redundancy Protocols | Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, Turbo Ring with DRC |
| Security | Broadcast storm protection, HTTPS/SSL, Local Account Accessibility, TACACS+, Port Lock, RADIUS, Rate Limit, SSH |
| Time Management | IEEE 1588 PTP v1/v2, NTP Server/Client, SNTP |
- Switch Properties
| IGMP Groups | 256 |
| Max. No. of VLANs | 64 |
| VLAN ID Range | VID 1 to 4094 |
- LED Interface
| LED Indicators | STATE, PWR1, PWR2, FAULT, 10/100/1000M |
- Serial Interface
| Console Port | M12 A-coded male connector |
- Power Parameters
| Input Current | 24-110 VDC, 0.5A max. |
| Input Voltage | Redundant dual inputs, 24/36/48/72/96/110 VDC |
| No. of Power Inputs | 2 |
| Operating Voltage | 16.8 to 137.5 VDC |
| Overload Current Protection | Supported |
| Power Connector | M23 connector |
| Reverse Polarity Protection | Supported |
- Physical Characteristics
| Housing | Metal |
| IP Rating | IP54 |
| Dimensions | 185 x 178.1 x 76 mm (7.28 x 7.01 x 2.99 in) |
| Weight | 1,805 g (3.97 lb) |
| Installation | DIN-rail mounting (optional), Wall mounting |
- Environmental Limits
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Altitude | 2000 m |
- Standards and Certifications
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Freefall | IEC 60068-2-31 |
| Radio Frequency | FCC |
| Railway | EN 50121-4, EN 50155 |
| Railway Fire Protection | EN 45545-2 |
| Safety | EN 62368-1 |
| Shock | IEC 60068-2-27, IEC 61373, EN 50155 |
| Vibration | IEC 60068-2-64, IEC 61373, EN 50155 |
| EMC | EN 55032/35 |
- Declaration
| Green Product | RoHS, CRoHS, WEEE |
- MTBF
| Time | TN-5510A-2GTX Series: 863,125 hrs TN-5510A-2GLSX Series: 821,632 hrs |
| Standards | Telcordia SR332 |
