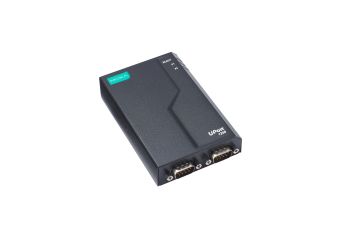

UPort 1200-G2
2-port RS-232/422/485 USB-to-serial converters
- USB 3.2 SuperSpeed capability
- 50 bps to 921.6 kbps baudrate (nonstandard baudrates supported)
- 512-byte on-chip FIFO cache and flow control for enhanced performance
- Double-sided LEDs located at the corners show power, TX, and RX statuses in either directions
- Drivers provided for a broad selection of operating systems, including Windows and Linux
- Latching USB cable design for firmer connection
- Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments
- Serial port with 2 kV isolation protection (for “-I” models)
Price from €159.00 Net price
High price? Log in and buy cheaper
In delivery
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUPort 1250-G22-port RS-232/422/485 USB-to-serial converter, 0 to 60°C operating temperatureIn delivery Warranty: €159.00€195.57Login to check your price UPort 1250-G22-port RS-232/422/485 USB-to-serial converter, 0 to 60°C operating temperatureAvailability: In deliveryNet price:€159.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUPort 1250-G2-T2-port RS-232/422/485 USB-to-serial converter, -40 to 75°C operating temperatureOut of stock Warranty: €198.00€243.54Login to check your price UPort 1250-G2-T2-port RS-232/422/485 USB-to-serial converter, -40 to 75°C operating temperatureAvailability: Out of stockNet price:€198.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUPort 1250I-G22-port RS-232/422/485 USB-to-serial converter with 2 kV isolation protection, 0 to 60°C operating temperatureIn delivery Warranty: €280.00€344.40Login to check your price UPort 1250I-G22-port RS-232/422/485 USB-to-serial converter with 2 kV isolation protection, 0 to 60°C operating temperatureAvailability: In deliveryNet price:€280.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUPort 1250I-G2-T2-port RS-232/422/485 USB-to-serial converter with 2 kV isolation protection, -40 to 75°C operating temperatureOut of stock Warranty: €352.00€432.96Login to check your price UPort 1250I-G2-T2-port RS-232/422/485 USB-to-serial converter with 2 kV isolation protection, -40 to 75°C operating temperatureAvailability: Out of stockNet price:€352.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDK-UP12001 pc of DIN Rail 25x48.3mm with 2 screws (FMS M3X6)Out of stock Warranty: €15.00€18.45Login to check your price DK-UP12001 pc of DIN Rail 25x48.3mm with 2 screws (FMS M3X6)Availability: Out of stockNet price:€15.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDB9 Female to Terminal BlockIn stockWarranty: €10.00€12.30Login to check your price DB9 Female to Terminal BlockAvailability:In stockNet price:€10.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddWK-35-02WK-35-02 Wall Mount Kit Accessory V1.0Out of stock Warranty: €13.00€15.99Login to check your price WK-35-02WK-35-02 Wall Mount Kit Accessory V1.0Availability: Out of stockNet price:€13.00
Description
The UPort® 1200-G2 Series USB-to-serial converters are ideal for laptop or workstation computers that need serial port expansion. They are essential for computers which need to connect different serial devices in the field or need separate interface converters for devices without a standard COM port or DB9 connector. The computers also come with a USB cable that has a latch and screw lock for a more secure connection between the UPort and your computer. The UPort® 1200-G2 Series converts from USB to RS-485. All products are compatible with legacy serial devices and can be used with instrumentation and point-of-sale applications.
Technical Specification
- USB Interface
| USB Standards | USB 3.2 Gen 1 USB 1.1/2.0 compliant |
| Speed | 5 Gbps, 480 Mbps, 12 Mbps |
| No. of USB Ports | 1 |
| USB Connector | USB Type B |
- Serial Interface
| Connector | DB9 male |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| FIFO | 512 bytes |
| Parity | None, Even, Odd, Space, Mark |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms |
| Terminator for RS-485 | 120 ohms |
| Flow Control | RTS/CTS, XON/XOFF |
| RS-485 Data Direction Control | Automatic Data Direction Control (ADDC) |
| Surge | 0.5 kV |
| Isolation | 2 kV (I models) |
| Serial Standards | RS-232/422/485 |
| No. of Ports | 2 |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
- Serial Software Features
| Windows Drivers | Windows 11, 10, 8.1, 8 and 7 Windows Server 2022, 2019, 2016, 2012 R2, 2012 and 2008 R2 |
| Linux Drivers | Kernel 6.x, 5.x and 4.x |
| Mac Drivers | macOS version (Intel 64): 13, 12, 11 and 10.1x |
| Virtual Machine | VMware Fusion (Windows on macOS 13, 12, 11, 10.1x, Intel 64) VMWare ESXi (Linux kernel 4) Parallels Desktop (Windows on macOS 13, 12, 11, 10.1x, Intel 64) |
| Arm®-based Platform Support | Linux kernel 6.x, 5.x and 4.x |
| Android API | Android 3.1.x and later |
- Power Parameters
| Input Voltage | 5 VDC by USB bus power |
| Input Current | UPort 1250-G2 models 320 mA @ USB 3 160 mA @ USB 2 UPort 1250I-G2 models: 400 mA @ USB 3 240 mA @ USB 2 |
- Physical Characteristics
| Housing | Metal |
| IP Rating | IP20 |
| Dimensions | 75.8 x 25.0 x 111.0 mm (2.98 x 0.98 x 4.37 in) |
| Weight | UPort 1250-G2 models: 259 g (0.57 lb) UPort 1250I-G2 models: 263 g (0.58 lb) |
- Environmental Limits
| Operating Temperature | Standard models: 0 to 60°C (32 to 140°F) -T models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 1 kV, Signal: 0.5 kV IEC 61000-4-6 CS: 3 V; 150 kHz to 80 MHz IEC 61000-4-8 PFMF |
| Safety | IEC 62368-1 EN 62368-1 UL 62368-1 (CB) KC |
| Freefall | IEC 60068-2-31 |
| Vibration | IEC 60068-2-6 IEC 60068-2-64 |
| Shock | IEC 60068-2-27 |
- Declaration
| Green Product | RoHS, CRoHS, WEEE |
- MTBF
| Standards | Telcordia Standard SR332 |
| Time | UPort 1250-G2 models: 2,142,392 hrs UPort 1250I-G2 models: 1,793,060 hrs |
