Manufacturer: MOXA
- USB 3.2 SuperSpeed capability
- 512-byte on-chip FIFO cache and flow control for enhanced performance
- Drivers provided for a broad selection of operating systems, including Windows and Linux
- 50 bps to 921.6 kbps baudrate (nonstandard baudrates supported)
- Double-sided LEDs located at the corners show power, TX, and RX statuses in either directions
- Latching USB cable design for firmer connection
- Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments
- Serial port with 2 kV isolation protection (for “-I” models)
Price from €248.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUPort 1410-G24-port RS-232 USB-to-serial convertersOut of stock Warranty: €248.00€305.04Login to check your price UPort 1410-G24-port RS-232 USB-to-serial convertersAvailability: Out of stockNet price:€248.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUPort 1450-G24-port RS-232/422/485 USB-to-serial converterOut of stock Warranty: €301.00€370.23Login to check your price UPort 1450-G24-port RS-232/422/485 USB-to-serial converterAvailability: Out of stockNet price:€301.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUPort 1450-G2-T4-port RS-232/422/485 USB-to-serial converter, -40 to 75°COut of stock Warranty: €378.00€464.94Login to check your price UPort 1450-G2-T4-port RS-232/422/485 USB-to-serial converter, -40 to 75°CAvailability: Out of stockNet price:€378.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUPort 1450I-G24-port RS-232/422/485 USB-to-serial converter, 2 kV isolation protectionOut of stock Warranty: €551.00€677.73Login to check your price UPort 1450I-G24-port RS-232/422/485 USB-to-serial converter, 2 kV isolation protectionAvailability: Out of stockNet price:€551.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUPort 1450I-G2-T4-port RS-232/422/485 USB-to-serial converter, -40 to 75°C, 2 kV isolation protectionOut of stock Warranty: €688.00€846.24Login to check your price UPort 1450I-G2-T4-port RS-232/422/485 USB-to-serial converter, -40 to 75°C, 2 kV isolation protectionAvailability: Out of stockNet price:€688.00
Description
Basic parameters

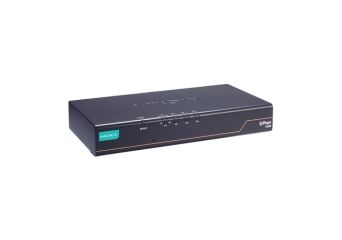

The UPort® 1400-G2 Series USB-to-serial converters are ideal for laptop or workstation computers that need serial port expansion. They are essential for computers which need to connect different serial devices in the field or need separate interface converters for devices without a standard COM port or DB9 connector. The computers also come with a USB cable that has a latch and screw lock for a more secure connection between the UPort and your computer. The UPort® 1400-G2 Series converts from USB to RS-232/422/485. All products are compatible with legacy serial devices and can be used with instrumentation and point-of-sale applications.
Technical Specification
- USB Interface
| USB Standards | USB 3.2 Gen 1 USB 1.1/2.0 compliant |
| Speed | 5 Gbps, 480 Mbps, 12 Mbps |
| No. of USB Ports | 1 |
| USB Connector | USB Type B |
- Serial Interface
| Connector | DB9 male |
| No. of Ports | 4 |
| Serial Standards | RS-232: UPort 1410-G2RS-232/422/485: All other models |
| FIFO | 512 bytes |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Parity | None, Even, Odd, Space, Mark |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Flow Control | RTS/CTS, XON/XOFF |
| RS-485 Data Direction Control | Automatic Data Direction Control (ADDC) |
| Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms |
| Terminator for RS-485 | 120 ohms |
| Surge | 0.5 kV |
| Isolation | 2 kV (I models) |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
- Serial Software Features
| Windows Drivers | Windows 11, 10, 8.1, 8 and 7Windows Server 2022, 2019, 2016, 2012 R2, 2012 and 2008 R2 |
| Linux Drivers | Kernel 6.x, 5.x and 4.x |
| Mac Drivers | macOS version (Intel 64): 13, 12, 11 and 10.1x |
| Virtual Machine | VMware Fusion (Windows on macOS 13, 12, 11, 10.1x, Intel 64)VMWare ESXi (Linux kernel 4)Parallels Desktop (Windows on macOS 13, 12, 11, 10.1x, Intel 64) |
| Arm®-based Platform Support | Linux kernel 6.x, 5.x and 4.x |
| Android API | Android 3.1.x and later |
- Power Parameters
| Input Voltage | 5 VDC by USB bus power or 12 to 48 VDC by external power adaptor |
| Input Current | UPort 1410-G2: 183 mA @ USB 2.0, 370 mA @ USB 3.2, 200 mA @ 12 VDCUPort 1450-G2 models: 266 mA @ USB 2.0, 452 mA @ USB 3.2, 240 mA @ 12 VDC UPort 1450I-G2 models: 445 mA @ USB 2.0, 633 mA @ USB 3.2, 340 mA @ 12 VDC |
- Physical Characteristics
| Housing | Metal |
| Dimensions | 185 x 30 x 90.6 mm (7.28 x 1.18 x 3.57 in) |
| Weight | UPort 1410-G2: 359 g (0.79 lb)UPort 1450-G2 models: 373 g (0.82 lb) UPort 1450I-G2 models: 379 g (0.84 lb) |
| IP Rating | IP20 |
- Environmental Limits
| Operating Temperature | Standard models: 0 to 60°C (32 to 140°F) -T models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 1 kV, Signal: 0.5 kV kV IEC 61000-4-6 CS: 3 V; 150 kHz to 80 MHz IEC 61000-4-8 PFMF |
| Safety | IEC 62368-1 EN 62368-1 UL 62368-1 (CB) KC |
| Green Product | RoHS, CRoHS, WEEE |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 IEC 60068-2-64 |
| Freefall | IEC 60068-2-31 |
- MTBF
| Standards | Telcordia Standard SR332, Telcordia Issue 2 |
| Time | UPort 1410-G2: 1,846,458 hrsUPort 1450-G2 models: 1,431,860 hrs UPort 1450I-G2 models: 1,140,587 hrs |
