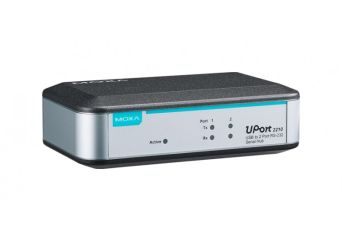

UPort 2210

2-port RS-232 USB-to-serial converters

Manufacturer: MOXA

Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates
921.6 kbps maximum baudrate for fast data transmission
Drivers provided for Windows and Linux
Driver support for MAC OS
Supports fixed-base COM Utility for setting the initial extended COM port number
LEDs for easy monitoring

Price from €158.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Product intended for professional use only

Models
Description
Technical Specification
Download
Recommended Products

UPort 2210

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
UPort 2210 2 port USB-to-Serial Converter, RS-232	Out of stock	Warranty:		€158.00 €194.34 Login to check your price	Login to check your price	pcs.

UPort 2210

2 port USB-to-Serial Converter, RS-232

Availability: Out of stock

Net price:

€158.00

Description

The UPort® 2210 USB-to-serial converters allow you to connect two or four RS-232 devices to your laptop or workstation through the USB port. The UPort® 2210 are cost-effective solutions for both new and legacy RS-232 devices, and they are perfect for mobile, instrumentation, and point-of-sale applications.

Technical Specification

USB Interface

Speed	12 Mbps, 480 Mbps
USB Connector	USB Type B
USB Standards	USB 1.1/2.0 compliant

Serial Interface

Serial Standards	RS-232
No. of Ports	2
Connector	DB9 male
Baudrate	50 bps to 921.6 kbps
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	None, RTS/CTS, XON/XOFF

Serial Signals

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Power Parameters

Input Voltage	5 VDC
Input Current	140 mA @ 5 VDC

Physical Characteristics

Housing	Polycarbonate (PC)
Dimensions	70 x 35 x 120 mm (2.76 x 1.38 x 4.72 in)
Weight	Packaged: 325 g (0.72 lb) Product only: 120 g (0.26 lb)

Environmental Limits

Operating Temperature	0 to 55°C (32 to 131°F)
Storage Temperature (package included)	-20 to 75°C (-4 to 167°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class B
EMS	IEC 61000-4-2 ESD: Contact: 8 kV; Air: 4 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
Safety	UL 60950-1
Vibration	IEC 60068-2-6
Freefall	IEC 60068-2-32
