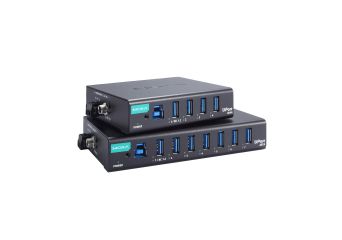

UPort 400A

4 and 7 industrial USB 3.2 hubs

Manufacturer: MOXA

USB-IF certification
USB 3.2 SuperSpeed capability
Latching USB cable design for firmer connection
Comprehensive diagnostic LEDs
Dual power inputs (power jack and terminal block)
Metal housing DIN-rail housing and wall-mountable housing

Price from €277.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 4 models

Promocja cenowa na model HDR-15-5

Models
Description
Technical Specification
Download
Recommended Products

UPort 400A

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
UPort 407A 7-port industrial-grade USB 3.2 hubs	Out of stock	Warranty:		€335.00 €412.05 Login to check your price	Login to check your price	pcs.

UPort 407A

7-port industrial-grade USB 3.2 hubs

Availability: Out of stock

Net price:

€335.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
UPort 407A-T 7-port industrial-grade USB 3.2 hubs, -40 do 85°C	Out of stock	Warranty:		€438.00 €538.74 Login to check your price	Login to check your price	pcs.

UPort 407A-T

7-port industrial-grade USB 3.2 hubs, -40 do 85°C

Availability: Out of stock

Net price:

€438.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
UPort 404A 4-port industrial-grade USB 3.2 hubs	Out of stock	Warranty:		€277.00 €340.71 Login to check your price	Login to check your price	pcs.

UPort 404A

4-port industrial-grade USB 3.2 hubs

Availability: Out of stock

Net price:

€277.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
UPort 404A-T 4-port industrial-grade USB 3.2 hubs, -40 do 85°C	In stock	Warranty:		€374.00 €460.02 Login to check your price	Login to check your price	pcs.

UPort 404A-T

4-port industrial-grade USB 3.2 hubs, -40 do 85°C

Availability:

In stock

Net price:

€374.00

Description

The UPort 400A USB 3.2 series can expand a USB port to 4 or 7 ports. The device is designed to provide true USB 3.2 Gen 1 SuperSpeed 5 Gbps data transfer rates (UPort 400A has received USB-IF SuperSpeed certification) through every port, every time. In addition, the hubs are fully compliant with the USB plug-and-play specification and provide full 900 mA power per port to ensure proper operation of USB devices. The UPort 400A hubs support a power range of 12 to 48 VDC, making them ideal for mobile applications.

Technical Specification

USB Interface

USB Standards	USB 3.2 Gen 1 USB 1.1/2.0 compliant
Speed	5 Gbps
USB Connector	UFP: type BDFP: type A
No. of USB Ports	8 (UFP: 1, DFP 7) for UPort 407A models 5 (UFP: 1, DFP 4) for UPort 404A models

Power Parameters

Input Voltage	12 to 48 VDC No. of power inputs: 2
Power Connector	Power jack 3-pin terminal block
Reverse Polarity Protection	Supported
Input Current	UPort 407A Models: 4.75A @ 12 VDC UPort 404A Models: 2.8A @ 12 VDC
Output Power Rating	Port 1: 900 mA / 1500 mA @ 5 VDC, BC 1.2 compliant Rest of ports: 900 mA @ 5 VDC

Physical Characteristics

Housing	Metal
Dimensions	UPort 407A models: 80 x 27 x 140 mm (3.15 x 1.06 x 5.51 in) UPort 404A models: 85 x 27 x 100 mm (3.35 x 1.06 x 3.94 in)
Weight	UPort 407A models: 350 g (0.77 lb) UPort 404A models: 264 g (0.58 lb)
Installation	Wall mounting (with optional kit) DIN-rail mounting (with optional kit)

Environmental Limits

Operating Temperature	Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included)	Standard Models: -20 to 75°C (-4 to 167°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

EMC	EN 55032/35
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m IEC 61000-4-8 PFMF
Safety	EN 62368-1 UL 62368-1 KC
Environmental Testing	IEC 60068-2-1
Freefall	IEC 60068-2-34
