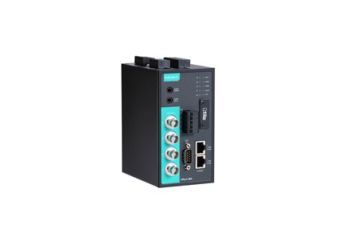

Vport 464

Superior video performance, 4-channel industrial video encoders

Manufacturer: MOXA

Each channel supports 2 D1 30 fps streams simultaneously, or merge 1 quad stream 30 fps image into 4 channels
Video latency under 200 ms
2 Ethernet ports for cascading or Ethernet port redundancy
DynaStream™ for optimized network efficiency
ONVIF support for standardization and interoperability
Local storage capability with microSD card slot
Industrial design with -40 to 75°C operating temperature

Price from €1,557.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Product intended for professional use only

Models
Accessories
Description
Technical Specification
Download
Recommended Products

Vport 464

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
VPort 464 4-channel H.264/MJPEG Industrial Video Encoder, 2 10/100/1000BaseT(X) Ethernet port, -25 to 60°C	Out of stock	Warranty:		€1,557.00 €1,915.11 Login to check your price	Login to check your price	pcs.

VPort 464

4-channel H.264/MJPEG Industrial Video Encoder, 2 10/100/1000BaseT(X) Ethernet port, -25 to 60°C

Availability: Out of stock

Net price:

€1,557.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
VPort 464-T 4-channel H.264/MJPEG Industrial Video Encoder, 2 10/100/1000BaseT(X) Ethernet port, -40 to 75°C	Out of stock	Warranty:		€1,687.00 €2,075.01 Login to check your price	Login to check your price	pcs.

VPort 464-T

4-channel H.264/MJPEG Industrial Video Encoder, 2 10/100/1000BaseT(X) Ethernet port, -40 to 75°C

Availability: Out of stock

Net price:

€1,687.00

Accessories

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
HDR-30-24 DIN rail power supply 30W 24V 1.5A	In stock	Warranty:		€12.50 €15.38 Login to check your price	Login to check your price	pcs. 96 pieces in box

HDR-30-24

DIN rail power supply 30W 24V 1.5A

Availability:

In stock

Net price:

€12.50

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
RK-4U 19" Rackmont set	In stock	Warranty:		€172.00 €211.56 Login to check your price	Login to check your price	pcs.

RK-4U

19" Rackmont set

Availability:

In stock

Net price:

€172.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
WK-46/Wall Mounting Kit Wall Mounting Kit	Out of stock	Warranty:		€6.00 €7.38 Login to check your price	Login to check your price	pcs.

WK-46/Wall Mounting Kit

Wall Mounting Kit

Availability: Out of stock

Net price:

€6.00

Description

The VPort 464 4-channel industrial video encoder uses the H.264 video compression algorithm to provide the best video quality on the market, but with a smaller bandwidth requirement than other video compression standards. In addition, to meet various requirements, each channel of the VPort 464 can support 2 video streams simultaneously or you can merge all 4 channels into 1 quad view stream using H.264 and MJPEG compression formats, providing greater flexibility for a variety of uses, including viewing, recording, and analysis. The rugged industrial design, which includes a -40 to 75°C operating temperature, IP30 protection, and industrial certifications, make the VPort 464 suitable for harsh environments.

The VPort 464 comes with two Gigabit Ethernet ports and supports cascade mode and network redundancy. In addition, Moxa’s innovative DynaStream™ technology lets you change the video frame rate automatically, allowing you to control your network bandwidth budget and simplify network system management. The CBR Pro™ function guarantees the lowest packet loss for limited bandwidth transmissions to ensure that images will not exhibit the mosaic effect.

Technical Specification

Memory

microSD Slot

SDXC

Input/Output Interface

Digital Input Channels	4
Digital Inputs	+13 to +30 V for state 1 -30 to +1 V for state 0 Max. input current: 8 mA
Relay Channels	2
Contact Current Rating	Resistive load: 1 A @ 24 VDC
Connector	Terminal block

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

Ethernet Software Features

Protocols

TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, Modbus TCP, HTTPS, 802.1X, NTCIP

Security Functions

Password	User-level password protection
Filter	IP address
Authentication	802.1X
Encryption	HTTPS

LED Interface

LED Indicators

STAT: Indicates if system is booted up properly or not
Power 1: Power 1 on/off
Power 2: Power 2 on/off
FAULT: Can be configured to correspond to system alarm, power failure, or disconnected network
Video: Video input signal
PTZ: Indicates if PTZ or COM port data has been transmitted
SD: Indicates if SD card was mounted successfully
Network: 10 Mbps or 100 Mbps

Serial Interface

PTZ Port	1, RS-232 or RS-422/485 port, terminal block connector, 115.2 kbps
COM Port	1, RS-232 or RS-485 port, DB9 male connector, 115.2 kbps
Console Port	1 RS-232 port, 10-pin RJ45 (115200, n, 8, 1)

Power Parameters

No. of Power Inputs	2
Input Voltage	Redundant dual inputs
Operating Voltage	12 to 32 VDC, 18 to 30 VAC
Input Current	0.5 A @ 24 VDC 0.83 A @ 24 VAC
Power Connector	2-pin terminal block

Video Interface

Video Compression	H.264 (ISO/IEC 14496-10) or MJPEG
Video Input	4, BNC connector (1.0 Vpp, 75 ohm)
Video Output	via Ethernet
Video Streams	2 independent H.264 or MJPEG video streams 1 quad (4-channel images) stream
NTSC/PAL	Auto-sensing or manual
Video Resolution and FPS (frames per second)
Video Viewing	DynaStream™ support for changing the video frame rate automatically CBR Pro™ for good image quality in limited bandwidth transmissions Adjustable image size and quality Timestamp and text overlay OSD (On Screen Display) position adjustable Maximum of 5 simultaneous unicast connections, 50 multicast clients Image tuning control: brightness, contrast, saturation, sharpness, noise reduction

Audio Interface

Audio Inputs	1 Line-in or MIC-in with 3.5 mm phone jack
Audio Outputs	1 Line-out, with 3.5 mm phone jack
Audio Format	Mono, PCM (G.711)

Camera Software Development

VPort SDK PLUS	Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers
Video Standards	ONVIF Profile S

Camera PAN/TILT/ZOOM

PTZ Camera Control	Via PTZ port or COM port
PTZ Control Functions	Pan, tilt, zoom, focus, move speed, preset position (max. 128 positions)
PTZ Function Updates	Driver upload supported
Protocols	Pelco D, Pelco P, Custom Camera

Camera Alarm Software Features

Intelligent Video	Camera tampering detection
Video Motion Detection	3 independently configurable areas
Scheduling	Daily repeat timing schedule
Imaging	JPEG snapshots for pre/trigger/post alarm images
Custom Alarms	HTTP event servers for setting customized alarm actions
Email/FTP Messaging	Automatic transfer of stored images via email or FTP as event-triggered actions
Pre-Alarm Buffer	50 MB video buffer for JPEG snapshot images
Video Recording	Event recordings stored on the SD card

Software Requirements

Memory Size	1 GB
Operating System	Windows 7 or above
Browser	Internet Explorer 9.x or above
Multimedia	DirectX 9.0C or above

Physical Characteristics

Housing	Metal
Dimensions	80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in)
Weight	1130 g (2.49 lb)
Installation	DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating Temperature	Standard Models: -25 to 60°C (-13 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Altitude	2000 m

Standards and Certifications

EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Freefall	IEC 60068-2-31
Safety	UL 60950-1
Shock	IEC 60068-2-27
Vibration	IEC 60068-2-6
