Industrial stepper motor
Price from €32.00 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
Price from €77.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddBSD 02BSD stepper drive (24/48V - 2,2A), step&dir control, open frame, AMP connectorOut of stock Warranty: €77.00€94.71Login to check your price BSD 02BSD stepper drive (24/48V - 2,2A), step&dir control, open frame, AMP connectorAvailability: Out of stockNet price:€77.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddBSD 02.VBSD stepper drive (24/48V - 2,2A), step&dir control, open frame, screw-type connectorIn stockWarranty: €79.00€97.17Login to check your price BSD 02.VBSD stepper drive (24/48V - 2,2A), step&dir control, open frame, screw-type connectorAvailability:In stockNet price:€79.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddBSD 02.SBSD stepper drive (24/48V - 2,2A), step&dir control, open frame, solder pin connectorOut of stock Warranty: €79.00€97.17Login to check your price BSD 02.SBSD stepper drive (24/48V - 2,2A), step&dir control, open frame, solder pin connectorAvailability: Out of stockNet price:€79.00
Useful products
Industrial stepper motor
Price from €31.00 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
Industrial stepper motor
Price from €33.00 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
Industrial stepper motor
Price from €37.00 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
Description

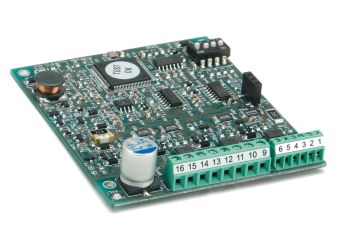

New series of microstep stepping motor drives specifically developed for small and mid-size stepping motors. Ultra-compact and optimized design to reduce space and cost, combined with Adaptive Microstepping technology ensuring noise and vibration suppression.
Target: simple and effective motion control solutions requiring low power, high precision, smoothness of movement and low acoustic noise.
Ideal solution to replace integrated circuits and self-made, low power drives. The perfect choice for small routers, medical, 3D printers and all types of compact machines.
Highlights:
- Full digital microstepping drive.
- Adaptive microstepping up to 3.200 step/rev.
- Intelligent management of the current profile that achieves good results in terms of smoothness of movement, low noise and vibration control.
- A highly sophisticated control system, preserving anyhow the traditional ease of use of R.T.A. drives.
Technical Specification
| Voltage | 24-48 VDC |
| Current (A) | 0,7 - 2,2 |
| Microstepping (step/rev) | 400, 800, 1600, 3200 |
| Type | Step&Direction Advanced |
| Dimensions (mm) | 78 x 68 x 21 |
| Connector | AMP/Screw-type/Solder pin |
| Functions |
Automatic current reduction at motor standstill. Management of the current profile setting by means of a dip-switch. Electronic damping facility for further acoustic noise and mechanic vibrations reduction. |
| Protections |
Protection against under-voltage and over-voltage. |
| Warranty |
24 months |
