Industrial stepper motor
Price from €325.00 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
Price from €346.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddX-PLUS B4.1X-PLUS stepper drive (230VAC - 4A), step&dir control, metallic boxIn stockWarranty: €452.00€555.96Login to check your price X-PLUS B4.1X-PLUS stepper drive (230VAC - 4A), step&dir control, metallic boxAvailability:In stockNet price:€452.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddX-PLUS C4.1X-PLUS stepper drive (230VAC - 4A), step&dir control, metallic box, ULOut of stock Warranty: €519.00€638.37Login to check your price X-PLUS C4.1X-PLUS stepper drive (230VAC - 4A), step&dir control, metallic box, ULAvailability: Out of stockNet price:€519.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddX-PLUS S4.1X-PLUS stepper drive (230VAC - 4A), step&dir control, metallic box, UL, STOOut of stock Warranty: €502.00€617.46Login to check your price X-PLUS S4.1X-PLUS stepper drive (230VAC - 4A), step&dir control, metallic box, UL, STOAvailability: Out of stockNet price:€502.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddX-PLUS L2X-PLUS stepper drive (230VAC - 2.5A), step&dir control, metallic boxIn stockWarranty: €346.00€425.58Login to check your price X-PLUS L2X-PLUS stepper drive (230VAC - 2.5A), step&dir control, metallic boxAvailability:In stockNet price:€346.00
Useful products
Industrial sterpper motor
Price from €310.00 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
Description

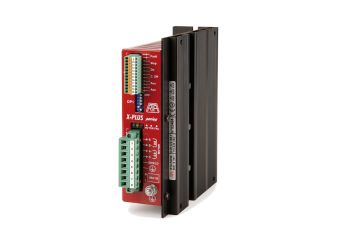

New series bipolar microstep stepping motor drive with power input directly from the main AC supply (110 VAC to 230 VAC), with STO function (only S4 version), specifically developed for applications requiring high performance with reduced acoustic noise and low vibrations. UL Listed
Target: advanced applications requiring high precision, low noise and smoothness of movement.
Highlights:
- STO [SIL3] function (only S4).
- Error Detection Monitor (only S4).
- Full digital microstepping drive.
- Adaptive microstepping up to 3,200 step/rev.
- Intelligent management of the current profile that achieves good results in terms of smoothness of movement, low noise and vibration control.
- A highly sophisticated control system, preserving anyhow the traditional ease of use of R.T.A. drives.
Technical Specification
| Voltage | 110-230 VAC |
| Current (A) | 1,4 - 2,5 / 2,4 - 4 |
| Microstepping (step/rev) | 400, 800, 1600, 3200 |
| Type | Step&Direction Advanced |
| Dimensions (mm) | 152 x 129 x 46(30) |
| Connector | plug-in |
| Functions |
Automatic current reduction at motor standstill. Electronic damping facility for further acoustic noise and mechanic vibrations reduction. Maximum compactness. Optoinsulated inputs to ensure best EM noise immunity. External fans not needed. Coupling with stepping motors rated for high voltage and equivalent or bigger than NEMA 34 is mandatory. |
| Protections |
Protection against under-voltage and over-voltage. |
| Warranty |
24 months |
