Description

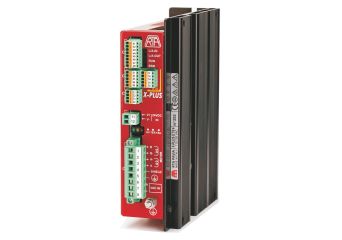

New series of stepping motor drives with Modbus interface, direct input from the main AC power supply and STO function. Direct connection from the main AC power supply (110 Vac to 230 Vac). Auto-Sync function available
Highlights:
- Communication by means of Modbus TCP/IP interface
- Modes of operation: PROFILE POSITION, PROFILE VELOCITY and HOMING
- Full digital microstepping drive
- Wide range of SANYO DENKI stepping motors to be coupled with: holding torque up to 9,2 Nm and flange size up to 86 mm
- Easy setup by RTA Modbus configurator software
- UL/CSA
Technical Specification
| Voltage | 110-230 VAC |
| Current (A) | 4 |
| Type | Modbus TCP/IP |
| Dimensions (mm) | 169 x 129 x 46 |
| Connector | plug-in |
| Functions |
Electronic damping facility for further acoustic noise and mechanic vibrations reduction. External fans no needed. Motor current overboost. Different variety of HOMING operation modes. Encoder feedback |
| Protections |
Protection against under-voltage and over-voltage. |
| Warranty |
24 months |
