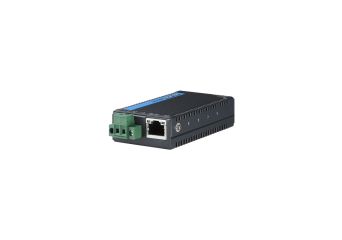

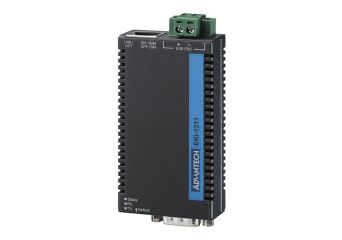

EKI-1211

1-Port RS-232/422/485 Modbus Gateway

Manufacturer: Advantech
Manufacturer: Advantech
  • 1 x 10/100 Mbps Ethernet port
  • Integrates Modbus TCP and Modbus RTU/ASCII networks
  • Baud rate: supports up to 230.4 Kbps
  • Supports up to 16 connections per serial port under Modbus master mode and 32 sessions under Modbus slave mode
  • Built-in 8-kV ESD protection for all serial signals
  • Software-selectable RS-232/422/485-2w/485-4w communication
  • Supports 32/64-bit Windows 2000/XP/Vista/7/8/8.1/10, Windows Server 2003/2008/2012, and Linux

Price from €198.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Models

Accessories

Description

The EKI-1200 series Modbus gateways are bi-directional gateways for integrating new and existing Modbus/RTU and Modbus/ASCII serial devices to newer TCP/IP networked-based devices. The EKI-1211 feature one independent Ethernet ports and MAC address. It provides a simple and cost-effective way to bring remote management and data accessibility to thousands of devices that cannot otherwise connect to a network. The EKI-1200 series allow users to select master or slave operation mode for each serial port. In addition to allowing an Ethernet master to control serial slaves, they also allow serial masters to control Ethernet slaves.
