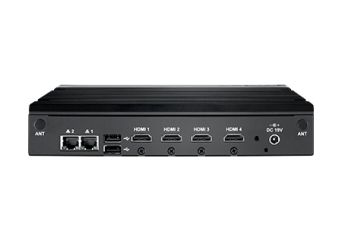

AIR-100
Edge AI Signage System with Intel Atom E3950 and One Intel MA2485 VPU
Manufacturer: Advantech
Manufacturer: Advantech
- Intel Atom E3950
- Intel Movidius Myriad X MA2485 VPU x1 Built in
- Integrated Nvidia GeForce GT1030 graphics for ultra HD playback
- Intel OpenVINO toolkit supported
- 1 x 204-pin SO-DIMM DDR3L 4GB memory (-20~85°C) built in
- 1 x 64GB SSD built-in
- 4 x independent HDMI outputs
- Reserve TPM 2.0 for security application
- Signage content management software built-in
- Integrated with Edge AI Suite
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Description
Technical Specification
| AIR-100 (EN) | |
| Processor | |
| CPU | Intel Atom x7-E3950 |
| System Chipset | Integrated in CPU |
| L2 Cache | 2 MB |
| BIOS | AMI uEFI 64Mbit |
| Memory | |
| Technology | 2 x DDR3L 204-pin DIMM |
| Default (Built-in) | 4GB |
| Display | |
| Chipset | NVIDIA GeForce GT 1030 |
| Memory Size | 2GB GDDR5 |
| Resolution | HDMI 2.0: up to 3840 x 2160 @ 60Hz ; HDMI 1.4: up to 3840 x 2160 @ 30Hz (CEC support) |
| Output | 2 x HDMI 1.4, 2 x HDMI 2.0 |
| Video Format | Decode for H.264,VC-1,WMV9,H.265/HEVC,VP8,VP9,JPEG/MJPEG,MPEG2(only for Yocto project Linux) ; Encode for H.264,MVC,WMV9,H.265/HEVC,VP8,VP9,JPEG/MJPEG |
| Storage | |
| SSD | 64G SATA III SSD Built In |
| Ethernet | |
| Interface | Gigabit LAN Controller |
| Controller | 1 x Intel I211-AT, 1 x Realtek 8111G |
| I/O Interface | |
| LAN | 1 |
| USB 2.0 | 2 |
| USB 3.0 | 2 |
| Audio | 1x audio phone jack for Mic-in, 1x SPDIF, supports jack sense via OS setting |
| Serial | 1 x COM (RS-232) |
| Mini-PCIe (Internal) | 1 x Full Size MiniPCIe support mSATA; w/SIM holder, support WWAN module (USB interface) |
| Power Input | 1 (DC-in Jack) |
| Power Requirement | |
| Input Voltage | 19V DC-in (ATX/AT mode, default ATX) |
| Watchdog Timer | |
| Output | Interrupt, system reset |
| Psychical Characteristics | |
| Mounting | Easy mounting kits for LCD or Plasma |
| Dimensions (W x D x H) | 220 x 40 x 150 mm |
| Weight | 1.7 kg |
| Environment | |
| Operational Tempeature | 0 ~ 50° C (32 ~ 122° F) w/ 0.7m/s airflow |
| Relative Humidity | 95% @ 40° C (non-condensing) |
| Software Development Kit | |
| Operating System | Windows 10 (64bit) |
| Linux | by Project support |
| Certification | |
| Electromagnetic | CE, FCC Class B, BSMI |
| Safety Certification | UL, CB, CCC, BSMI |
