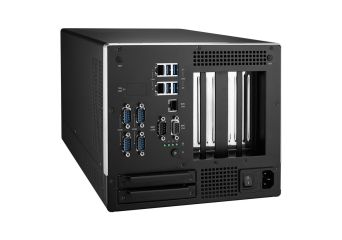

ARK-7060

Intel® 2nd Gen. Xeon® D-1700 Extreme Performance Box PC with 3 Expansion Slots

  • Powered by Intel® 2nd Gen. Xeon® D-1700 series processor up to 10 cores
  • 4x DDR4 SO-DIMM sockets support ECC/non-ECC memory up to 128GB
  • Versatile expansion options with PCI, PCIex4, PCIex16, M.2 B Key and E key
  • Support PCIex16 high performance graphic card up to 350W
  • 2x 10GbE port for fast data communication (optional)
  • Up to 4 x 2.5" SATAIII HDD bay
  • IPMI 2.0-compliant management with reliability and security enhancements
Product out of stock

Free shipping from €300

Promocja cenowa na model HDR-15-5

Product intended for professional use only
ARK-7060

ARK-7060

Description

Intel® 2nd Gen. Xeon® D-1700 Extreme Performance Box PC with 3 Expansion Slots

Technical Specification

  ARK-7060-U0A1 ARK-7060-U4A1
CPU Xeon D-1746TER, 10 cores, 2.0 GHz, up to 3.1 GHz Xeon D-1715TER, 4 cores, 2.4 GHz, up to 3.5 GHz
Memory Up to 128GB SODDR4
VGA (DSub) 1x
HDMI -
Audio -
Gigabit Ethernet 2x GbE LAN
Slot 2,5" HDD 2x swappable SATAIII HDD, RAID 0/1 (max. 15mm)
Slot mSATA -
Slot M.2  1x M.2 B Key 2230/2242/2280 support SIM holder #1
 1x M.2 E Key 2230 for WiFi Module #1
Add-on Card Slot 1x PCIex4 (Max. card size 110mm(H) x 180mm(L))
1x PCI, (Max. card size 110mm(H) x 180mm(L))
1x PCIex16, (Max. card size 130mm(H) x 320mm(L) x 3-slot(W))
USB 3.0 4x
USB 2.0 -
RS-232 -
RS-232/422/485 4x
Slot miniPCIe -
TPM TPM 2.0 (Support by optional AMO-I029)
Working temperature -10 ~ 50°C (With extended temp peripherals)
