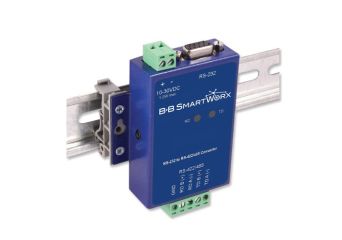

BB-SCP311T-DFTB3

Model SCP311T-DFTB3 serial converter is compact and rugged, designed and tested to meet heavy industrial EMC standards. The RS-232 signal is connected through a female DB9 connector. The RS-422/485 (2-wire and 4-wire) signal is connected through a removable terminal block, making wiring easy. Power is connected through a two-position, removable terminal block. A 10-30VDC external power source is required (not included, sold separately). Bit-wise enabled circuitry automatically detects the character time-out eliminating the need to set DIP switches for the baud rate.Model SCP311T-DFTB3 offers 2 kV isolation plus a -40 to 80°C wide operating temperature. This rugged model is an excellent investment for protecting your expensive control equipment.

• Convert RS-232 data signals to RS-422/485
• 2 kV optical isolation on input/output; ESD protection (8kV contact, 15kV air)
• Data rate: up to 460.8 kbps (bit-wise enable)
• -40 to +80°C wide operating temperature
• Rugged metal panel mount case (DIN rail adapters sold separately)
• 10-30 VDC external power source (not included, sold separately)
• UL Listed
